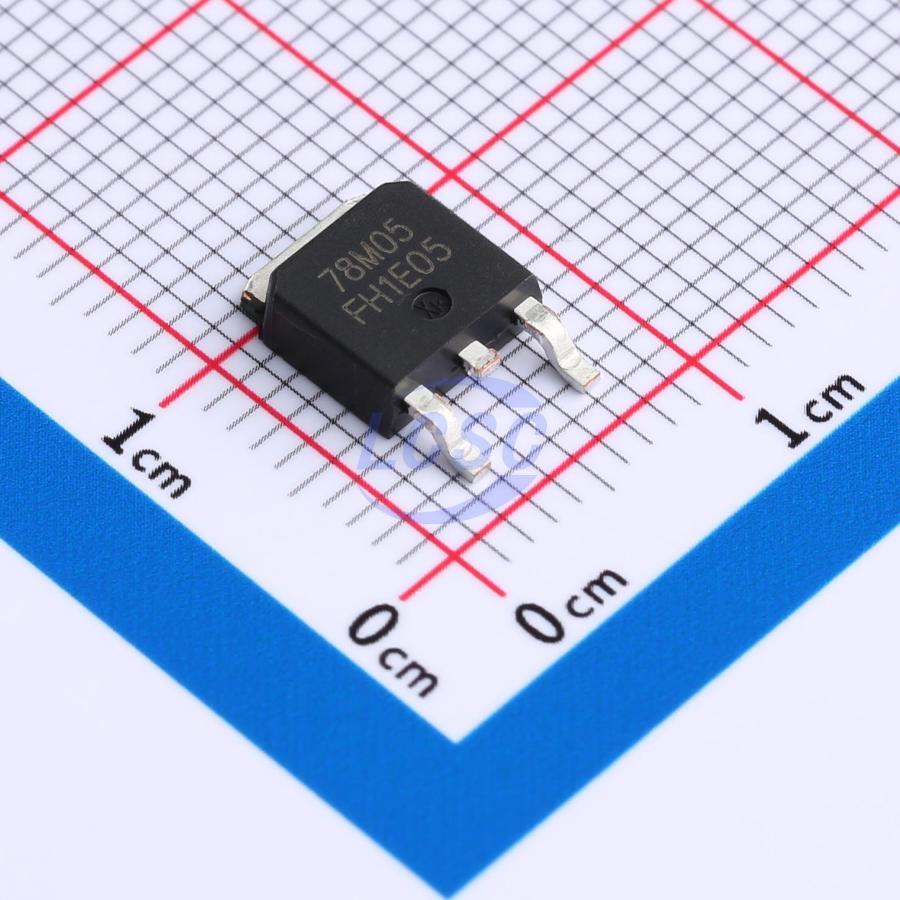

78M05
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252
TO-252ROHS CompliantActive
Three-terminal fixed voltage regulator
- Manufacturer
- Minos
- Manufacturer part #
- 78M05
- Store part #
- C5240688
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,315 in stock
#C5240688
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.33 | ₹61.65 |
| 50+ | ₹9.98 | ₹499.00 |
| 150+ | ₹8.80 | ₹1,320.00 |
| 500+ | ₹7.91 | ₹3,955.00 |
| 2,500+ | ₹6.14 | ₹15,350.00 |
| 5,000+ | ₹5.78 | ₹28,900.00 |
5 × ₹12.33
₹61.65
excl. GST
₹72.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78M05
₹61.65 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 500mA
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.44 g
Overview
The 78M05 series are 3-terminal positive voltage regulators in a TO-252 package, offering multiple fixed output voltages for a wide range of applications. Built-in overcurrent, thermal, and overload protection circuits are included. With a heatsink attached, output current can reach 0.5A. Although designed as fixed voltage regulators, external components can be used to obtain different voltages and currents.
Applications
- Fixed output voltage regulator
- Constant current source
- Output voltage boosting circuit
Key features
- Output current up to 0.5A
- Output voltage: 5V
- Thermal shutdown protection
- Short-circuit protection
- Output transistor SOA protection
