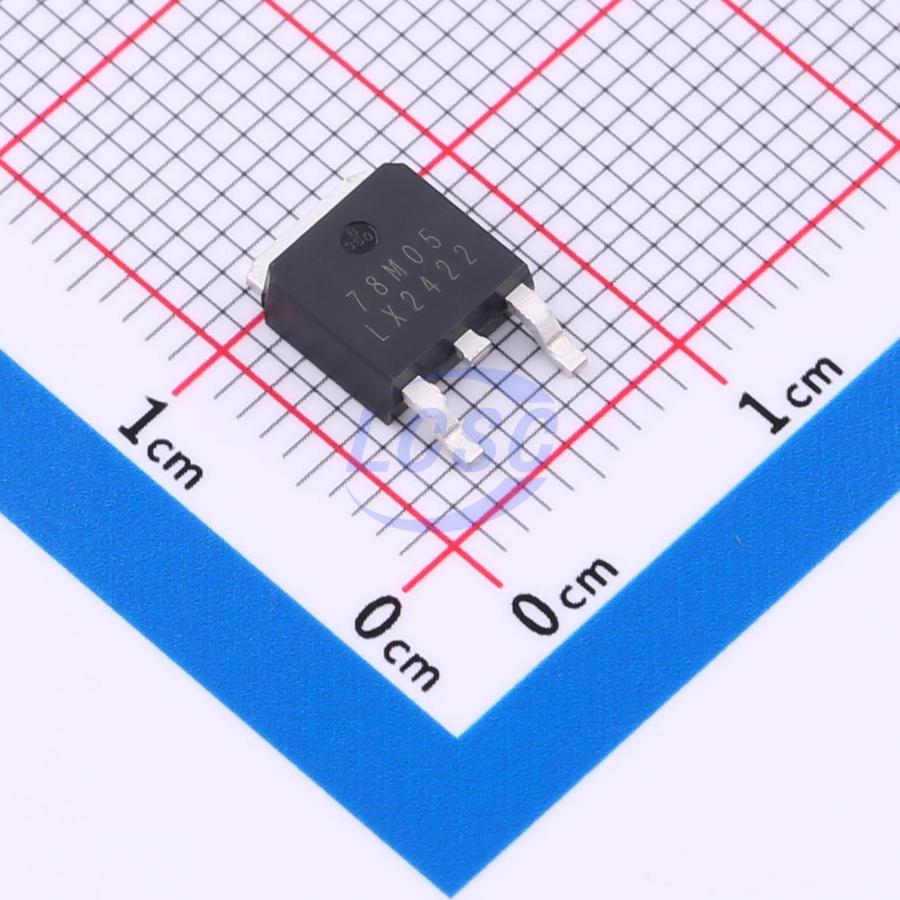

78M05(LX)
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252
TO-252RoHSActive
Three-terminal positive power supply voltage regulator
- Manufacturer
- lingxingic
- Manufacturer part #
- 78M05(LX)
- Store part #
- C26159243
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C26159243
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.44 | ₹422.00 |
| 150+ | ₹7.34 | ₹1,101.00 |
| 500+ | ₹6.52 | ₹3,260.00 |
| 2,500+ | ₹5.68 | ₹14,200.00 |
| 5,000+ | ₹5.34 | ₹26,700.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78M05(LX)
₹53.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.484 g
Overview
78M05/06/07/08/09/10/12/15/18/20/22/24 is a three-terminal positive voltage regulator, primarily used as a fixed output voltage source in various electronic devices. The circuit incorporates over-temperature, over-current, and safe operating area compensation features. With an appropriate external heatsink and suitable input voltage, the output current can reach up to 0.5A. This circuit can serve not only as a fixed output voltage source, but also — when configured with appropriate external components — deliver other required voltages and currents.
Key features
- Output current up to 0.5A
- Built-in over-temperature and over-current protection
- Internal safe operating area compensation for output transistor
- Minimal external components, wide applicability
- Fixed output: 5V/6V/7V/8V/9V/10V/12V/15V/18V/20V/22V/24V
- Package: TO220/TO252
