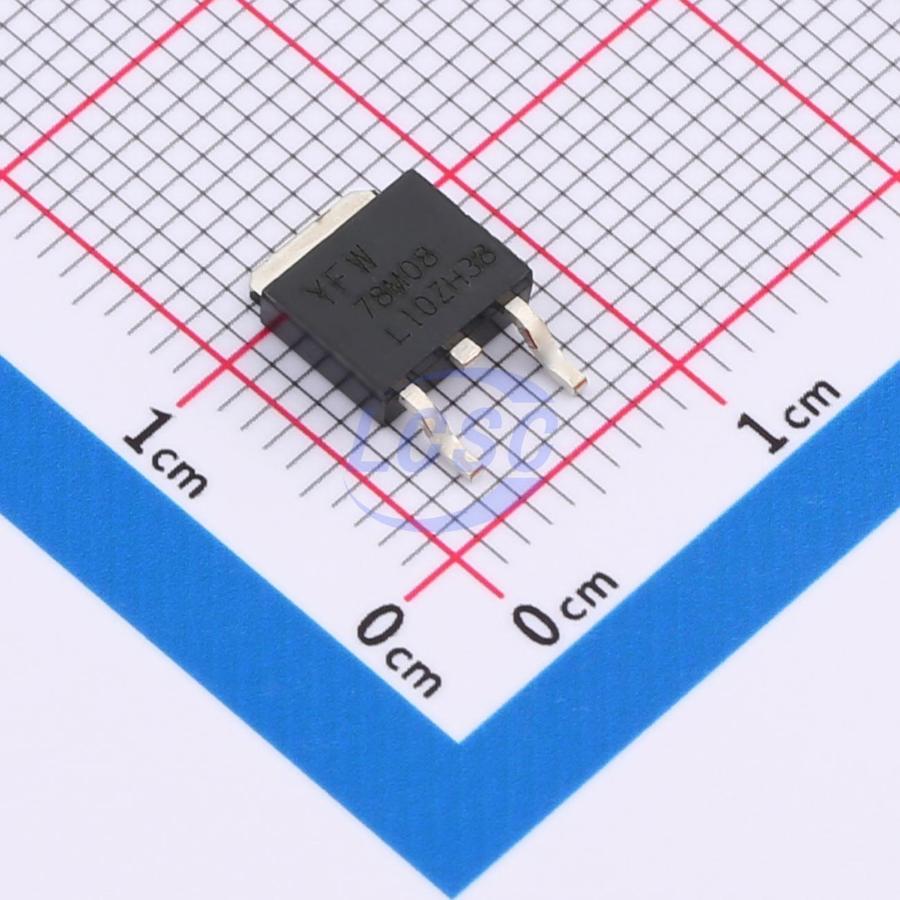

78M08
8V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS CompliantActive
3-Terminal 1A Positive Voltage Regulator
- Manufacturer
- YFW
- Manufacturer part #
- 78M08
- Store part #
- C19273194
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C19273194
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.60 | ₹103.00 |
| 50+ | ₹16.11 | ₹805.50 |
| 150+ | ₹14.20 | ₹2,130.00 |
| 500+ | ₹11.80 | ₹5,900.00 |
| 2,500+ | ₹11.01 | ₹27,525.00 |
| 5,000+ | ₹10.36 | ₹51,800.00 |
5 × ₹20.60
₹103.00
excl. GST
₹121.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78M08
₹103.00 for 5 + GST
Specifications
- Output Voltage
- 8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 25V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.456 g
Overview
The 78MXX series of three-terminal positive regulators are available in the TO-220C/TO-252 package with several fixed output voltages making it useful in a wide range of applications.
Key features
- Output Current up to 1A
- Output Voltages of 5,6,8,10,12,15,18,20,24V
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating area (SOA)Protection
