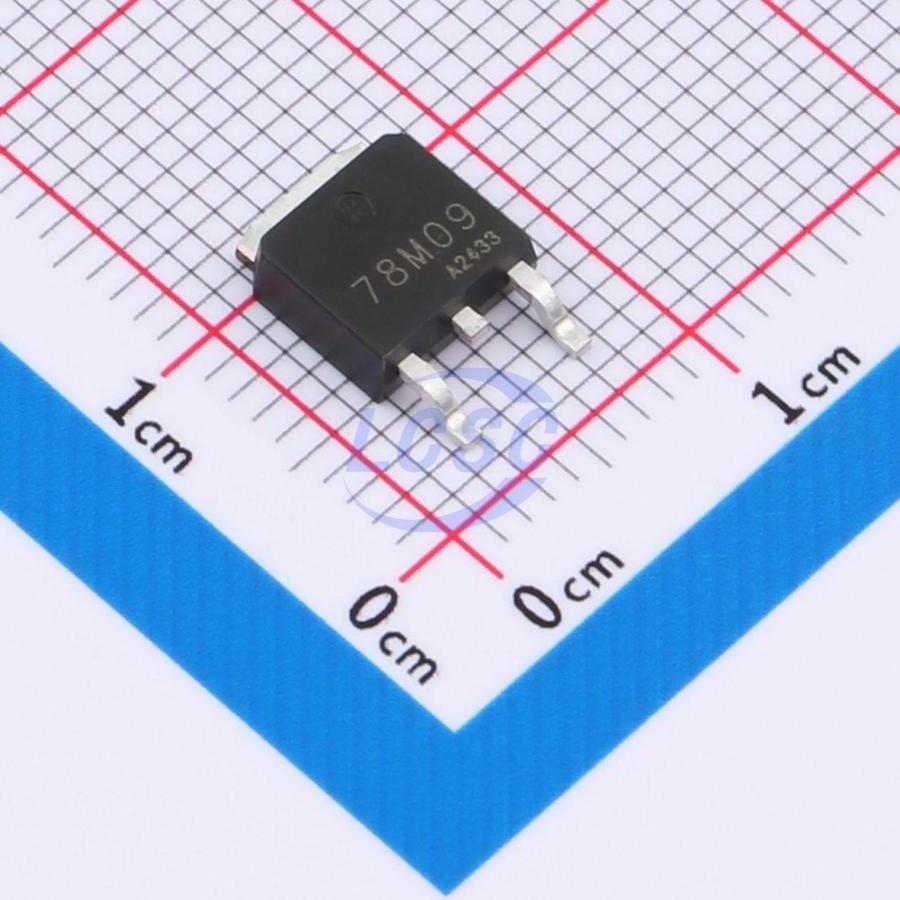

78M09
Linear Voltage Regulator IC Fixed 500mA TO-252
TO-252RoHSActive
1Ampere Surface Mount Negative Three Terminal Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 78M09
- Store part #
- C5371013
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,110 in stock
#C5371013
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.76 | ₹58.80 |
| 50+ | ₹10.33 | ₹516.50 |
| 150+ | ₹9.62 | ₹1,443.00 |
| 500+ | ₹9.08 | ₹4,540.00 |
| 2,500+ | ₹8.65 | ₹21,625.00 |
| 5,000+ | ₹8.43 | ₹42,150.00 |
5 × ₹11.76
₹58.80
excl. GST
₹69.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78M09
₹58.80 for 5 + GST
Specifications
- Output Voltage
- 9V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 35V
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.448 g
Overview
Applications
- Voltage Regulator
Key features
- Input voltage: up to 35V
- Output voltage: 9V
- Output current: up to 500 mA
- Internal thermal overload protection and short-circuit current limiting
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP78M09K3-1#C5371012TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 2,475 | ₹17.94 · 2,475 in stock | View |
 | TP78M09K3#C5371011TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 230 | ₹10.25 · 230 in stock | View |
 | L78M09CDT-TR#C41407980TECH PUBLIC · TO-252-2L | TECH PUBLIC | TO-252-2L | 1,480 | ₹22.20 · 1,480 in stock | View |
