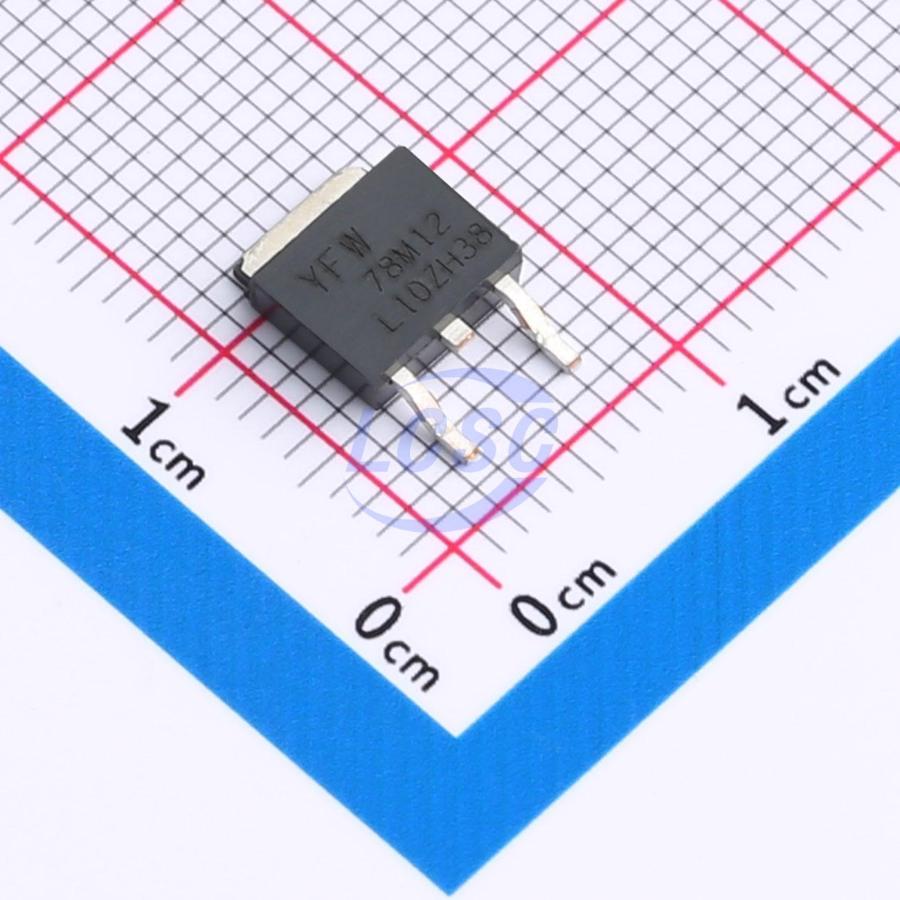

78M12
11.4V~12.6V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS CompliantActive
3-Terminal 1A Positive Voltage Regulator
- Manufacturer
- YFW
- Manufacturer part #
- 78M12
- Store part #
- C19272918
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C19272918
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.06 | ₹105.30 |
| 50+ | ₹16.54 | ₹827.00 |
| 150+ | ₹14.61 | ₹2,191.50 |
| 500+ | ₹12.18 | ₹6,090.00 |
| 2,500+ | ₹11.11 | ₹27,775.00 |
| 5,000+ | ₹10.46 | ₹52,300.00 |
5 × ₹21.06
₹105.30
excl. GST
₹124.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78M12
₹105.30 for 5 + GST
Specifications
- Output Voltage
- 11.4V~12.6V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 27V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.453 g
Overview
The 78MXX series of three-terminal positive regulators are available in the TO-220C/TO-252 package with several fixed output voltages making it useful in a wide range of applications.
Key features
- Output Current up to 1A
- Output Voltages of 5,6,8,10,12,15,18,20,24V
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating area (SOA)Protection
