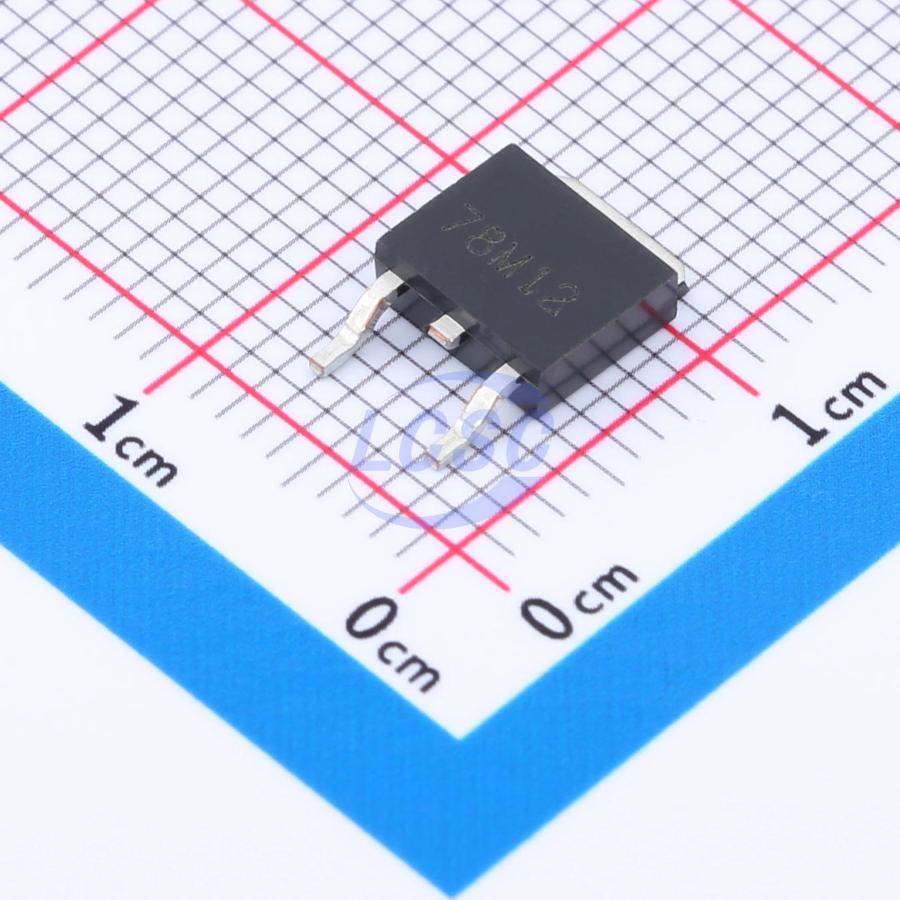

HXY MOSFET

78M12

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252-2L

TO-252-2LROHS CompliantActive

Three terminal voltage regulator

Manufacturer: HXY MOSFET
Manufacturer part #: 78M12
Store part #: C19723866
Package / case: TO-252-2L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,300 in stock

#C19723866

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.81	₹69.05
50+	₹10.84	₹542.00
150+	₹9.35	₹1,402.50
500+	₹8.24	₹4,120.00
2,500+	₹7.10	₹17,750.00
5,000+	₹6.67	₹33,350.00

Quantity (min 5, multiples of 5)

5 × ₹13.81

₹69.05

excl. GST

₹81.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

78M12

₹69.05 for 5 + GST

Specifications

Output Voltage: 12V
Number of Outputs: 1
Supply Current (Iq): 4.6mA
Output Configuration: Positive
Operating Voltage: 35V
Output Current: 500mA
Features: Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.432 g

Overview

Applications

Motor drive
On-board regulation
Portable devices
Telecom equipment
TV and set-top boxes

Key features

Output voltage: 12V
Maximum input voltage: 35V
Maximum output current: exceeds 500mA at TJ = 25℃
Output tolerance: ±3% at TJ = 25℃, ±5% over full operating TJ range
No external components required

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	7812#C20611634HXY MOSFET · TO-252-2L	HXY MOSFET	TO-252-2L	1,660	₹22.48 · 1,660 in stock	View
