UTCDatasheet (PDF)

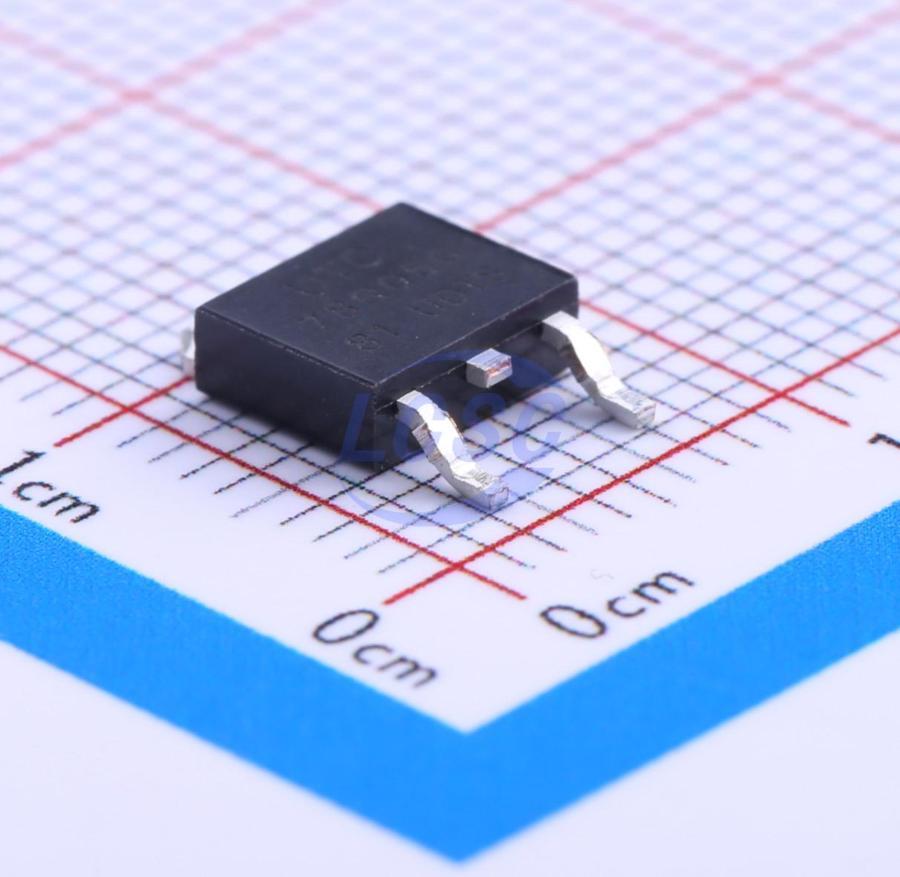

78R05G-TN3-R
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-2(DPAK)
TO-252-2(DPAK)ROHS CompliantActive
Linear integrated low-dropout regulator
- Manufacturer
- UTC
- Manufacturer part #
- 78R05G-TN3-R
- Store part #
- C171518
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,755 in stock
#C171518
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.30 | ₹146.50 |
| 50+ | ₹25.79 | ₹1,289.50 |
| 150+ | ₹24.26 | ₹3,639.00 |
| 500+ | ₹22.39 | ₹11,195.00 |
| 2,500+ | ₹19.47 | ₹48,675.00 |
| 5,000+ | ₹18.97 | ₹94,850.00 |
5 × ₹29.30
₹146.50
excl. GST
₹172.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78R05G-TN3-R
₹146.50 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 35V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input overvoltage protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.504 g
Overview
As the UTC linear integrated LDO, the UTC 78RXXX shows a high current, high accuracy, and specially low-dropout voltage. The features are: maximum 500mV dropout voltage, very low ground current. Cause the series have been designed for high current loads, so they are also used in lower current, extremely low dropout-critical systems (in which their tiny dropout voltage and ground current values are important attributes).
Key features
- IOUT=1A ; VOUT = 1.5V, 1.8V, 3.3V, 5V, 6V, 9V, 12V, 15V (Typ.)
- With ADJ version
- Internal overcurrent protection, internal thermal shutdown
- Internal overvoltage protection, internal short-circuit protection
- Output disable function
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7805BDTRKG-GK#C46061589GOODWORK · TO-252 | GOODWORK | TO-252 | 1,260 | ₹15.19 · 1,260 in stock | View |
 | 78D05A#C7429756BLUE ROCKET · TO-252 | BLUE ROCKET | TO-252 | 2,115 | ₹23.32 · 2,115 in stock | View |
 | 78M05 (1.0A)#C17702904GOODWORK · TO-252-2(DPAK) | GOODWORK | TO-252-2(DPAK) | 1,215 | ₹14.62 · 1,215 in stock | View |
 | L78M05CDT-GK#C42395471GOODWORK · TO-252 | GOODWORK | TO-252 | 1,515 | ₹13.34 · 1,515 in stock | View |
 | 78D05#C358374BLUE ROCKET · TO-252 | BLUE ROCKET | TO-252 | 1,190 | ₹26.80 · 1,190 in stock | View |
