MICROCHIP

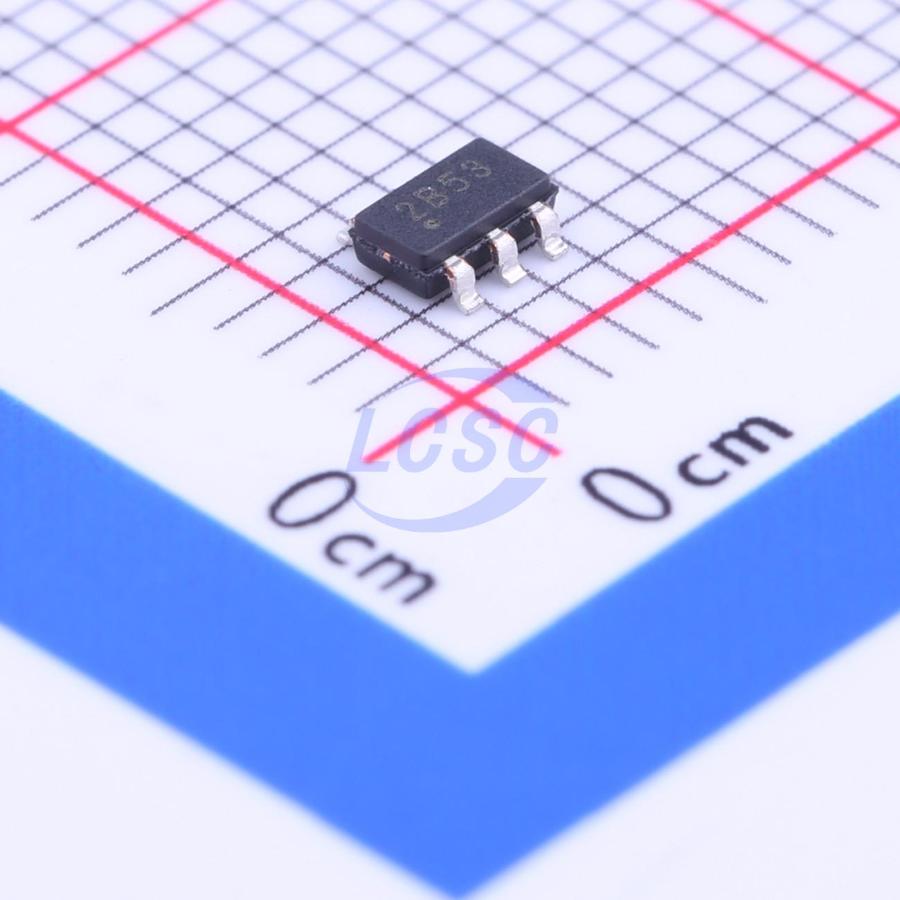

93AA56AT-I/OT

2Kbit 3MHz SPI SOT-23-6 Memory RoHS

SOT-23-6ROHS3 CompliantActive

2K Microwire Compatible Serial EEPROM

Manufacturer: MICROCHIP
Manufacturer part #: 93AA56AT-I/OT
Store part #: C73102
Package / case: SOT-23-6
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,274 in stock

#C73102

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹76.76	₹76.76
10+	₹61.76	₹617.60
30+	₹54.36	₹1,630.80
100+	₹46.75	₹4,675.00
500+	₹42.40	₹21,200.00
1,000+	₹40.02	₹40,020.00

Quantity (min 1)

1 × ₹76.76

₹76.76

excl. GST

₹90.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

93AA56AT-I/OT

₹76.76 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Power-down/Power-up protection circuit;Software write protection function
Memory Size: 2Kbit
Voltage - Supply: 1.8V~5.5V;2mA
Clock Frequency: 3MHz
Data Retention - TDR (Year): 200 Years
Write Cycle Time(tWC): 6ms
Standby Supply Current: 5uA
Write Cycle Endurance: 1,000,000 cycles
Interface: SPI

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.042 g

Overview

The 93XX56A/B/C devices are 2Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA56C, 93LC56C or 93C56C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93XX56A devices are available, while the 93XX56B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for low-power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.

Key features

Low-Power CMOS Technology
ORG Pin to Select Word Size for '56C' Version 256x8-bit Organization, 'A' Version (no ORG) 128x16-bit Organization, 'B' Version (no ORG)
Self-Timed Erase/Write Cycles (including Auto-Erase)
Automatic Erase All (ERAL) before Write All (WRAL)
Power-On/Off Data Protection Circuitry
Industry Standard 3-Wire Serial I/O
Device Status Signal (Ready/Busy)
Sequential Read Function
1,000,000 Erase/write Cycles
Data Retention >200 Years
Pb-free and RoHS Compliant
Temperature Ranges Supported: Industrial (I) -40℃ to +85℃, Automotive (E) -40℃ to +125℃
