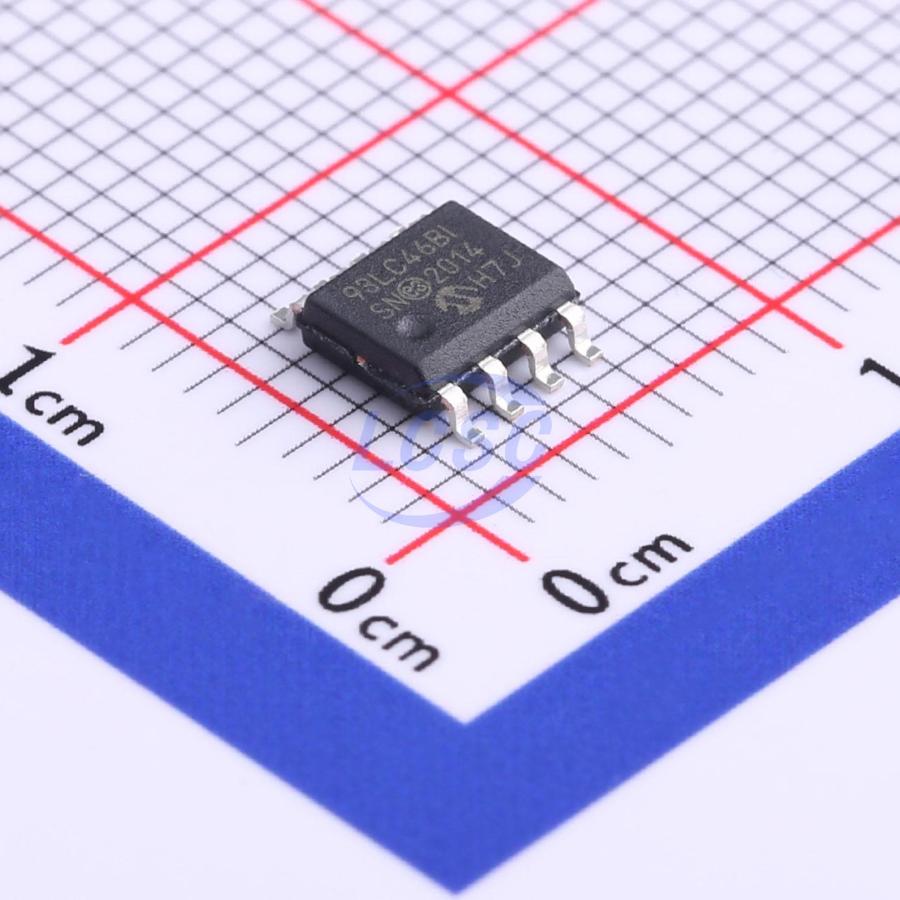

93LC46BT-I/SN
1Kbit 2MHz SPI SOIC-8-150mil Memory RoHS
1K Microwire Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,855 in stock
#C16253
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.37 | ₹246.85 |
| 50+ | ₹39.54 | ₹1,977.00 |
| 150+ | ₹35.32 | ₹5,298.00 |
| 500+ | ₹30.07 | ₹15,035.00 |
| 3,300+ | ₹27.73 | ₹91,509.00 |
| 6,600+ | ₹26.33 | ₹1,73,778.00 |
5 × ₹49.37
₹246.85
excl. GST
₹291.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
93LC46BT-I/SN
₹246.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Power-down/Power-up protection circuit;Software write protection function
- Memory Size
- 1Kbit
- Voltage - Supply
- 2.5V~5.5V;2mA
- Clock Frequency
- 2MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 6ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
1Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA46C, 93LC46C or 93C46C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93AA46A, 93LC46A or 93C46A devices are available, while the 93AA46B, 93LC46B and 93C46B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for low power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.
Key features
- Low-Power CMOS Technology
- ORG Pin to Select Word Size for '46C' Version
- 128x8-bit Organization ‘A' Devices (no ORG), 64x16-bit Organization 'B' Devices (no ORG)
- Self-Timed Erase/Write Cycles (including Auto-Erase)
- Automatic Erase All (ERAL) Before Write All (WRAL)
- Power-On/Off Data Protection Circuitry
- Industry Standard 3-Wire Serial I/O
- Device Status Signal (Ready/Busy)
- Sequential Read Function
- 1,000,000 Erase/Write Cycles
- Data Retention > 200 Years
- RoHS Compliant
- Temperature Ranges Supported: Industrial (I) -40℃ to +85℃, Automotive (E) -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 93LC46A/SN#C1349238MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 20 | ₹78.71 · 20 in stock | View |
 | 93LC46BXT-I/SN#C615905MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹73.78 · 10 in stock | View |
 | 93LC46B-E/SN#C1350537MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 58 | ₹143.77 · 58 in stock | View |
 | 93LC46BX-I/SN#C1349377MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 180 | ₹130.53 · 180 in stock | View |
 | 93LC46BX/SN#C615390MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹66.82 · 10 in stock | View |
