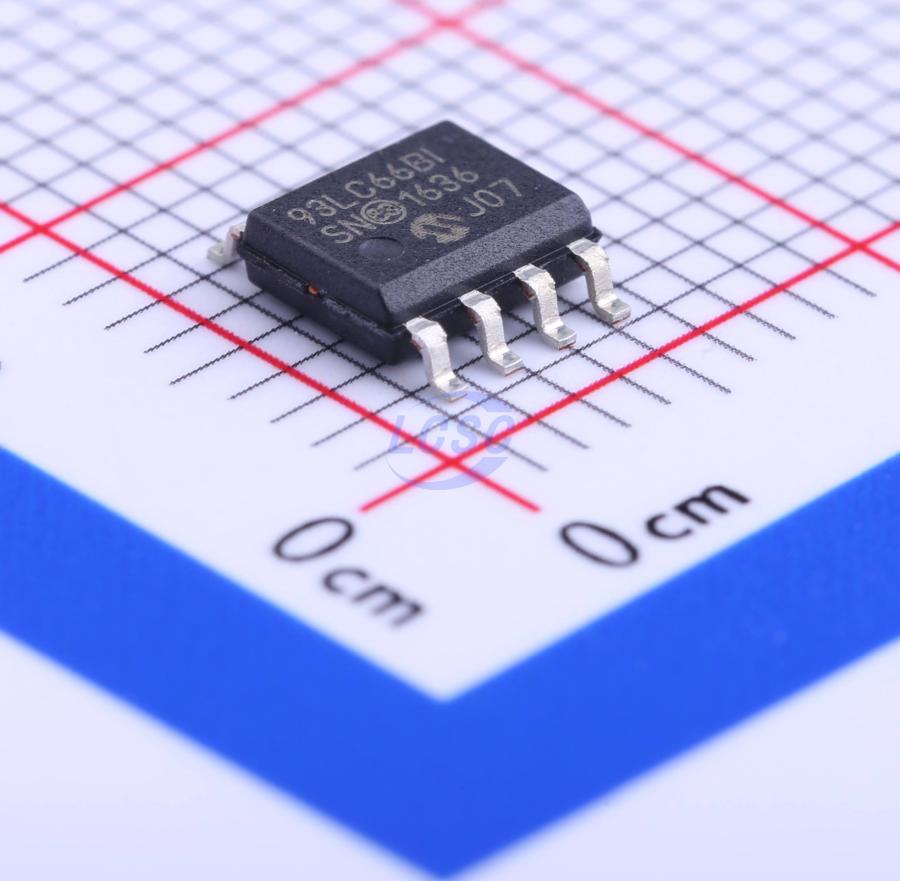

93LC66BT-I/SN
4Kbit 2MHz SPI SOP-8 Memory RoHS
4K Microwire Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,758 in stock
#C46698
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.47 | ₹57.47 |
| 10+ | ₹45.29 | ₹452.90 |
| 30+ | ₹40.27 | ₹1,208.10 |
| 100+ | ₹33.75 | ₹3,375.00 |
| 500+ | ₹30.92 | ₹15,460.00 |
| 1,000+ | ₹29.17 | ₹29,170.00 |
1 × ₹57.47
₹57.47
excl. GST
₹67.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
93LC66BT-I/SN
₹57.47 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Power-down/Power-up protection circuit;Software write protection function
- Memory Size
- 4Kbit
- Voltage - Supply
- 2.5V~5.5V;2mA
- Clock Frequency
- 2MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 6ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
Overview
4Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA66C, 93LC66C or 93C66C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93XX66A devices are available, while the 93XX66B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for low-power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.
Key features
- Low-Power CMOS Technology
- ORG Pin to Select Word Size for '66C' Version 512x8 -bit Organization ‘A' Devices (no ORG) 256x16 -bit organization 'B' Devices (no ORG)
- Self-timed Erase/Write Cycles (including Auto-Erase)
- Automatic Erase All(ERAL) Before Write All (WRAL)
- Power-On/Off Data Protection Circuitry
- Industry Standard 3-Wire Serial I/O
- Device Status Signal (Ready/Busy)
- Sequential Read Function
- 1,000,000 Erase/Write Cycles
- Data Retention >200 Years
- Pb-free and RoHS Compliant
- Temperature Ranges Supported:
- Industrial (I) -40℃ to +85℃
- Automotive (E) -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 93AA66AT-I/SN#C2062846MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 5 | ₹87.66 · 5 in stock | View | |
 | 93LC66C-I/SN#C1348768MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 197 | ₹126.68 · 197 in stock | View |
 | 93LC66A-I/SN#C615416MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 5 | ₹140.03 · 5 in stock | View |
 | 93LC66BT-E/SN#C615937MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹124.89 · 10 in stock | View |
 | M93C66-WMN6TP#C118281ST · SOIC-8 | ST | SOIC-8 | 27,015 | ₹37.65 · 27,015 in stock | View |
