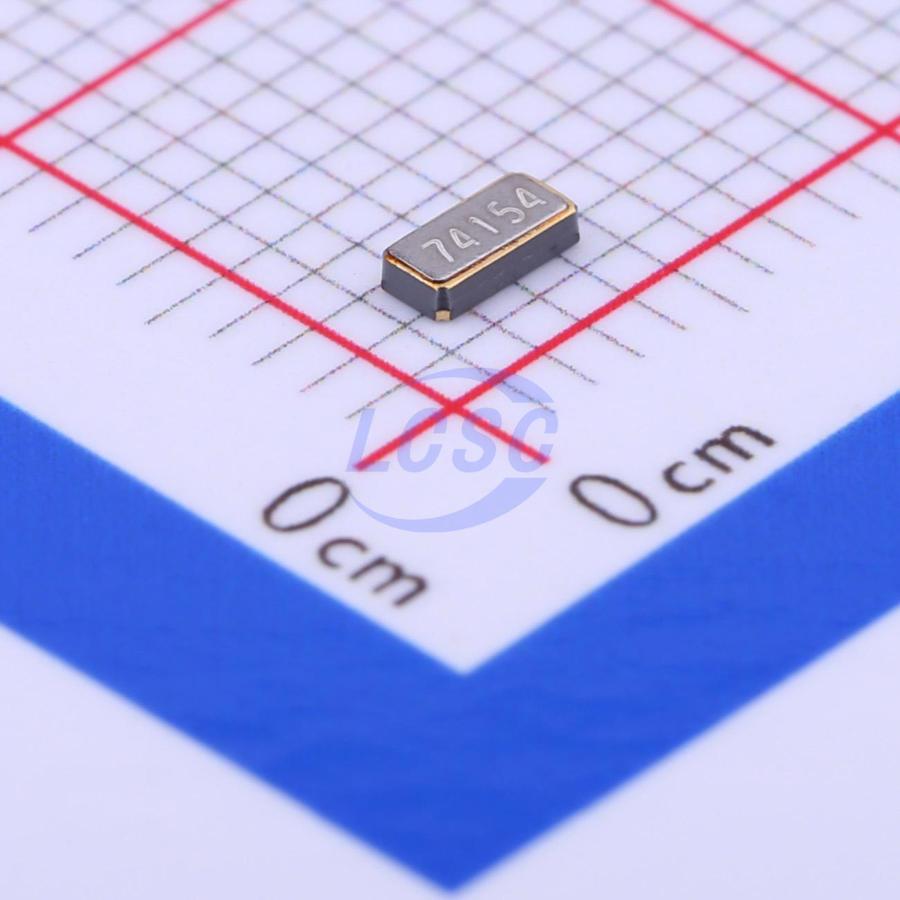

ABRACON
ABS07-32.768KHZ-T
Crystal 32.768kHz ±20ppm 12.5pF 70kΩ SMD3215-2P
PopularSMD3215-2PROHS3 CompliantActive
CRYSTAL 32.768kHz 12.5pF SMD
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,293 in stock
#C130253
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.24 | ₹97.24 |
| 10+ | ₹80.49 | ₹804.90 |
| 30+ | ₹72.01 | ₹2,160.30 |
| 100+ | ₹63.74 | ₹6,374.00 |
| 500+ | ₹51.35 | ₹25,675.00 |
| 1,000+ | ₹48.73 | ₹48,730.00 |
1 × ₹97.24
₹97.24
excl. GST
₹114.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ABS07-32.768KHZ-T
₹97.24 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Load Capacitance
- 12.5pF
- Normal temperature Frequency Tolerance
- ±20ppm
- Equivalent Series Resistance(ESR)
- 70kΩ
- Frequency
- 32.768kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
Applications
- Wide range in communication & measuring equipment
- Commercial & Industrial applications
- Wireless communications
- PDA and Smartphone
Key features
- Low frequency in small size SMD
- 0.9mm height ideal for high density circuit boards
- Seam sealed ceramic package offers excellent environmental & heat resistance
- Extended temperature -55°C to +125°C for industrial applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CM7V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC#C5366532Micro Crystal · SMD3215-2P | Micro Crystal | SMD3215-2P | 3,409 | ₹79.74 · 3,409 in stock | View |
 | ETST00327000JE#C1021649HOSONIC · SMD3215-2P | HOSONIC | SMD3215-2P | 1,425 | ₹34.50 · 1,425 in stock | View |
 | 3K32.768XQ#C19723454huaxindianzi · SMD3215-2P | huaxindianzi | SMD3215-2P | 50,630 | ₹22.31 · 50,630 in stock | View |
 | SXTF321532768A20F#C22386770SCTF · SMD3215-2P | SCTF | SMD3215-2P | 11,190 | ₹18.35 · 11,190 in stock | View |
 | SF32WK32768D31T002#C271654TKD · SMD3215-2P | TKD | SMD3215-2P | 29,650 | ₹22.64 · 29,650 in stock | View |
