YAGEODatasheet (PDF)

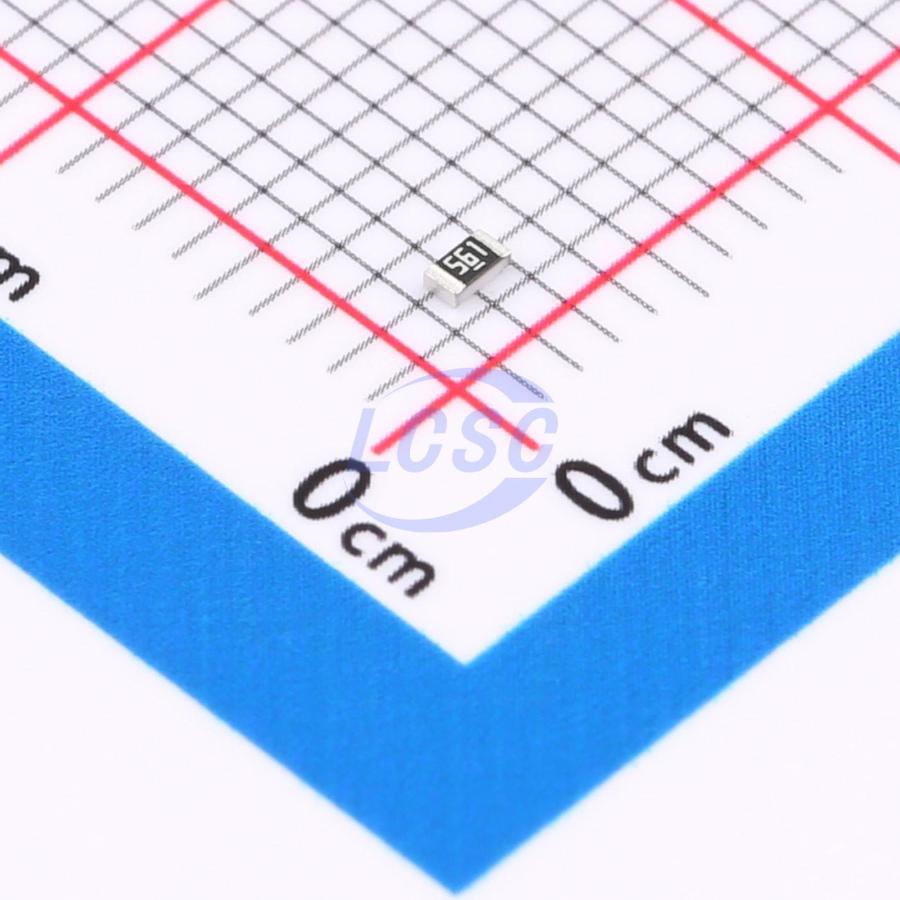

AC0603FR-07560RL
560Ω 100mW 75V Thick Film Resistor ±100ppm/℃ ±1% 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 560Ω ±1% 100mW 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- AC0603FR-07560RL
- Store part #
- C144648
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,700 in stock
#C144648
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.7144 | ₹71.44 |
| 1,000+ | ₹0.5953 | ₹595.30 |
| 5,000+ | ₹0.5292 | ₹2,646.00 |
| 10,000+ | ₹0.5027 | ₹5,027.00 |
| 50,000+ | ₹0.4631 | ₹23,155.00 |
100 × ₹0.7144
₹71.44
excl. GST
₹84.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AC0603FR-07560RL
₹71.44 for 100 + GST
Specifications
- Resistance
- 560Ω
- Power(Watts)
- 100mW
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.023 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRCW0603560RFKEAC#C1730885VISHAY · 0603 | VISHAY | 0603 | 450 | ₹2.39 · 450 in stock | View |
| AF0603FR-07560RL#C1882616YAGEO · 0603 | YAGEO | 0603 | 700 | ₹0.5557 · 700 in stock | View | |
| CRGCQ0603F560R#C2073741TE Connectivity · 0603 | TE Connectivity | 0603 | 50 | ₹2.42 · 50 in stock | View | |
 | 0603WAF5600T5E#C23204UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 24,47,900 | ₹0.4498 · 24,47,900 in stock | View |
 | FRC0603F5600TS#C2907052FOJAN · 0603 | FOJAN | 0603 | 9,92,400 | ₹0.2646 · 9,92,400 in stock | View |
