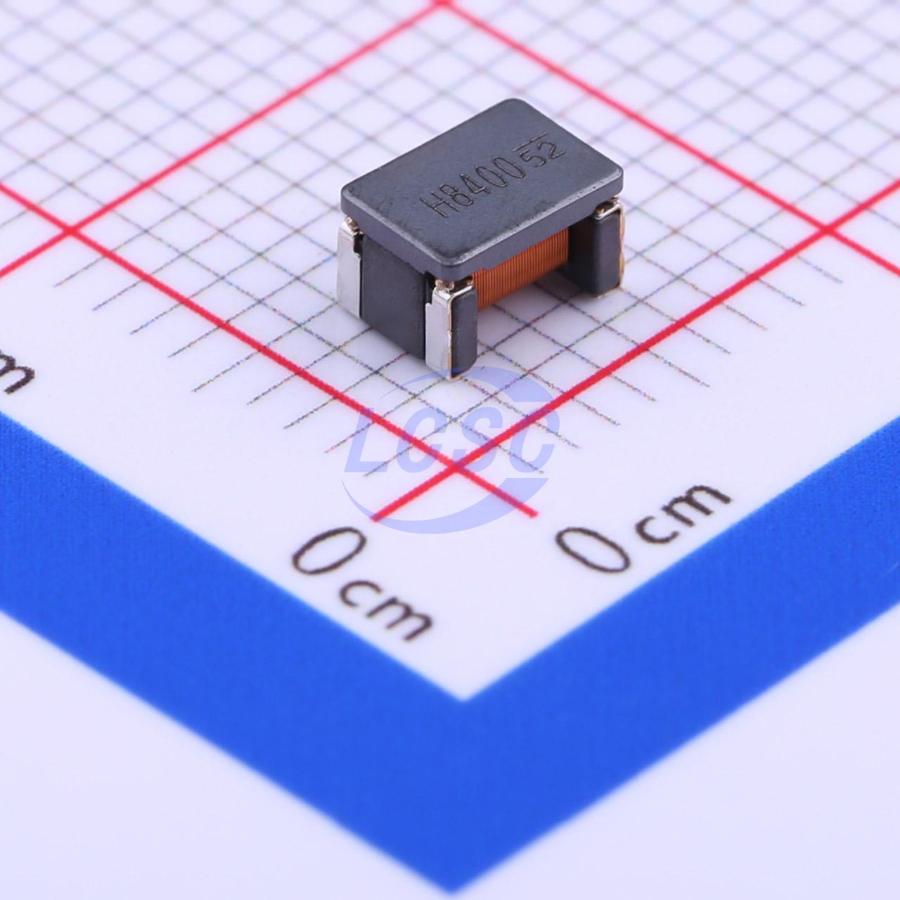

ACT45B-101-2P-TL003
100uH@100kHz 2Line Common Mode Choke Surface Mount-4P 4.5x3.2mm 5.8kΩ@10MHz 150mA DCR 2Ω
PopularSMD-4P,4.5x3.2mmROHS3 CompliantActive
CMC 100uH 150mA 2LN 5.8kΩ SMD
- Manufacturer
- TDK
- Manufacturer part #
- ACT45B-101-2P-TL003
- Store part #
- C88056
- Package / case
- SMD-4P,4.5x3.2mm
- Category
- Common Mode Chokes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33,198 in stock
#C88056
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.32 | ₹59.32 |
| 10+ | ₹47.38 | ₹473.80 |
| 30+ | ₹41.52 | ₹1,245.60 |
| 100+ | ₹36.08 | ₹3,608.00 |
| 500+ | ₹34.77 | ₹17,385.00 |
| 1,000+ | ₹33.91 | ₹33,910.00 |
1 × ₹59.32
₹59.32
excl. GST
₹70.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ACT45B-101-2P-TL003
₹59.32 for 1 + GST
Specifications
- Inductance @ Frequency
- 100uH@100kHz
- DC Resistance(DCR)
- 2Ω
- Insulation Resistance(IR)
- 200kΩ
- Number of Lines
- 2
- Operating Temperature
- -40℃~+150℃
- Voltage Rating
- 50V
- Impedance @ Frequency
- 5.8kΩ@10MHz
- Current Rating
- 150mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
Applications
- CAN-BUS, FAXs, modems, ISDNs, etc.
Key features
- Compatible with an operating temperature range of -40 to +150°C so can be used for vehicle devices requiring compatibility with high temperatures.
- Operating temperature range: -40 to +150°C
- Compliant with AEC-Q200
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ACT45C-101-2P-TL000#C404371TDK · SMD-4P,4.5x3.2mm | TDK | SMD-4P,4.5x3.2mm | 5,141 | ₹49.60 · 5,141 in stock | View |
 | SACT4532A-101-2P-T#C42406324LanTu Micro · SMD-4P,4.5x3.2mm | LanTu Micro | SMD-4P,4.5x3.2mm | 325 | ₹48.83 · 325 in stock | View |
| ACT4532L-101-2P-TF#C41364563MetalLions · SMD-4P,4.5x3.2mm | MetalLions | SMD-4P,4.5x3.2mm | 35 | ₹37.37 · 35 in stock | View | |
 | ACM4532F2NV-101T02-D#C2880055TAI-TECH · SMD-4P,4.5x3.2mm | TAI-TECH | SMD-4P,4.5x3.2mm | 255 | ₹51.74 · 255 in stock | View |
 | SRCM.4532.101NT00#C5122955SOREDE · SMD-4P,4.5x3.2mm | SOREDE | SMD-4P,4.5x3.2mm | 1,070 | ₹33.86 · 1,070 in stock | View |
