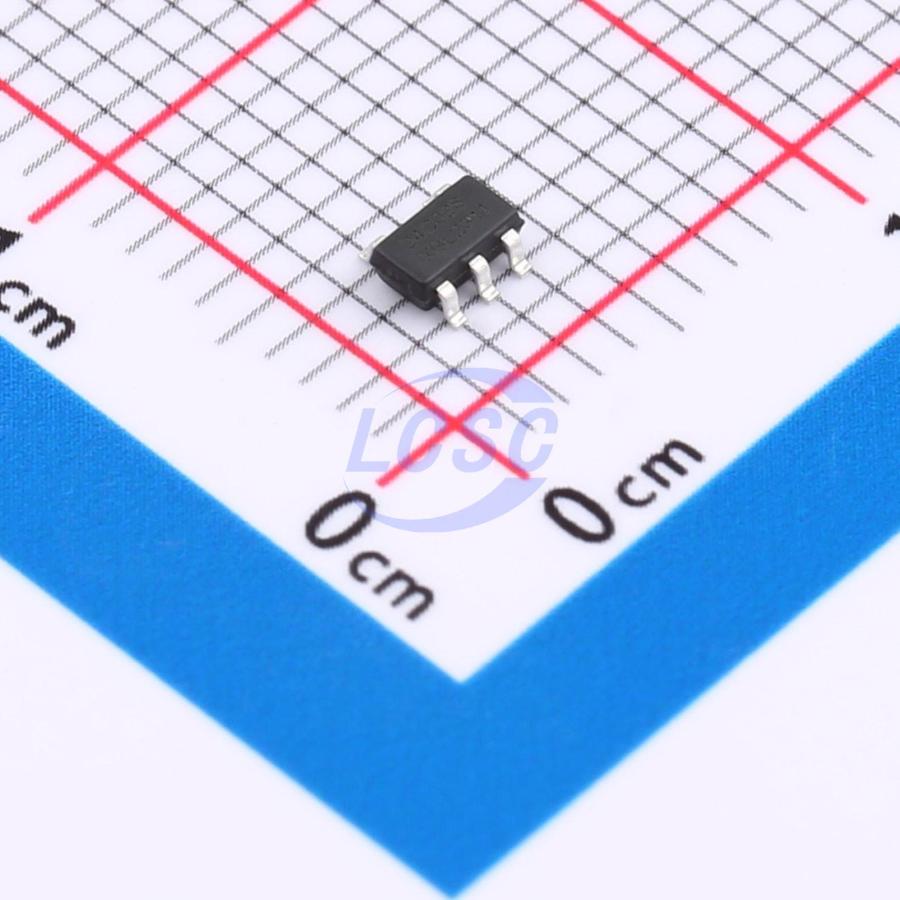

AD24C02
2Kbit 1MHz I2C SOT-23-5L Memory RoHS
Low Voltage Low Power Two-Wire Serial EEPROM
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AD24C02
- Store part #
- C7507360
- Package / case
- SOT-23-5L
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,390 in stock
#C7507360
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.07 | ₹60.70 |
| 100+ | ₹4.90 | ₹490.00 |
| 300+ | ₹4.30 | ₹1,290.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.94 | ₹17,640.00 |
| 9,000+ | ₹2.77 | ₹24,930.00 |
10 × ₹6.07
₹60.70
excl. GST
₹71.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD24C02
₹60.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
AD24C02 is a 2048-bit serial EEPROM with an internal organization of 256 words × 8 bits. Fabricated using a proprietary advanced CMOS process, it is suitable for low-power and low-voltage applications. Available in standard 8-pin DIP, SOP, MSOP, TSSOP, and 5-pin SOT-23/TSOT-23 packages. All read/write operations are performed via a standard two-wire serial interface. The wide supply voltage range supports a broad range of applications.
Applications
- Industrial control
- Automotive electronics
- Medical devices
- Consumer electronics
- Communications equipment
Key features
- Low-voltage and low-power operation: AD24C02 operates from 1.8V to 5.5V, industrial temperature range -40°C to 85°C.
- 16-byte page write mode with partial page write support.
- Internal organization: 256×8 bits.
- Standard two-wire bidirectional serial interface.
- Schmitt trigger inputs with noise suppression filtering.
- Self-timed programming cycle.
- Compatible with 1 MHz and 400 kHz communication rates.
- Auto-erase before write operation.
- Write protect pin for hardware data protection.
- High reliability: typical endurance 1,000,000 write/erase cycles, data retention 100 years.
- Available in standard 8-pin and 5-pin lead-free packages.
