AD2S1210WDSTZRL7
SPI 4.75V~5.25V LQFP-48(7x7) ADCs/DACs - Special Purpose RoHS
LQFP-48(7x7)ROHS3 CompliantActive
Variable Resolution, 10-Bit to 16-Bit R/D Converter with Reference Oscillator
- Manufacturer
- ADI
- Manufacturer part #
- AD2S1210WDSTZRL7
- Store part #
- C459871
- Package / case
- LQFP-48(7x7)
- Category
- ADCs/DACs - Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,511 in stock
#C459871
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,627.20 | ₹1,627.20 |
| 10+ | ₹1,429.67 | ₹14,296.70 |
| 30+ | ₹1,180.57 | ₹35,417.10 |
| 100+ | ₹1,079.74 | ₹1,07,974.00 |
1 × ₹1,627.20
₹1,627.20
excl. GST
₹1,920.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per reel

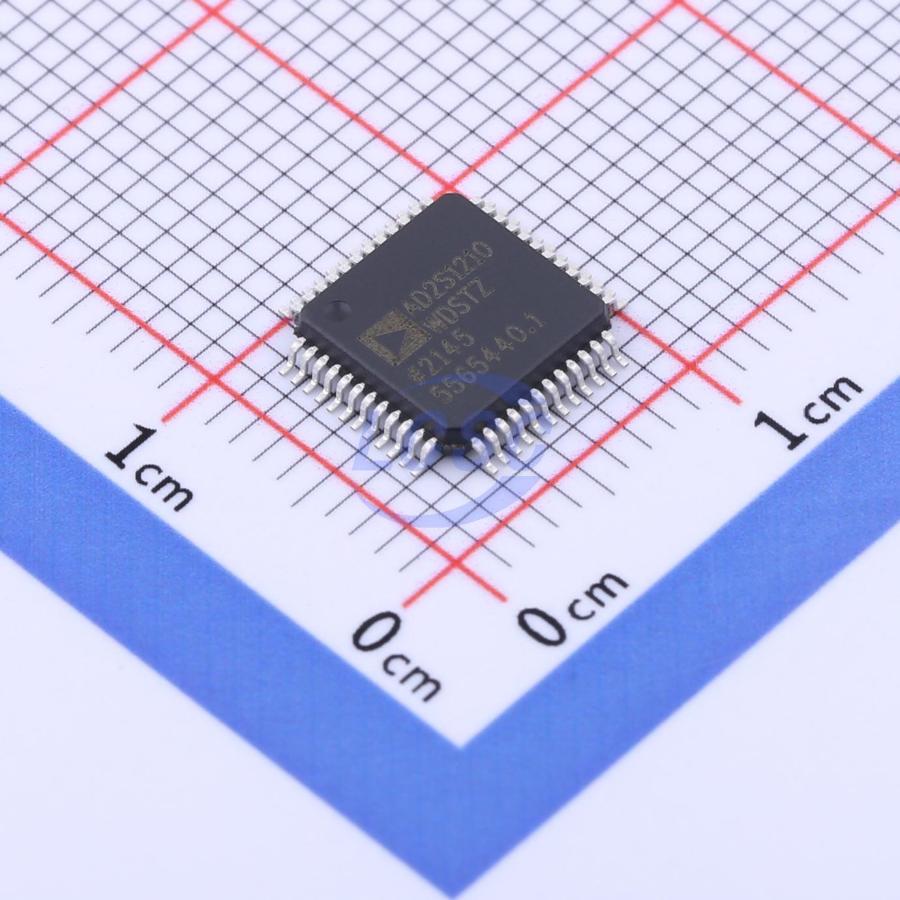

AD2S1210WDSTZRL7
₹1,627.20 for 1 + GST
Specifications
- Features
- Programmable gain;Built-in temperature sensor;Bipolar input;Built-in reference source;Differential output;Digital filtering;On-chip calibration;Low noise front-end
- Operating Temperature
- -40℃~+125℃
- Interface
- SPI
- ChipType
- Angle-to-digital converter
- DNL (LSB)
- 0.9LSB
- Voltage - Supply
- 4.75V~5.25V
- Integral non - linearity
- 1LSB;2LSB;4LSB;16LSB
- Resolution (Bits)
- 10;-;12;14;16
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The AD2S1210 is a complete 10- bit to 16- bit resolution tracking resolver- to- digital converter; integrating an on- board programmable sinusoidal oscillator that provides sine wave excitation for resolvers. The converter accepts 3.15 V p ± 27% input signals, in the range of 2 kHz to 20 kHz on the sine and cosine inputs. A Type II servo loop is employed to track the inputs and convert the input sine and cosine information into a digital representation of the input angle and velocity. The maximum tracking rate is 3125 rps.
Applications
- DC and ac servo motor control
- Encoder emulation
- Electric power steering
- Electric vehicles
- Integrated starter generators and alternators
- Automotive motion sensing and control
Key features
- COMPLETESPComplete monolithic resolver- to- digital converter
- 3125 rps maximum tracking rate (10- bit resolution and CLKIN = 10.24 MHz)
- +2.5 (+ 1.1 SB) arc minutes of angular accuracy (B and D grades)
- 10- /12- /14- /16- bit resolution, set by user
- Parallel and serial 10- bit to 16- bit data ports
- Absolute position and velocity outputs
- System fault detection
- Programmable fault detection thresholds
- Differential inputs
- Incremental encoder emulation
- Programmable sinusoidal oscillator on- board
- Compatible with DSP and SPI standards
- 5 V supply with 2.3 V to 5.25 V logic interface
- - 40°C to +125°C temperature rating (C, D, and W grades)
- AEC- Q100 qualified for automotive applications
- ASIL B safety assessment certificate available
- Safety manual available
Alternatives
Similar parts — check the datasheet before substituting.
