IDCHIPDatasheet (PDF)

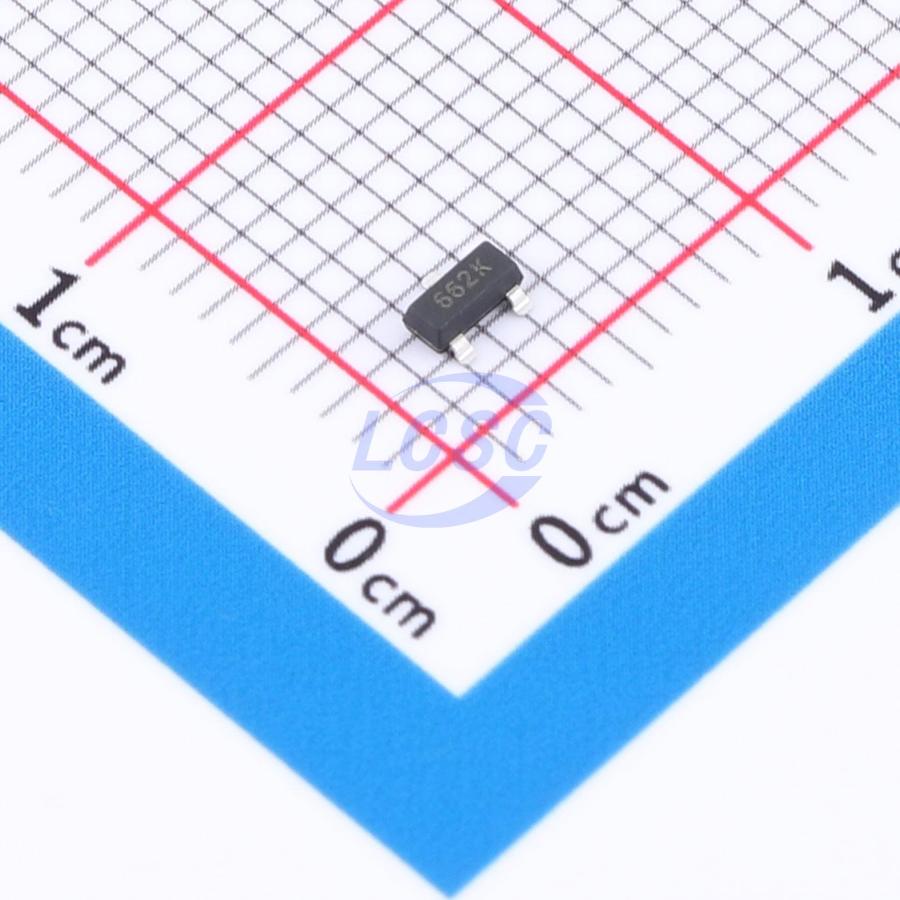

AD6206P-3.3
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- IDCHIP
- Manufacturer part #
- AD6206P-3.3
- Store part #
- C53427034
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C53427034
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.58 | ₹129.00 |
| 500+ | ₹2.00 | ₹1,000.00 |
| 3,000+ | ₹1.68 | ₹5,040.00 |
| 6,000+ | ₹1.48 | ₹8,880.00 |
| 24,000+ | ₹1.31 | ₹31,440.00 |
| 51,000+ | ₹1.23 | ₹62,730.00 |
50 × ₹2.58
₹129.00
excl. GST
₹152.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD6206P-3.3
₹129.00 for 50 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 6.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
The AD6206 series are CMOS step-down voltage regulators featuring high ripple rejection, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices offer a very low quiescent current (6.5μA typical) and can deliver 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and ultra-low quiescent current, these devices are particularly well-suited for battery-powered applications where extended battery life is desired, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Automotive electronics
- Voltage references
Key features
- High-accuracy output voltage: ±2.5%
- Output voltage: 1.5V~5.0V (step 0.1V)
- Ultra-low quiescent current (typical = 6.5μA)
- Maximum input voltage up to 6.5V
- Usable as both regulator and voltage reference
- Package: SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 7333-1SOT23-3#C42401007IDCHIP · SOT-23-3 | IDCHIP | SOT-23-3 | 1,820 | ₹7.78 · 1,820 in stock | View |
