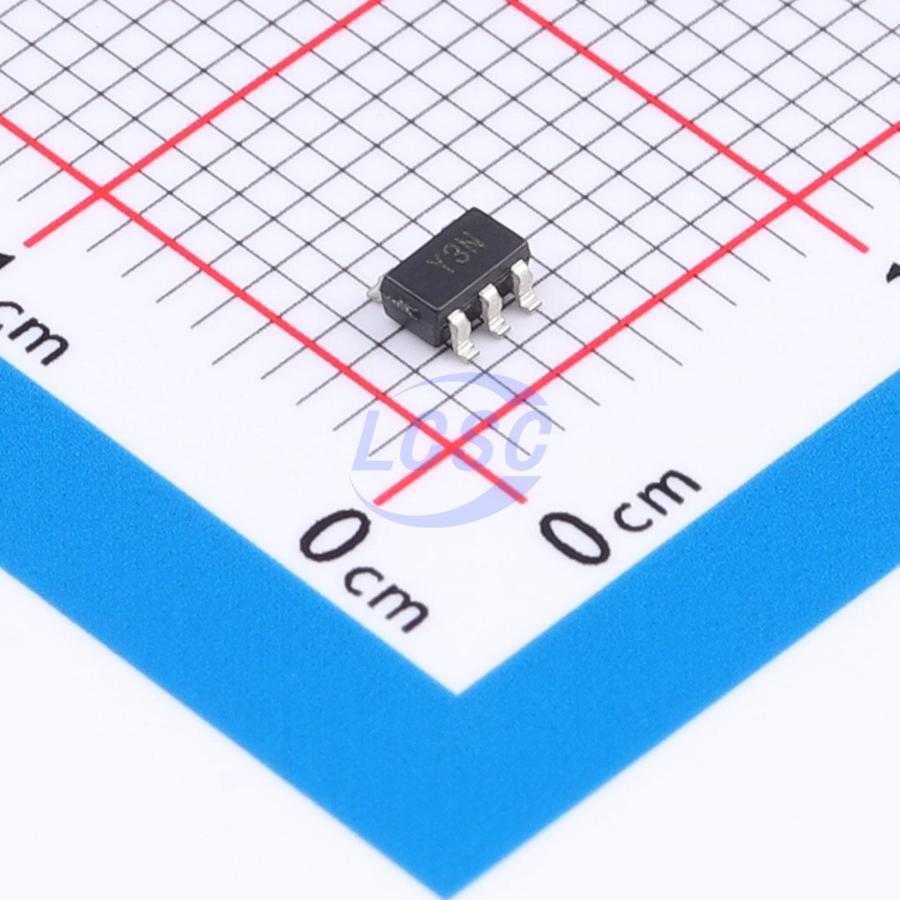

AD8211WYRJZ-R7

The AD8211 is a high voltage, precision current shunt amplifier. It features a set gain of 20 V/V, with a typical ±0.35% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. Excellent common - mode rejection from -2 V to +65 V is independent of the 5 V supply. The AD8211 performs unidirectional current measurements across a shunt resistor in a variety of industrial and automotive applications, such as motor control, solenoid control, or battery management. Special circuitry is devoted to output linearity being maintained throughout the input differential voltage range of 0 mV to 250 mV, regardless of the common - mode voltage present. The AD8211 has an operating temperature range of -40°C to +125°C and is offered in a small 5 - lead SOT package.

Applications

• High - side current sensing
• Motor controls
• Transmission controls
• Engine management
• Suspension controls
• Vehicle dynamic controls
• DC - to - dc converters

Key features

• Qualified for automotive applications
• ±4000 human body model (HBM) electrostatic discharge (ESD)
• High common - mode input voltage range: -2 V to +65 V
• Continuous input voltage range: -3 V to +68 V
• Buffered output voltage
• Wide operating temperature range 5 - lead SOT: -40°C to +125°C
• Excellent ac and dc performance
• 5 μV/°C typical offset drift
• -13 ppm/°C typical gain vs. temperature
• 120 dB typical common - mode rejection ratio (CMRR) at dc
