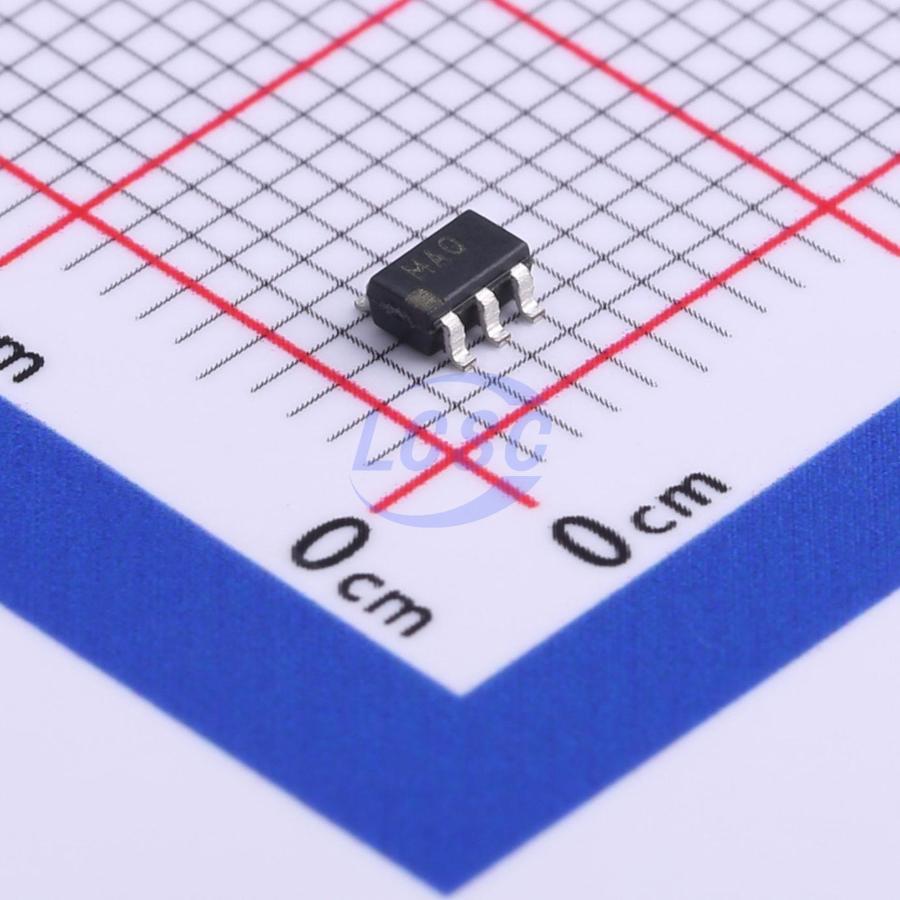

ADM6710KARJZ-REEL7

The ADM6710 is a low voltage, high accuracy supervisory circuit. The device monitors up to four system supply voltages. The ADM6710 incorporates a variety of internally pretrimmed undervoltage threshold options for monitoring 1.8 V, 2.5 V, 3.0 V, 3.3 V and 5.0 V supply voltages. The ADM6710Q offers three adjustable thresholds for monitoring voltages down to 0.62 V. If a monitored power supply voltage falls below the minimum voltage threshold, a single active low output asserts, triggering a system reset. The output is open-drain with a weak internal pull-up to the monitored IN₂ supply (or to VCC in the case of the ADM6710Q) of typically 10 μA. After all voltages rise above the selected threshold level, the reset signal remains low for the reset timeout period (200 ms typical). The ADM6710 output remains valid as long as IN₁ or IN₂ exceeds 1 V, whereas for the ADM6710Q, the output remains valid as long as VCC exceeds 2 V. Unused monitored inputs must not be allowed to float or to be grounded, instead they must be connected to a supply voltage greater than their specified threshold voltages. The ADM6710 is available in a 6-lead SOT-23 package. The device operates over the extended temperature range of -40°C to +125°C.

Applications

• Telecommunications
• Microprocessor systems
• Desktop and notebook computers
• Data storage equipment
• Servers/workstations

Key features

• Accurate monitoring of up to four power supply voltages
• 5 factory set threshold options: 1.8 V, 2.5 V, 3.0 V, 3.3 V, 5 V
• Adjustable input threshold voltage = 0.62 V (±7.5% accuracy)
• 200 ms typical reset timeout
• Open-drain RESET output (10 μA internal pull-up)
• Reset output stage: active low, valid to IN₁ = 0 V or IN₂ = 1 V
• Low power consumption (35 μA)
• Power supply glitch immunity
• Specified from -40°C to +125°C
• 6-lead SOT-23 package
