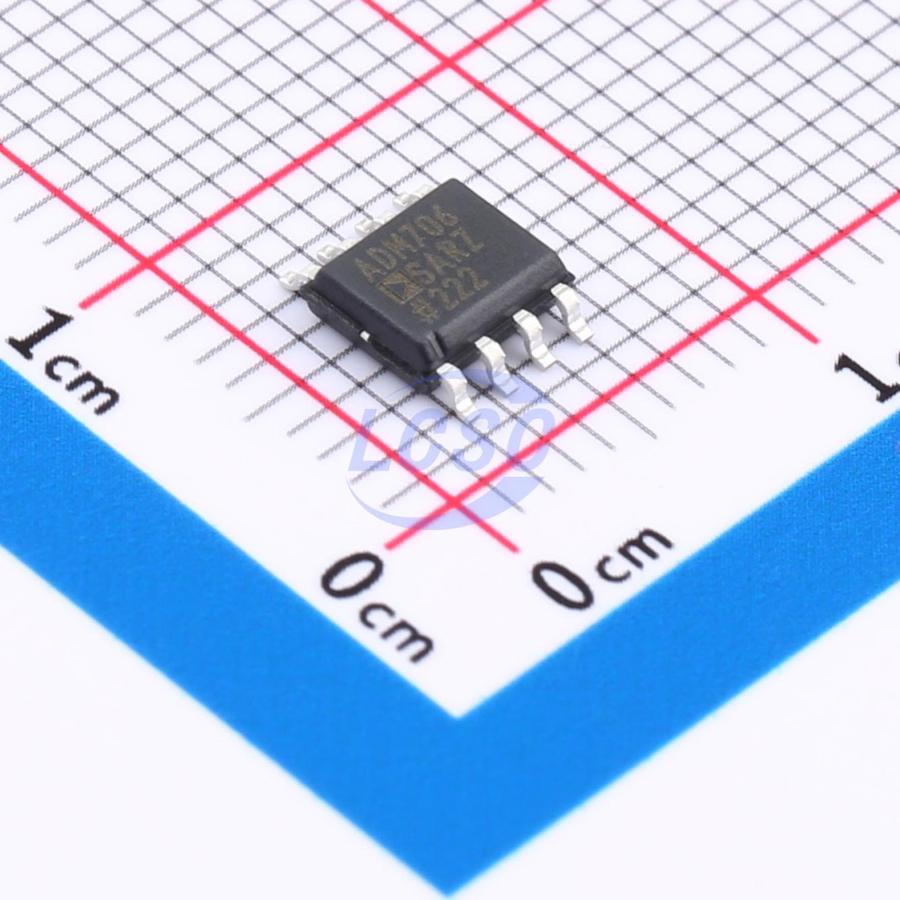

ADM706SARZ-REEL
200ms Active Low 3V~5.5V 1 SOIC-8 Supervisors RoHS
Microprocessor Supervisory Circuits, Voltage Monitoring
- Manufacturer
- ADI
- Manufacturer part #
- ADM706SARZ-REEL
- Store part #
- C70445
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C70445
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹188.05 | ₹188.05 |
| 10+ | ₹158.52 | ₹1,585.20 |
| 30+ | ₹142.24 | ₹4,267.20 |
| 100+ | ₹123.99 | ₹12,399.00 |
| 500+ | ₹115.96 | ₹57,980.00 |
| 1,000+ | ₹112.27 | ₹1,12,270.00 |
1 × ₹188.05
₹188.05
excl. GST
₹221.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADM706SARZ-REEL
₹188.05 for 1 + GST
Specifications
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 200uA
- Voltage - Supply
- 3V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The ADM706P/ADM706R/ADM706S/ADM706T and the ADM708R/ADM708S/ADM708T microprocessor supervisory circuits are suitable for monitoring either 3V or 3.3 V power supplies. The ADM706P/ADM706R/ADM706S/ADM706T provide power supply monitoring circuitry that generate a reset output during power-up, power-down, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. This activates if the watchdog input does not toggle within 1.6 sec. In addition, there is a 1.25 V threshold detector for a power fail warning, low battery detection, or to monitor an additional power supply. An active low debounced MR input is also included. The ADM706R, ADM706S, and ADM706T are identical except for the reset threshold monitor levels, which are 2.63 V, 2.93 V, and 3.08 V, respectively. The ADM706P is identical to the ADM706R in that the reset threshold is 2.63 V. It differs only in that it has an active high reset output. The ADM708R/ADM708S/ADM708T provide similar functionality as the ADM706R/ADM706S/ADM706T and only differ in that a watchdog timer function is not available. Instead, an active high reset output (RESET) is provided in addition to the active low (RESET) output. All devices are available in narrow 8-lead PDIP and 8-lead SOIC packages.
Applications
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
- Critical microprocessor monitoring
- Battery operated systems
- Portable instruments
Key features
- Precision supply voltage monitor
- 2.63 V (ADM706P, ADM706R, ADM708R)
- 2.93 V (ADM706S, ADM708S)
- 3.08 V (ADM706T, ADM708T)
- 100 μA quiescent current
- 200 ms reset pulse width
- Debounced manual reset input (MR)
- Independent watchdog timer 1.6 sec timeout (ADM706P, ADM706R, ADM706S)
- Reset output Active high (ADM706P) Active low (ADM706R, ADM706S, ADM706T) Both active high and active low (ADM708R, ADM708S, ADM708T)
- Voltage monitor for power fail or low battery warning
- Guaranteed RESET valid with Vcc = 1 V
- Superior upgrade for MAX706P/R/S/T, MAX708R/S/T
