ADM7150ACPZ-3.3-R7

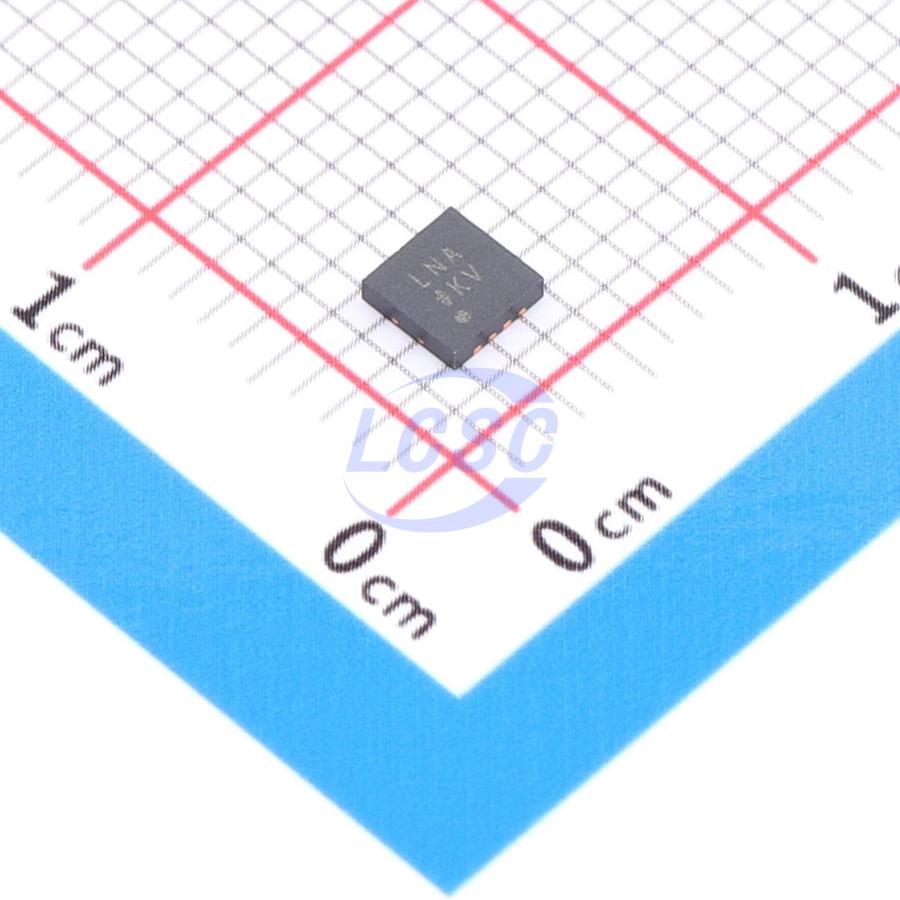

Linear Voltage Regulator IC Positive Fixed 1 Output 800mA LFCSP-8-EP(3x3)

LFCSP-8-EP(3x3)ROHS3 CompliantActive

800 mA, ultra-low noise, high PSRR, RF linear regulator

Manufacturer: ADI
Manufacturer part #: ADM7150ACPZ-3.3-R7
Store part #: C658437
Package / case: LFCSP-8-EP(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,499 in stock

#C658437

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹2,848.22	₹2,848.22
10+	₹2,714.99	₹27,149.90
30+	₹2,356.46	₹70,693.80
100+	₹2,155.10	₹2,15,510.00

Quantity (min 1)

1 × ₹2,848.22

₹2,848.22

excl. GST

₹3,360.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

ADM7150ACPZ-3.3-R7

₹2,848.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 4.3mA
Output Configuration: Positive
Operating Voltage: 16V
Output Current: 800mA
Features: Enable control;Built-in soft-start;Input under-voltage protection;Over Current Protection;Thermal shutdown;Short Circuit Protection;Noise bypass terminal
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.085 g

Overview

The ADM7150 is a low dropout (LDO) linear regulator powered by a 4.5 V to 16 V supply with a maximum output current of 800 mA. The device employs an advanced proprietary architecture to deliver high power supply rejection (greater than 90 dB from 1 kHz to 1 MHz), ultralow noise (<1.7 nV/√Hz), and excellent line and load transient response using a single 10 μF ceramic output capacitor. The ADM7150 offers fixed outputs of 1.8 V, 2.8 V, 3.0 V, 3.3 V, 4.5 V, 4.8 V, and 5.0 V. In addition, 16 fixed output voltages in the 1.5 V to 5.0 V range are available on request. The ADM7150 regulator has a typical output noise of 1.0 μV rms (100 Hz to 100 kHz, fixed output voltage) and a noise spectral density of 1.7 nV/√Hz from 10 kHz to 1 MHz. The ADM7150 is available in an 8-lead, 3 mm × 3 mm LFCSP and an 8-lead SOIC package, offering a compact footprint with excellent thermal performance. Suitable for low-profile, small form factor applications requiring up to 800 mA output current. For other output voltages, see the adjustable LDO ADM7151.

Applications

Applications sensitive to power supply noise: RF mixers, PLLs, VCOs, and PLLs with integrated VCOs
Communications and infrastructure
Cable DAC drivers
Backhaul and microwave links

Key features

Input voltage range: 4.5 V to 16 V
Maximum output current: 800 mA
Low noise: 100 Hz to 100 kHz total integrated noise: 1.0 μV rms; 70 Hz to 100 kHz total integrated noise: 1.6 μV rms
Noise spectral density: 1.7 nV/√Hz (typical, 10 kHz to 1 MHz)
PSRR at 400 mA load: >90 dB (1 kHz to 100 kHz, Vout = 5 V); >60 dB (1 MHz, Vout = 5 V)
Dropout voltage: 0.6 V (Vout = 5 V, 800 mA load)
Initial output accuracy: ±1%
Output accuracy over full line, load, and temperature range: ±2%
Quiescent current (IGND): 4.3 mA (no load)
Low shutdown current: 0.1 μA
Stable with 10 μF ceramic output capacitor
Fixed output voltage options: 1.8 V, 2.8 V, 3.0 V, 3.3 V, 4.5 V, 4.8 V, and 5.0 V (16 output voltages available from 1.5 V to 5.0 V)
Exposed pad 8-lead LFCSP and 8-lead SOIC packages
