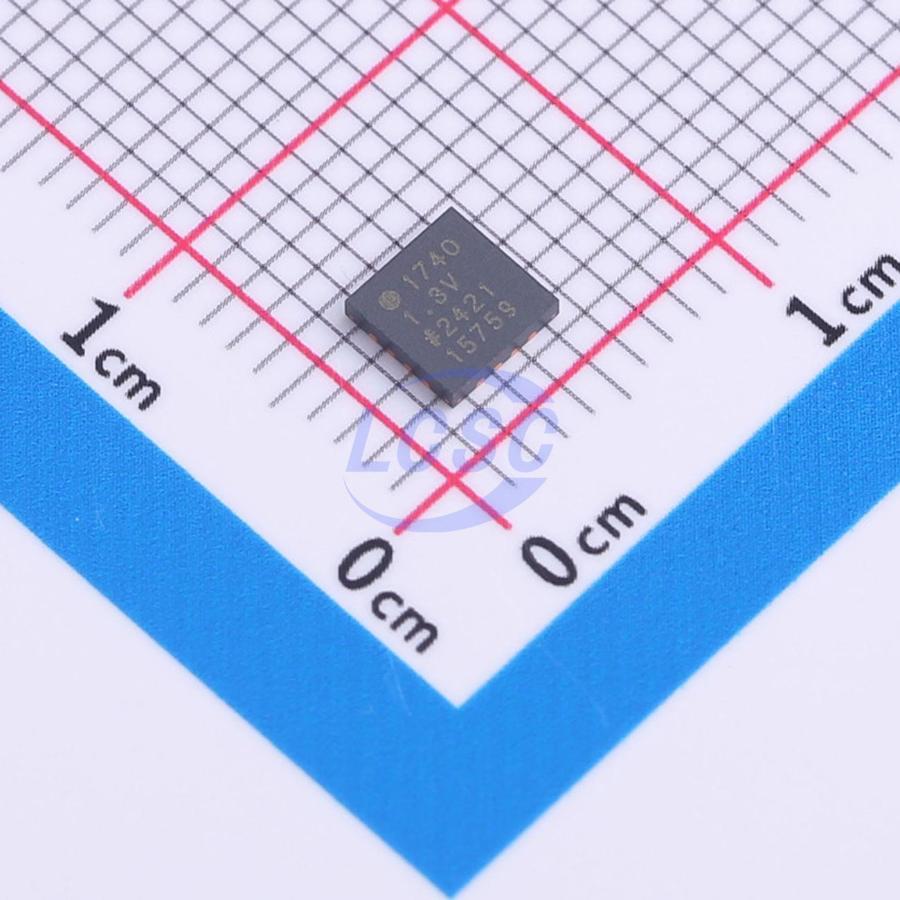

ADP1740ACPZ-1.3-R7

The ADP1740/ADP1741 are low dropout (LDO) CMOS linear regulators that operate from 1.6 V to 3.6 V and provide up to 2 A of output current. These low VIN/VOUT LDOs are ideal for regulation of nanometer FPGA geometries operating from 2.5 V down to 1.8 V I/O rails, and for powering core voltages down to 0.75 V. Using an advanced, proprietary architecture, the ADP1740/ ADP1741 provide high power supply rejection ratio (PSRR) and low noise, and achieve excellent line and load transient response with only a small 4.7 μF ceramic output capacitor. The ADP1740 is available in seven fixed output voltage options. The ADP1741 is an adjustable version that allows output voltages ranging from 0.75 V to 3.3 V via an external divider. The ADP1740/ADP1741 allow an external soft start capacitor to be connected to program the startup. A digital power-good output allows power system monitors to check the health of the output voltage. The ADP1740/ADP1741 are available in a 16-lead, 4 mmx4 mm LFCSP, making them not only very compact solutions, but also providing excellent thermal performance for applications that require up to 2 A of output current in a small, low profile footprint.

Applications

• Server computers
• Memory components
• Telecommunications equipment
• Network equipment
• DSP/FPGA/microprocessor supplies
• Instrumentation equipment/data acquisition systems

Key features

• Maximum output current: 2 A
• Input voltage range: 1.6 V to 3.6 V
• Low shutdown current: 2 μA
• Low dropout voltage: 160 mV at 2 A load
• Initial accuracy: ±1%
• Accuracy over line, load, and temperature: ±2%
• 7 fixed output voltage options with soft start: 0.75 V to 2.5 V (ADP1740)
• Adjustable output voltage options with soft start: 0.75 V to 3.3 V (ADP1741)
• High PSRR 65 dB at 1 kHz 65 dB at 10 kHz 54 dB at 100 kHz
• 23 μV rms at 0.75 V output
• Stable with small 4.7 μF ceramic output capacitor
• Excellent load and line transient response
• Current-limit and thermal overload protection
• Power-good indicator
• Logic-controlled enable
• Reverse current protection
