Tokmas

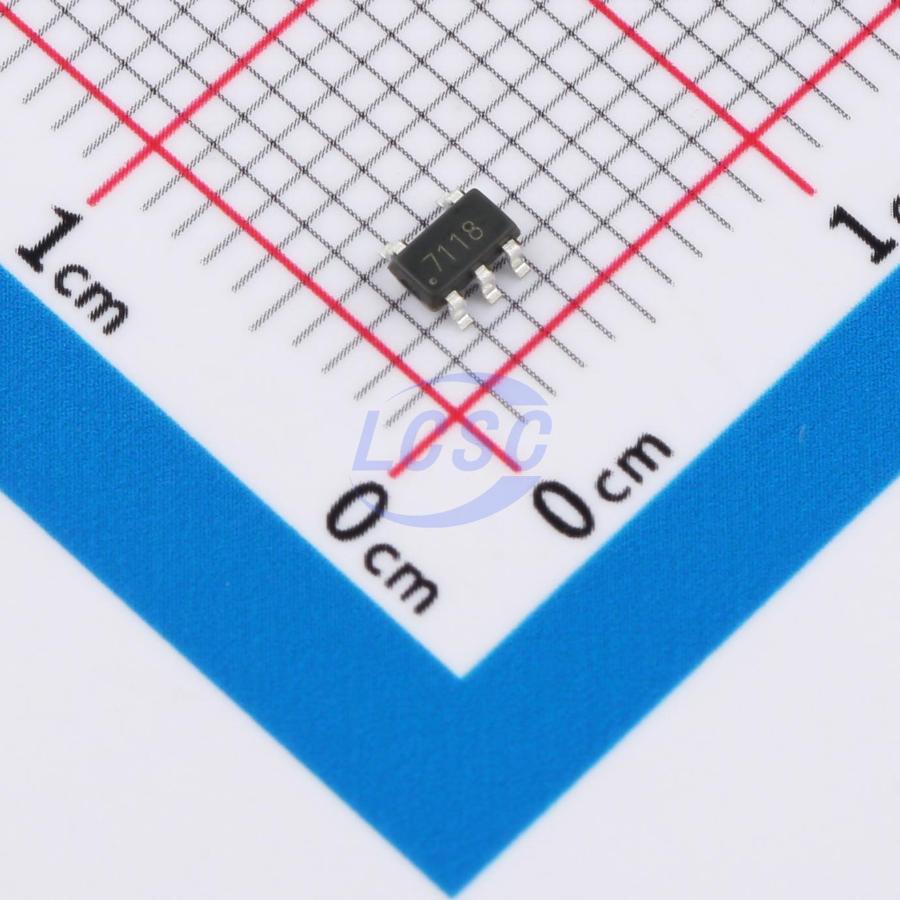

ADP7118AUJZ-R7(TOKMAS)

Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

IC REG LINEAR 300mA SOT-23-5

Manufacturer: Tokmas
Manufacturer part #: ADP7118AUJZ-R7(TOKMAS)
Store part #: C49383091
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,547 in stock

#C49383091

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹103.87	₹103.87
10+	₹93.66	₹936.60
30+	₹88.23	₹2,646.90
100+	₹81.93	₹8,193.00
500+	₹79.10	₹39,550.00
1,000+	₹77.79	₹77,790.00

Quantity (min 1)

1 × ₹103.87

₹103.87

excl. GST

₹122.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ADP7118AUJZ-R7(TOKMAS)

₹103.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 40uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 20V
Output Type: Adjustable
Features: Built-in soft-start;Enable control;Reverse polarity voltage protection;Over Current Protection;Thermal shutdown;Input under-voltage protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

This device is a low quiescent current, low-noise LDO linear regulator powered by a 2.7V to 20V supply, capable of delivering up to 300mA output current. The typical quiescent current under full-load conditions is as low as 1mA, and the typical shutdown current consumption is as low as 1.2uA, making it well suited for portable devices. The architecture allows output voltage adjustment via an external resistor divider, or a fixed output voltage version can be selected. For stable operation, an output capacitor with ESR less than 0.3Ω, ESL less than 2nH, and a minimum capacitance of 2.2uF is recommended, along with a 2.2uF bypass capacitor connected from input to ground to reduce PCB layout sensitivity.

Applications

Communications and Infrastructure
Medical and Healthcare
Industrial and Instrumentation

Key features

Low noise: 10 uVrms (IOUT = 300 mA)
High PSRR: 100 dB (10 Hz), 91 dB (10 kHz), 62 dB (100 kHz)
Wide input voltage range: 2.7 V to 20 V
Output voltage range: 1.2 V to VIN - VDO
Fixed output voltage versions: 3.3V and 5V
Output current: 300 mA
Initial accuracy: < ±1%
Low dropout: 67 mV (IOUT = 50 mA), 203 mV (IOUT = 150 mA), 450 mV (IOUT = 300 mA)
Internal soft-start
Low quiescent current: IGND = 40 uA (typical, no load)
Low shutdown current: 1.2 uA
Precision enable
Reverse battery protection
