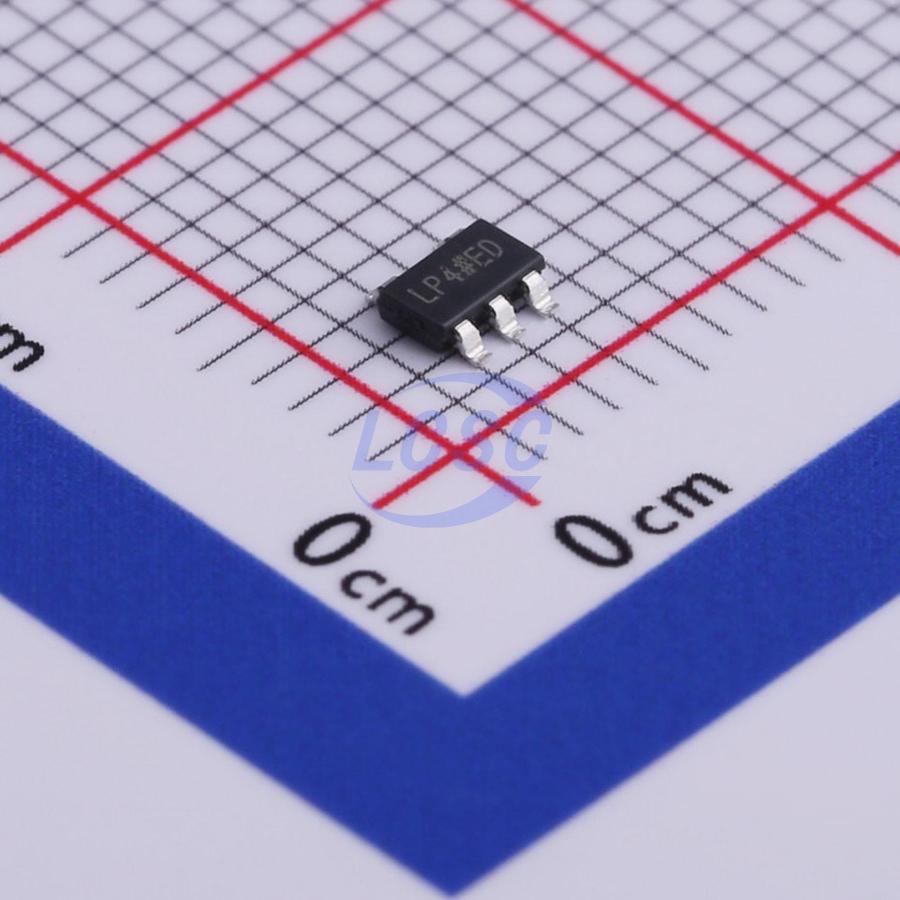

ADP7142AUJZ-R7

The ADP7142 is a CMOS, low dropout (LDO) linear regulator operating from a 2.7 V to 40 V supply with a maximum output current of 200 mA. This high input voltage LDO is designed to regulate high-performance analog and mixed-signal circuits powered from 40 V down to 1.2 V. Employing an advanced proprietary architecture, the device delivers high power supply rejection, low noise, and excellent line and load transient response with only a single 2.2 μF small ceramic output capacitor. The ADP7142 output noise is 11 μV rms, independent of fixed output voltage options at 5 V and below. The ADP7142 offers 16 fixed output voltage options. The following voltage versions are available from stock: 1.2 V (adjustable), 1.8 V, 2.5 V, 3.3 V, and 5.0 V. The following voltage versions are available upon special request: 1.5 V, 1.85 V, 2.0 V, 2.2 V, 2.75 V, 2.8 V, 2.85 V, 3.8 V, 4.2 V, and 4.6 V. Each fixed output voltage can be adjusted above its initial setpoint using an external feedback resistor divider. This allows the ADP7142 to provide output voltages from 1.2 V to VIN − VDO with high PSRR and low noise. The LFCSP and SOIC packages support user-programmable soft start via an external capacitor. The ADP7142 is available in a compact 6-lead, 2 mm × 2 mm LFCSP package that offers excellent thermal performance, suitable for thin, small form factor applications requiring up to 200 mA output current. The ADP7142 is also available in a 5-lead TSOT package and an 8-lead SOIC package.

Applications

• Suited for noise-sensitive ADC and DAC circuits, precision amplifiers, and VCO VTUNE control supply
• Communications and infrastructure
• Medical and healthcare
• Industrial and instrumentation

Key features

• Low noise: 11 μV rms, independent of fixed output voltage
• PSRR: 88 dB @ 10 kHz, 68 dB @ 100 kHz, 50 dB @ 1 MHz (Vout ≤ 5 V, Vin = 7 V)
• Input voltage range: 2.7 V to 40 V
• Maximum output current: 200 mA
• Initial accuracy: ±0.8%
• Accuracy over line, load, and temperature: ±1.1% (Tj = -40°C to +85°C); ±1.8% (Tj = -40°C to +125°C)
• Low dropout: 200 mV (typical, 200 mA load, Vout = 5 V)
• User-programmable soft-start (LFCSP and SOIC packages only)
• Low quiescent current, IGND = 50 μA (typical, no load)
• Low shutdown current: 1.8 μA (Vin = 5 V); 3.0 μA (Vin = 40 V)
• Stable with 2.2 μF small ceramic output capacitor
• Fixed output voltage options: 1.8 V, 2.5 V, 3.3 V, and 5.0 V, with 16 standard voltages available in the 1.2 V to 5.0 V range
• Adjustable output voltage range: 1.2 V to Vin - VDO (output adjustable above initial setpoint)
• Precision enable
• 2 mm × 2 mm 6-lead LFCSP, 8-lead SOIC, 5-lead TSOT
• Supported by ADIsimPower tool
