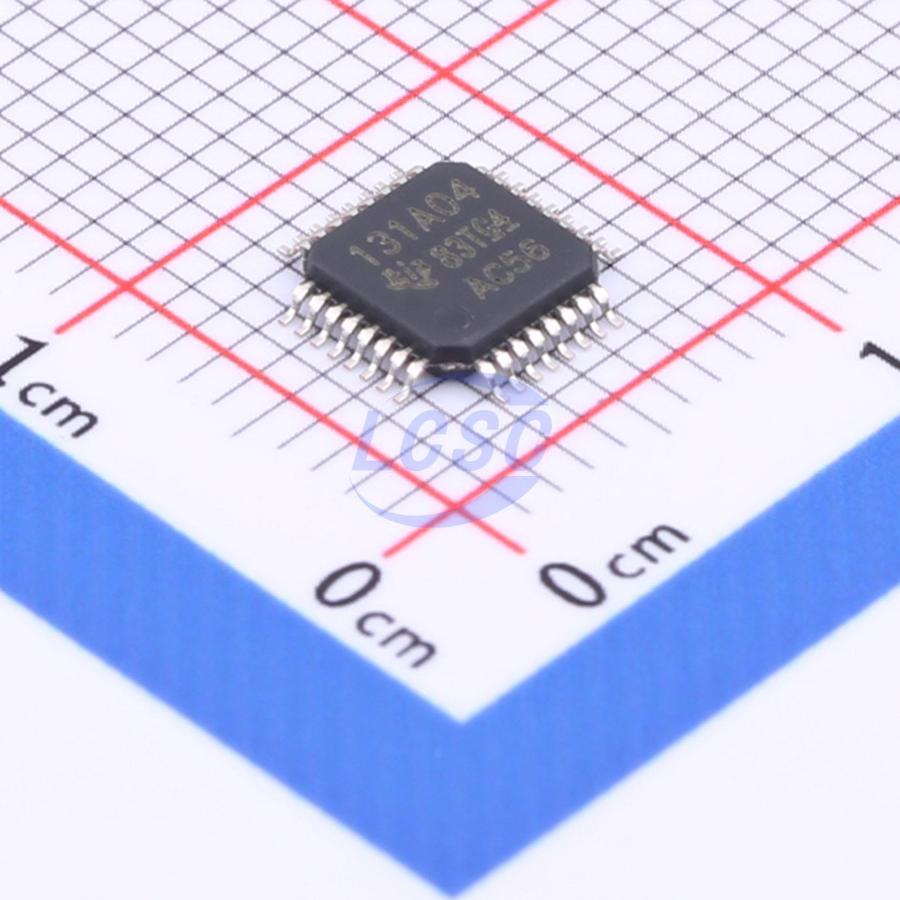

ADS131A04IPBSR
SPI 3V~5.5V TQFP-32(5x5) Analog Front End (AFE) RoHS
ADS131A02, ADS131A04 Dual or Quad Channel 24-Bit 128kSPS Synchronous Sampling Δ-Σ ADC
- Manufacturer
- TI
- Manufacturer part #
- ADS131A04IPBSR
- Store part #
- C882747
- Package / case
- TQFP-32(5x5)
- Category
- Analog Front End (AFE)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,796 in stock
#C882747
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹919.72 | ₹919.72 |
| 10+ | ₹790.78 | ₹7,907.80 |
| 30+ | ₹678.82 | ₹20,364.60 |
| 100+ | ₹612.93 | ₹61,293.00 |
1 × ₹919.72
₹919.72
excl. GST
₹1,085.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ADS131A04IPBSR
₹919.72 for 1 + GST
Specifications
- Clock Frequency
- 16.384MHz;0.4MHz~25MHz
- number of channels
- 4
- Voltage Reference Value
- 2.442V;4V
- Interface
- SPI
- Resolution(Bits)
- 24;128kHz
- S/N Ratio
- 111dB
- Voltage - Supply
- 3V~5.5V
- Function
- Simultaneous sampling control;Internal reference source;Fault detection
- Operating Temperature
- -40℃~+125℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
The ADS131A02 and ADS131A04 are dual-channel and quad-channel synchronous sampling 24-bit ΔΣ ADCs. The ADS131A02 and ADS131A04 feature wide dynamic range, scalable data rates up to 128kSPS, and integrated fault monitors, making them well-suited for energy monitoring, grid protection, and control applications. The ADC inputs can be connected directly and independently to resistor divider networks, current transformers, or Rogowski coils to measure voltage or current. Both devices offer flexible power supply options, including an internal negative charge pump, to maximize effective resolution and are ideal for wide dynamic range applications. Both devices provide asynchronous and synchronous master-slave interface options, enabling flexible ADC configuration implementation for a single system consisting of multiple daisy-chained devices. The interface includes multiple interface checks, ADC startup checks, and data integrity check features to report errors within the ADC and during data transmission. This complete AFE solution is available in a 32-pin TQFP package, rated for an industrial temperature range of -40°C to +125°C.
Applications
- Power protection: circuit breaker and relay protection
- Energy metering: single-phase, multi-phase, power quality
- Test and measurement
- Battery test systems
- Data acquisition systems
Key features
- Dual or quad channel synchronous sampling differential input data rate: up to 128kSPS
- High performance:
- Single-channel accuracy: better than 0.1% over 10,000:1 dynamic range
- Effective resolution: 20.6 bits (8kSPS)
- Total Harmonic Distortion (THD): -100dB at 50Hz and 60Hz
- Integrated negative charge pump allows absolute input voltage below ground
- Flexible analog supply options:
- With negative charge pump: 3.0V to 3.45V
- Single supply: 3.3V to 5.5V
- Dual supply: ±2.5V
- Digital supply: 1.65V to 3.6V
- ADC self-test
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADS131A04IPBS#C2861481TI · TQFP-32(5x5) | TI | TQFP-32(5x5) | 59 | ₹1,323.87 · 59 in stock | View |
