YAGEODatasheet (PDF)

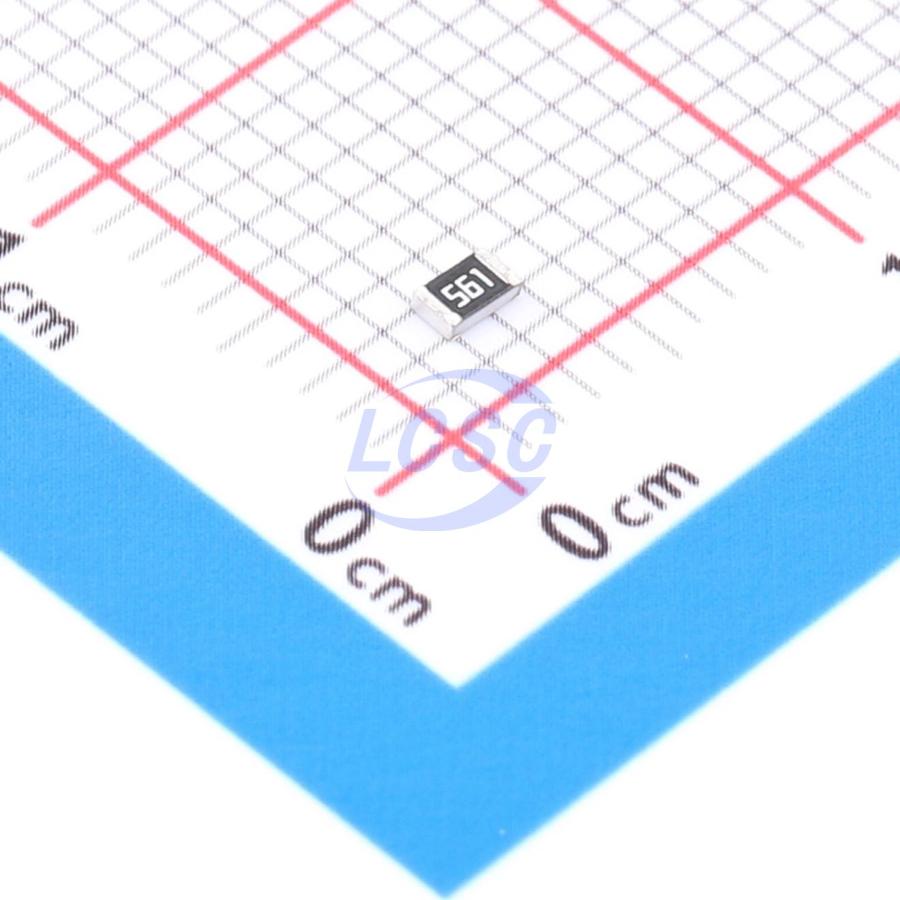

AF0805JR-07560RL
125mW 560Ω 150V Thick Film Resistor ±100ppm/℃ ±5% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 560Ω ±5% 125mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- AF0805JR-07560RL
- Store part #
- C2100079
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C2100079
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹0.7144 | ₹35.72 |
| 500+ | ₹0.7012 | ₹350.60 |
| 1,500+ | ₹0.688 | ₹1,032.00 |
| 5,000+ | ₹0.6747 | ₹3,373.50 |
50 × ₹0.7144
₹35.72
excl. GST
₹42.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AF0805JR-07560RL
₹35.72 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 560Ω
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.027 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS-05K561JT#C139857FH · 0805 | FH | 0805 | 200 | ₹0.2381 · 200 in stock | View |
 | 0805W8J0561T5E#C25319UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 2,40,000 | ₹0.4498 · 2,40,000 in stock | View |
 | CQ05W8J0561T5E#C2771170UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 5,000 | ₹0.3572 · 5,000 in stock | View |
 | FRC0805J561 TS#C2907335FOJAN · 0805 | FOJAN | 0805 | 2,31,000 | ₹0.4366 · 2,31,000 in stock | View |
 | FRQ0805J561 TS#C2934404FOJAN · 0805 | FOJAN | 0805 | 3,700 | ₹0.5027 · 3,700 in stock | View |
