YAGEODatasheet (PDF)

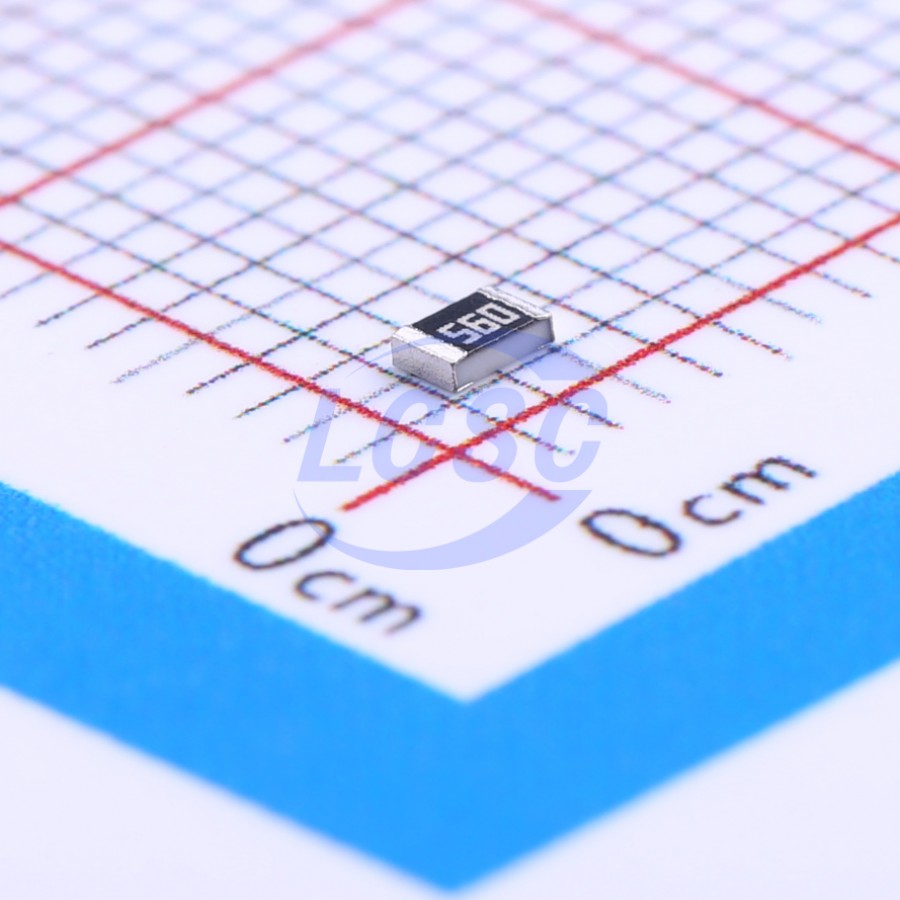

AF0805JR-0756RL
125mW 56Ω 150V Thick Film Resistor ±100ppm/℃ ±5% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 56Ω ±5% 125mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- AF0805JR-0756RL
- Store part #
- C144135
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C144135
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.9261 | ₹92.61 |
| 1,000+ | ₹0.7409 | ₹740.90 |
| 5,000+ | ₹0.6218 | ₹3,109.00 |
| 10,000+ | ₹0.5557 | ₹5,557.00 |
| 50,000+ | ₹0.4895 | ₹24,475.00 |
| 1,00,000+ | ₹0.4631 | ₹46,310.00 |
100 × ₹0.9261
₹92.61
excl. GST
₹109.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AF0805JR-0756RL
₹92.61 for 100 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 56Ω
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC0805JR-0756RL#C113305YAGEO · 0805 | YAGEO | 0805 | 700 | ₹0.6615 · 700 in stock | View |
 | RS-05K560JT#C118328FH · 0805 | FH | 0805 | 4,000 | ₹0.1985 · 4,000 in stock | View |
 | 0805W8J0560T5E#C25320UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 3,500 | ₹0.2249 · 3,500 in stock | View |
 | RMC0805565%N#C269577TyoHM · 0805 | TyoHM | 0805 | 450 | ₹0.6615 · 450 in stock | View |
 | FRC0805J560 TS#C2907337FOJAN · 0805 | FOJAN | 0805 | 1,34,100 | ₹0.3969 · 1,34,100 in stock | View |
