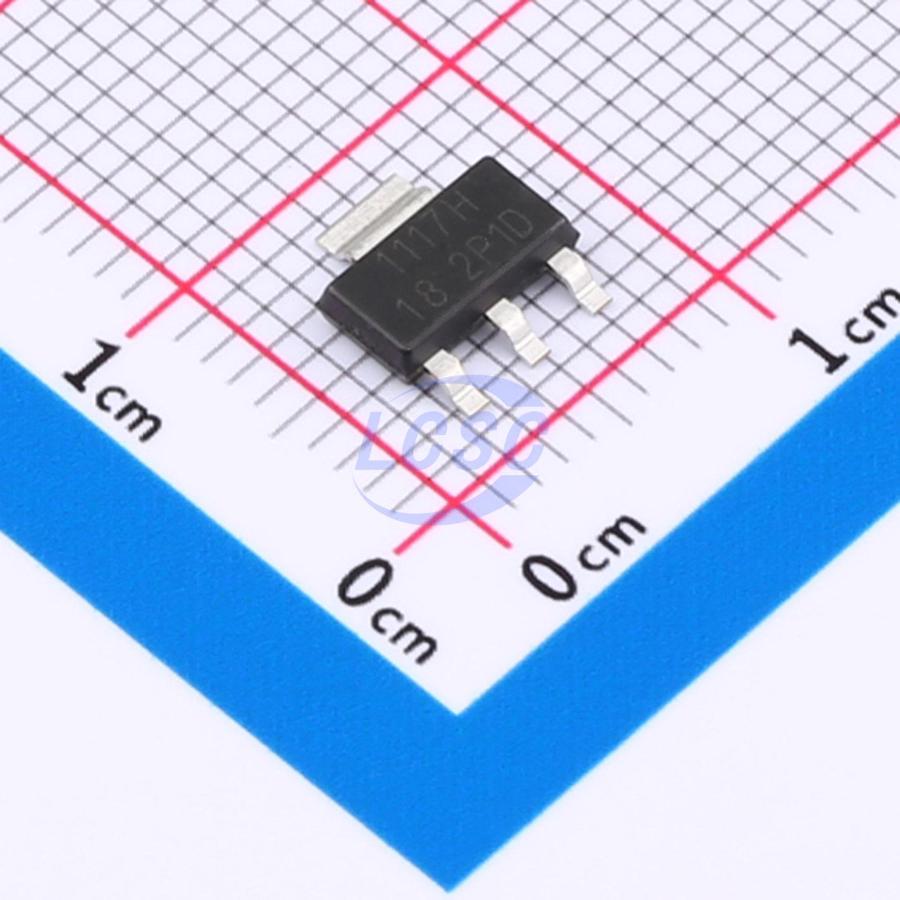

AH1117CLTR18
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3
SOT-223-3RoHSActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- BL
- Manufacturer part #
- AH1117CLTR18
- Store part #
- C2932498
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C2932498
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.15 | ₹103.00 |
| 200+ | ₹4.04 | ₹808.00 |
| 600+ | ₹3.43 | ₹2,058.00 |
| 2,500+ | ₹2.92 | ₹7,300.00 |
| 10,000+ | ₹2.61 | ₹26,100.00 |
| 20,000+ | ₹2.43 | ₹48,600.00 |
20 × ₹5.15
₹103.00
excl. GST
₹121.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AH1117CLTR18
₹103.00 for 20 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.252 g
Overview
AH1117 offers thermal shut down functions to assure stability of chip and power system. Trimming technique is used to guarantee output voltage accuracy within ±2%. AH1117 is available in SOT-223, TO-252 power packages.
Applications
- DVB
- Computer Mother Board, Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
- Post Regulators for Switching Supplies
Key features
- Maximum output current is 1A
- Range of operation input voltage: Max 15V
- Line regulation: 0.1%/V (typ.)
- Load regulation: 10mV (typ.)
- Environment Temperature: -20°C~85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL1117-18CX#C78971BL · SOT-223-4 | BL | SOT-223-4 | 5,030 | ₹7.46 · 5,030 in stock | View |
