AICDatasheet (PDF)

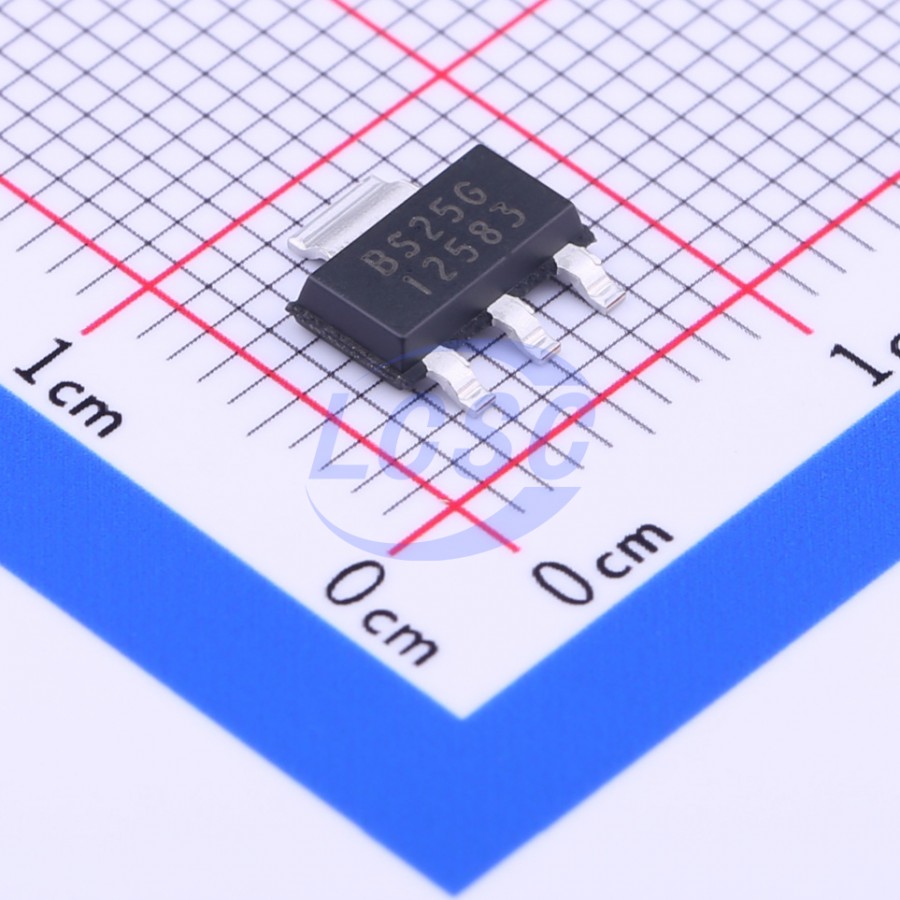

AIC1117A-25GYTR
2.5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
1A Low Dropout Positive Regulator
- Manufacturer
- AIC
- Manufacturer part #
- AIC1117A-25GYTR
- Store part #
- C238209
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,028 in stock
#C238209
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹23.68 | ₹23.68 |
| 10+ | ₹20.80 | ₹208.00 |
| 30+ | ₹19.57 | ₹587.10 |
| 100+ | ₹18.03 | ₹1,803.00 |
| 500+ | ₹17.36 | ₹8,680.00 |
| 1,000+ | ₹15.48 | ₹15,480.00 |
1 × ₹23.68
₹23.68
excl. GST
₹27.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AIC1117A-25GYTR
₹23.68 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 7V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The AIC1117A is a low dropout, three terminals regulator designed to provide output current up to 1A. The device is available in an adjustable version and fixed output voltage of 1.8V, 2.5V and 3.3V. Dropout voltage of maximum of 1.5V is guaranteed at 1A output current. The quality of low dropout voltage and fast transient response make this device ideal for low voltage microprocessor applications. The AIC1117A requires output capacitance of a minimum of 10μF for stability. Built-in output current limiting and thermal limiting provide maximal protection to the AIC1117A against fault conditions.
Applications
- Active SCSI Terminators.
- Post Regulators for Switching Supplies.
- Battery Chargers.
- PC Add-On Card.
Key features
- Dropout Voltage 1.3V at 1A Output Current.
- Fast Transient Response.
- Line Regulation, typical at 0.015%.
- Load Regulation, typical at 0.1%
- Current Limiting and Thermal Protection.
- Adjustable Output Voltage or Fixed at 1.8V, 2.5V and 3.3V.
- Standard 3-Pin Power Packages.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJT1117B-2.5#C17703059JSCJ · SOT-223 | JSCJ | SOT-223 | 160 | ₹9.76 · 160 in stock | View |
 | MC33269MP-2.5/TR#C46614066HGSEMI · SOT-223 | HGSEMI | SOT-223 | 2,500 | ₹17.08 · 2,500 in stock | View |
 | SL1117-2.5#C33962564Slkor · SOT-223-3L | Slkor | SOT-223-3L | 980 | ₹5.44 · 980 in stock | View |
 | AMS1117-2.5#C963405JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 1,310 | ₹9.29 · 1,310 in stock | View |
 | LR1117CS25X#C2924689LRC · SOT-223-3 | LRC | SOT-223-3 | 720 | ₹9.78 · 720 in stock | View |
