AICDatasheet (PDF)

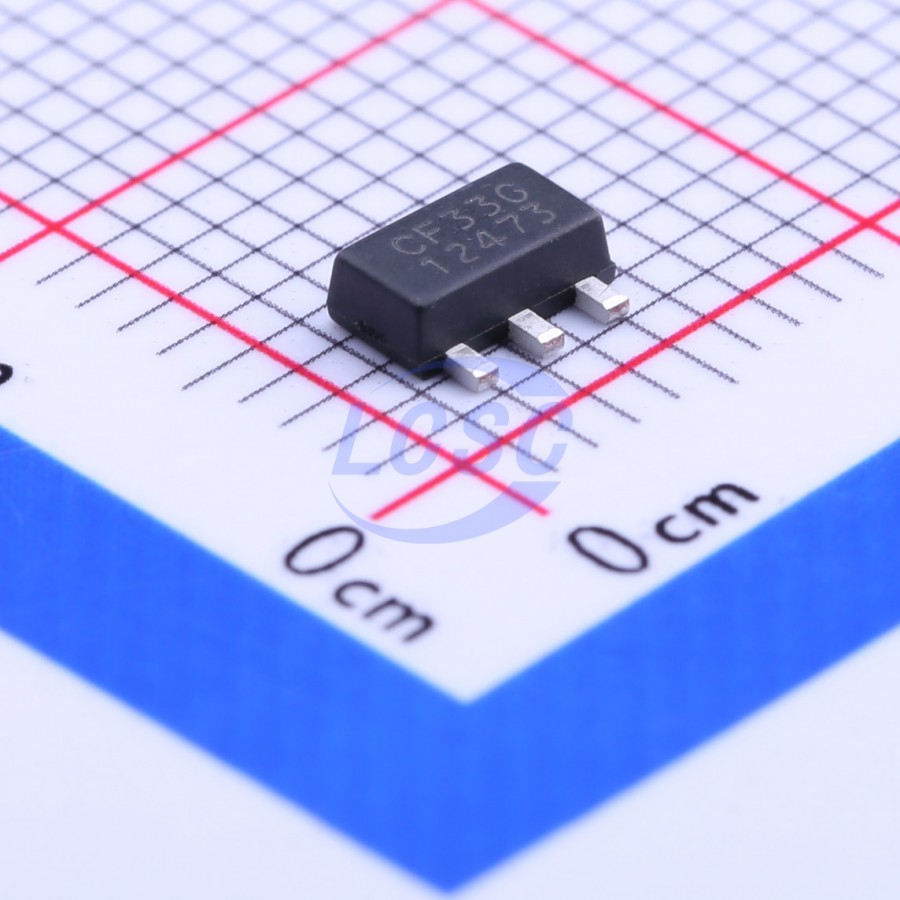

AIC1735-33GXTR
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- AIC
- Manufacturer part #
- AIC1735-33GXTR
- Store part #
- C211653
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C211653
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.40 | ₹142.00 |
| 50+ | ₹22.45 | ₹1,122.50 |
| 150+ | ₹19.90 | ₹2,985.00 |
| 1,000+ | ₹16.72 | ₹16,720.00 |
| 2,000+ | ₹15.31 | ₹30,620.00 |
| 5,000+ | ₹14.45 | ₹72,250.00 |
5 × ₹28.40
₹142.00
excl. GST
₹167.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AIC1735-33GXTR
₹142.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 65uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 12V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.148 g
Overview
The AIC1735 is a 3-pin low dropout linear regulator. The superior characteristics of the AIC1735 include zero base current loss, very low dropout voltage, and 2% accuracy output voltage. Typical ground current remains approximately 65μA, for loading ranging from zero to maximum. Dropout voltage turns substantially low when output current is 100mA. Built-in output current limiting and thermal limiting provide maximal protection to the AIC1735 against fault conditions. The AIC1735 is available in popular SOT-23, SOT-223, SOT-89 and TO-252 packages.
Applications
- CD-ROM Drivers.
- LAN Cards.
- Microprocessor.
- RAM Module.
- Wireless Communication Systems.
- Battery Powered Systems.
Key features
- Low Dropout Voltage of 650mV at 500mA Output Current (3V Output Version).
- Guaranteed 500mA Output Current.
- Low Ground Current at 65μA.
- 2% Accuracy Output Voltage of 1.8V/ 2.0V /2.5V /2.7V/ 3.0V/ 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V.
- Only needs 4.7μF Output Capacitor for Stability.
- Current and Thermal Limiting.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD7218A33PA1#C920499Mingda Microelectronics · SOT-89-3L | Mingda Microelectronics | SOT-89-3L | 85 | ₹23.35 · 85 in stock | View |
 | ME6118A33PG#C236721MICRONE · SOT-89-3 | MICRONE | SOT-89-3 | 28,870 | ₹13.49 · 28,870 in stock | View |
 | MD7219A33PA1#C2978489Mingda Microelectronics · SOT-89-3L | Mingda Microelectronics | SOT-89-3L | 165 | ₹21.21 · 165 in stock | View |
 | BL8075CC3TR33#C503467BL · SOT-89-3 | BL | SOT-89-3 | 2,185 | ₹19.74 · 2,185 in stock | View |
 | BL9153-33CC3TR#C976195BL · SOT-89-3L | BL | SOT-89-3L | On request | Price on request | Quote |
