Wuxi I-core ElecDatasheet (PDF)

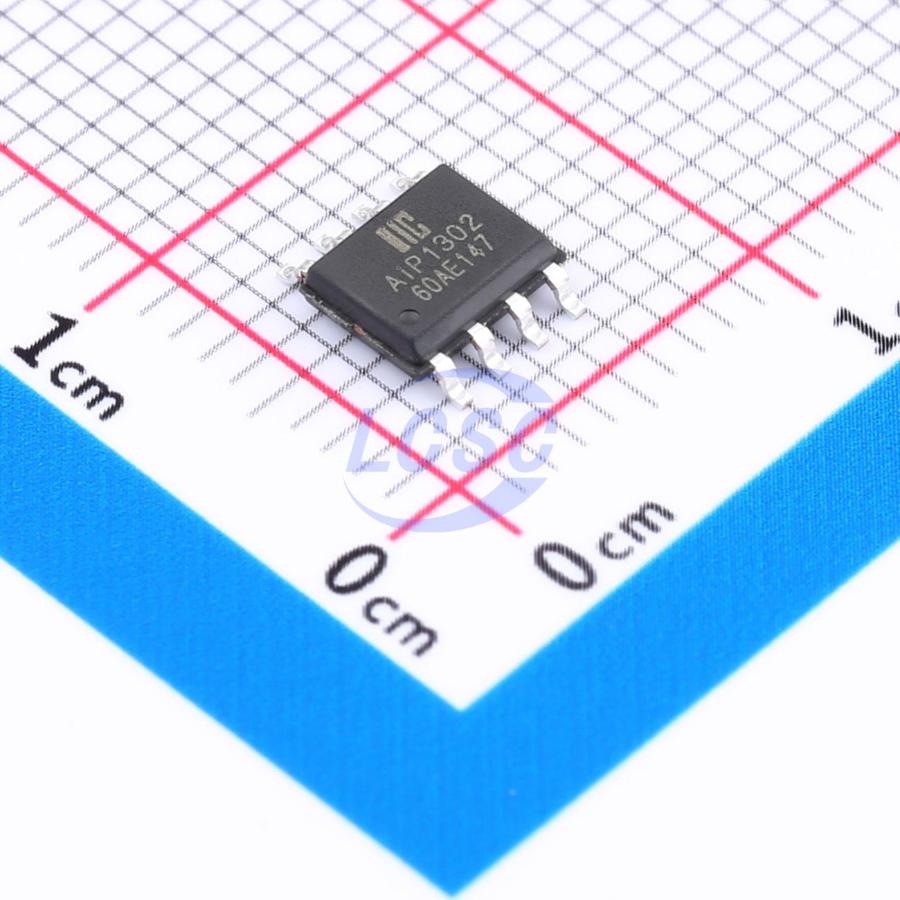

AiP1302SA8.TR
External SOP-8 Real Time Clocks
SOP-8RoHSActive
Trickle charge clock chip
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP1302SA8.TR
- Store part #
- C5183394
- Package / case
- SOP-8
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,955 in stock
#C5183394
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.59 | ₹147.95 |
| 50+ | ₹23.22 | ₹1,161.00 |
| 150+ | ₹20.49 | ₹3,073.50 |
| 500+ | ₹17.08 | ₹8,540.00 |
| 2,500+ | ₹14.82 | ₹37,050.00 |
| 4,000+ | ₹13.90 | ₹55,600.00 |
5 × ₹29.59
₹147.95
excl. GST
₹174.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP1302SA8.TR
₹147.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~5.5V
- Features
- InsideSRAM/NVRAM;Backup power management and battery charging
- crystal oscillator
- External
- Current - Supply
- 320nA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
AiP1302 is a trickle-charge clock chip featuring clock/calendar registers and 31 bytes of scratchpad RAM. The RTC/calendar provides seconds, minutes, hours, date, month, and year information. It supports automatic end-of-month date adjustment and leap year correction, selectable 12-hour or 24-hour format with AM/PM indication. Data transfer is accomplished via a 3-wire interface: CE, I/O, and SCLK.
Key features
- Clock counting with leap year adjustment, supporting year range up to 2100.
- 3-wire interface.
- Built-in 31-byte SRAM register.
- Operating voltage range: 2.0~5.5V.
- Operating current below 400nA (VCC2 = 2.0V).
- TTL-compatible logic levels.
- Backup power supply: battery or supercapacitor (≥0.1F).
- Available in SOP8, DIP8, TSSOP8, and DFN8 packages.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP1381SA8.TB#C52260252Wuxi I-core Elec · SOP-8 | Wuxi I-core Elec | SOP-8 | 10 | ₹18.46 · 10 in stock | View |
