Wuxi I-core ElecDatasheet (PDF)

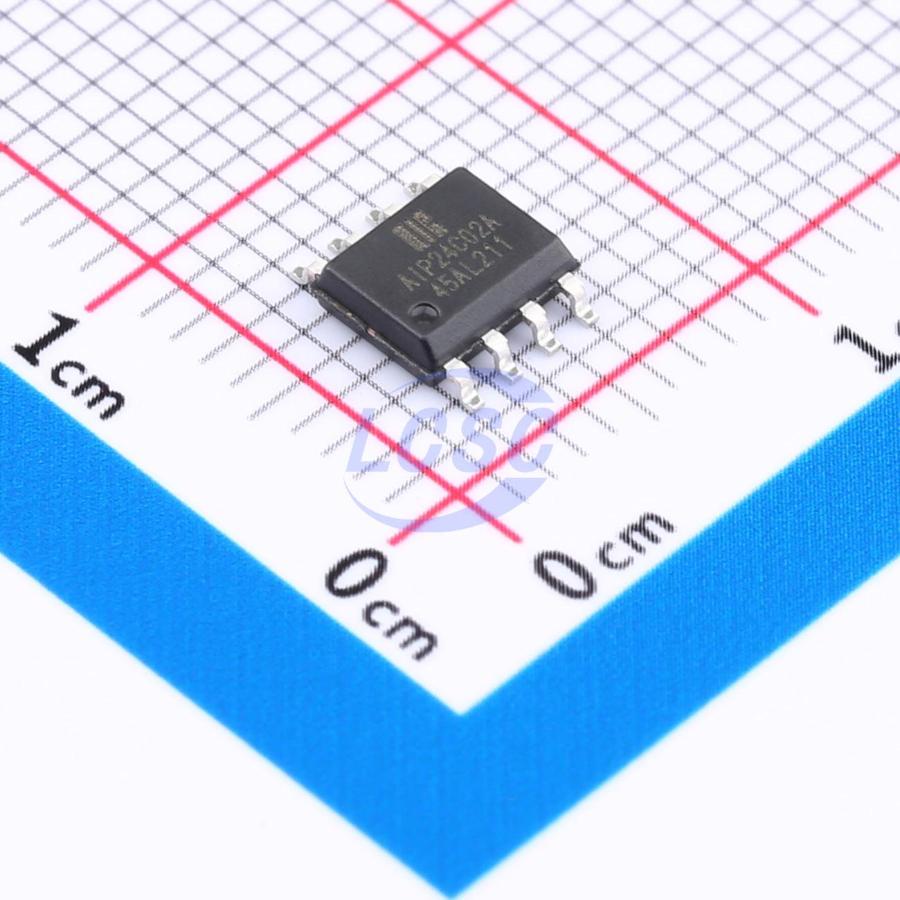

AIP24C02ASA8.TR
2Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
2-wire Serial EEPROM
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP24C02ASA8.TR
- Store part #
- C3024252
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,810 in stock
#C3024252
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹19.28 | ₹192.80 |
| 100+ | ₹14.91 | ₹1,491.00 |
| 300+ | ₹12.73 | ₹3,819.00 |
| 1,000+ | ₹11.09 | ₹11,090.00 |
| 4,000+ | ₹9.76 | ₹39,040.00 |
| 8,000+ | ₹9.12 | ₹72,960.00 |
10 × ₹19.28
₹192.80
excl. GST
₹227.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AIP24C02ASA8.TR
₹192.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.17 g
Overview
AiP24C02A is a 2048-bit serial EEPROM organized as 256×8 bits, internally divided into 32 pages of 8 bytes each. Random word addressing requires an 8-bit data word address. With an I2C interface, it is designed for low-power, low-voltage applications.
Key features
- Write-protect pin for hardware data protection
- Wide operating voltage range: 1.8V~5.5V
- Memory organization: 256x8 (2K)
- Two-wire serial interface
- Schmitt trigger inputs for noise suppression
- Bidirectional data transfer protocol
- Clock frequency: 400kHz (1.8V~2.5V) and 1MHz (2.5V~5.5V)
- 8-byte page (2K)
- Partial page write supported
- Self-timed write cycle (5ms max)
- High reliability: endurance: 1,000,000 write cycles; data retention: 100 years
- Package types: DIP8, SOP8, TSSOP8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP24C02SA8.TB#C52260221Wuxi I-core Elec · SOP-8 | Wuxi I-core Elec | SOP-8 | 380 | ₹18.57 · 380 in stock | View |
