Wuxi I-core ElecDatasheet (PDF)

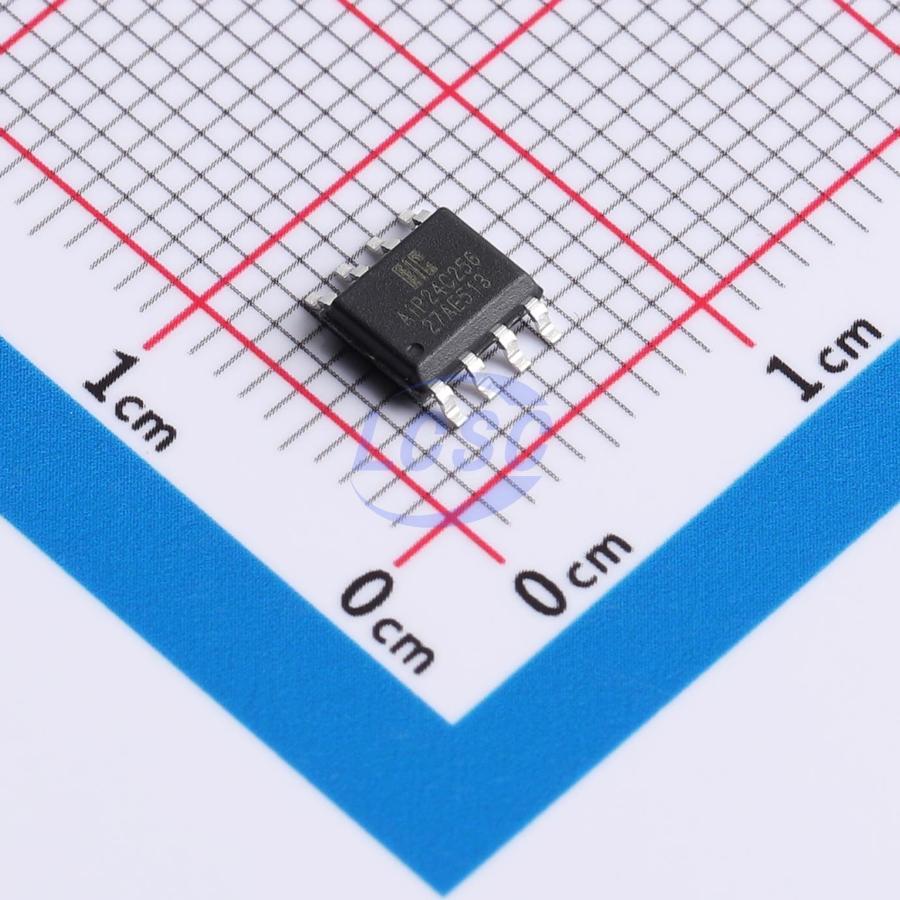

AiP24C256SA8.TR
256Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP24C256SA8.TR
- Store part #
- C42381206
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,265 in stock
#C42381206
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.10 | ₹175.50 |
| 50+ | ₹27.72 | ₹1,386.00 |
| 150+ | ₹24.54 | ₹3,681.00 |
| 500+ | ₹20.60 | ₹10,300.00 |
| 2,500+ | ₹18.84 | ₹47,100.00 |
| 4,000+ | ₹17.78 | ₹71,120.00 |
5 × ₹35.10
₹175.50
excl. GST
₹207.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP24C256SA8.TR
₹175.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.8V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 2,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.255 g
Overview
AiP24C256 is a 256K-bit serial EEPROM with a memory organization of 32768×8 bits, internally divided into 512 pages of 64 bytes each. The device features an I²C interface, suitable for low-power and low-voltage systems.
Key features
- Write-protect pin for hardware data protection
- Wide operating voltage range: 1.8V~5.5V
- Memory organization: 32768×8 (256K)
- Two-wire serial interface
- Schmitt trigger inputs for noise suppression
- Bidirectional data transfer protocol
- Clock frequency: 400kHz (1.8V~2.5V) and 1MHz (2.5V~5.5V)
- 64-byte page write mode
- Partial page write supported
- Additional write-lockable page
- Self-timed write cycle (5ms max)
- High reliability: 2,000,000 erase/write cycles; 100-year data retention
- Package options: DIP8, SOP8, TSSOP8
