Wuxi I-core ElecDatasheet (PDF)

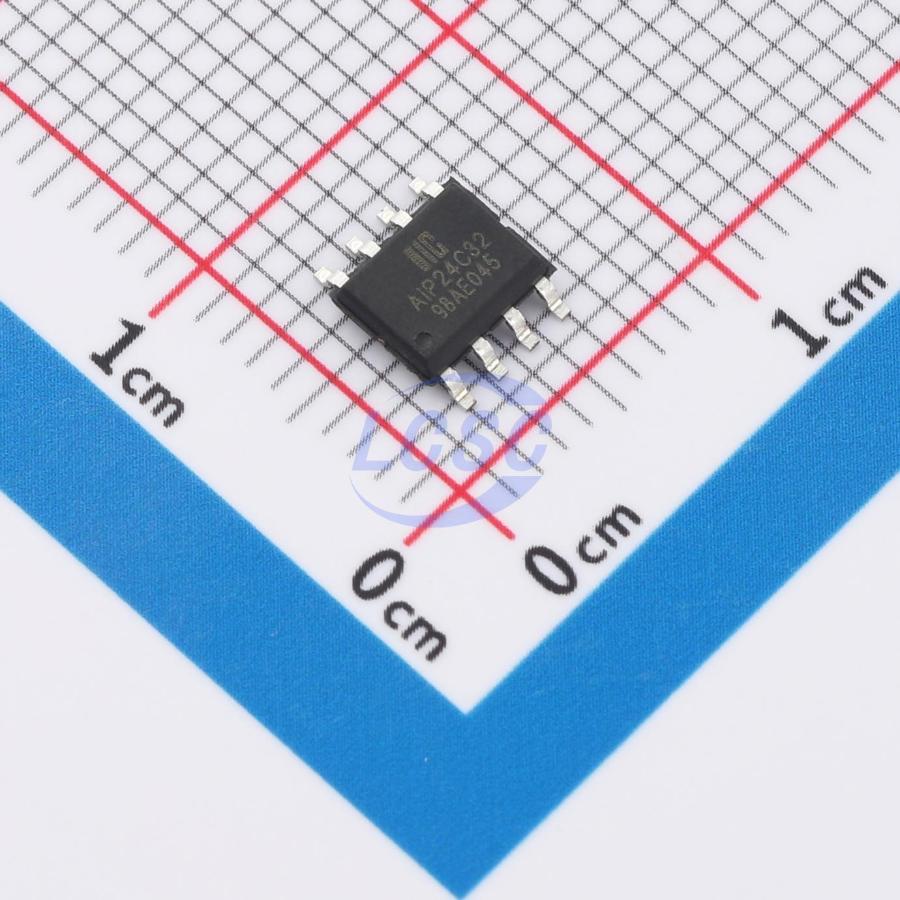

AiP24C32SA8.TR
32Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP24C32SA8.TR
- Store part #
- C52260230
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C52260230
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.18 | ₹95.90 |
| 50+ | ₹15.23 | ₹761.50 |
| 150+ | ₹13.26 | ₹1,989.00 |
| 500+ | ₹11.77 | ₹5,885.00 |
| 2,500+ | ₹10.58 | ₹26,450.00 |
| 4,000+ | ₹9.99 | ₹39,960.00 |
5 × ₹19.18
₹95.90
excl. GST
₹113.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP24C32SA8.TR
₹95.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
AiP24C32 is a 32K-bit serial EEPROM with a memory organization of 4096×8 bits. The device is internally organized into 128 pages of 32 bytes each, requiring a 12-bit data word address for random word addressing. It features an I²C interface, making it suitable for low-power, low-voltage systems.
Key features
- Write-protect pin for hardware data protection
- Wide operating voltage range: 1.8V~5.5V
- Memory array organized as 4096×8
- Two-wire serial interface
- Schmitt trigger inputs for noise suppression
- Bidirectional data transfer protocol
- Clock frequency: 400kHz and 1MHz
- 32-byte page write operation
- Partial page write supported
- Self-timed write cycle
- High reliability: 1,000,000 write/erase cycles, 100-year data retention
- Extended operating temperature range
- Available in DIP8, SOP8, TSSOP8 packages
