Wuxi I-core Elec

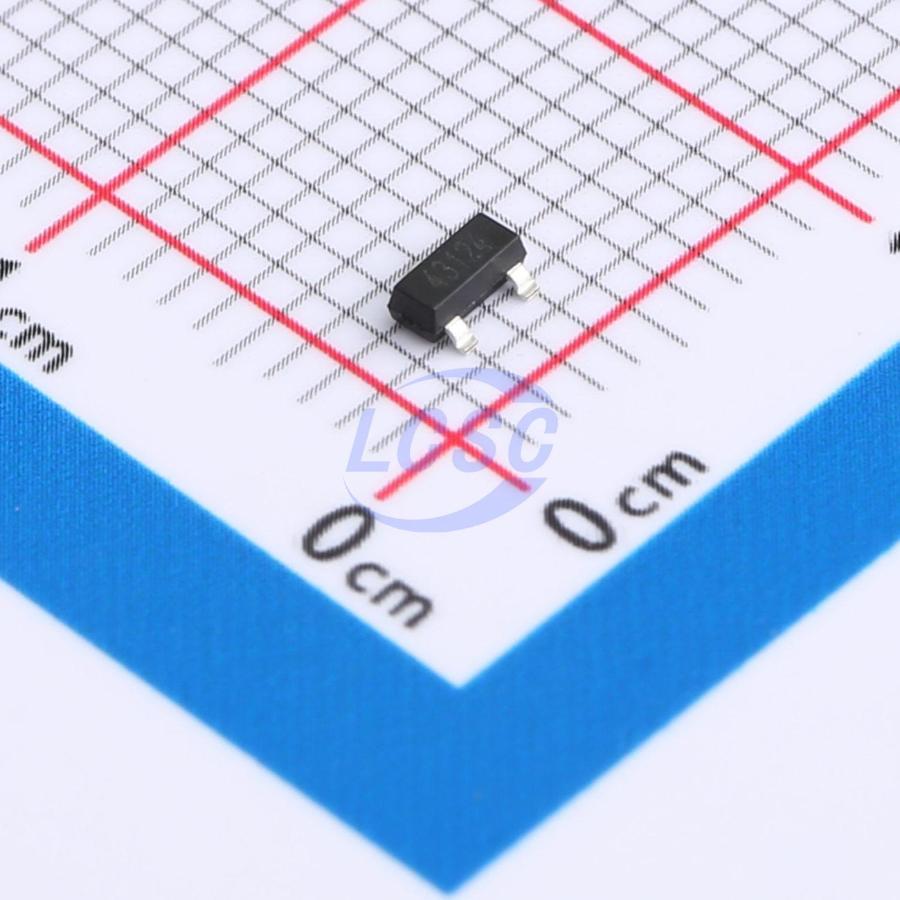

AiP431GA23.TR

Linear Voltage Regulator IC Positive Adjustable 1 Output 100mA SOT-23

SOT-23RoHSActive

IC REG LINEAR 2.5V~36V 100mA SOT-23

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP431GA23.TR
Store part #: C7437293
Package / case: SOT-23
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,010 in stock

#C7437293

Stock & price checked 40 h ago

Quantity	Unit price	Pack price
10+	₹11.03	₹110.30
100+	₹8.53	₹853.00
300+	₹7.29	₹2,187.00
3,000+	₹6.35	₹19,050.00
6,000+	₹5.60	₹33,600.00
9,000+	₹5.21	₹46,890.00

Quantity (min 10, multiples of 10)

10 × ₹11.03

₹110.30

excl. GST

₹130.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP431GA23.TR

₹110.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.5V~36V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 400uA
Output Configuration: Positive
Output Current: 100mA
Operating Voltage: 36V
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.026 g

Overview

AiP431/AiP432 are three-terminal adjustable voltage reference circuits that meet specified thermal stability requirements across both commercial and industrial temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5V) and 36V using two external resistors. The devices feature a typical output impedance of 0.2Ω. They serve as excellent replacements for Zener diodes in many applications, such as op-amp circuits, adjustable power supplies, and switching power supplies. AiP432 offers identical functionality and electrical characteristics to AiP431, but with a different package pin assignment.

Applications

Op-amp circuits
Adjustable power supplies
Switching power supplies

Key features

Reference voltage accuracy at room temperature: AiP431A/AiP432A: 0.5%; AiP431/AiP432: 1%; AiP431B/AiP432B: 2%
Adjustable output voltage: Vref~36V
Wide operating temperature range: -40°C~85°C
Low temperature drift: 16mV max
Low output noise
0.2Ω output impedance
Sink current capability: 1mA~100mA
Package: TO92/SOT23
