Wuxi I-core Elec

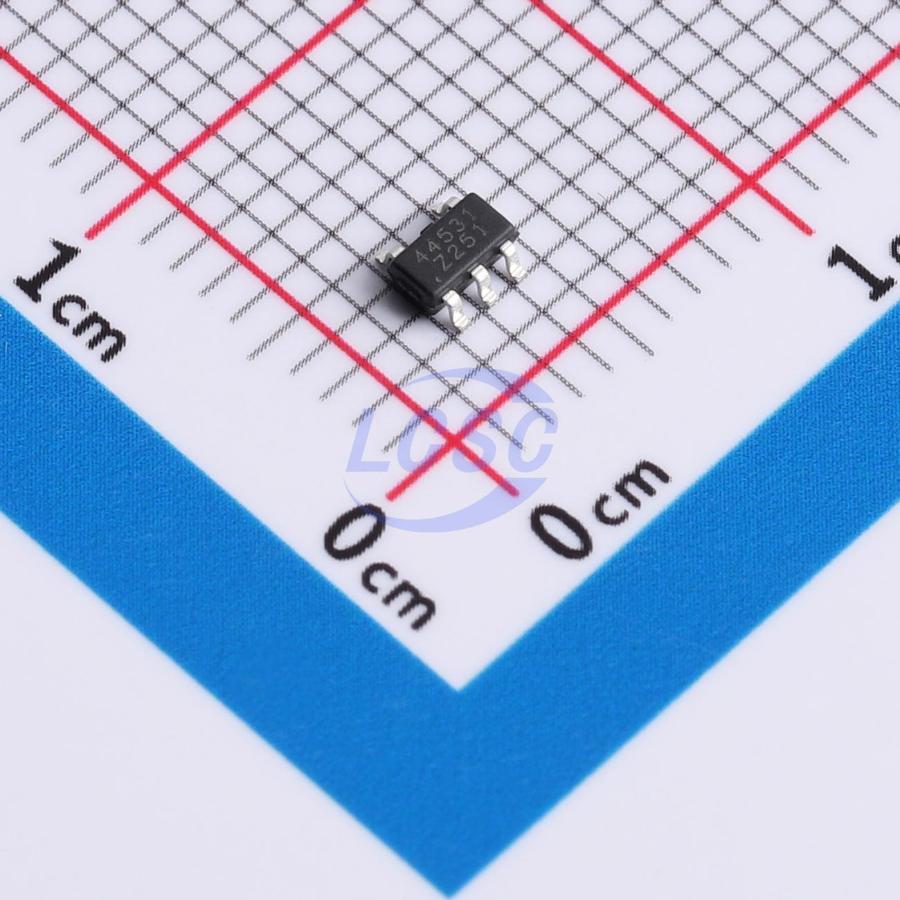

AiP44531GB235.TR

1 500mA Load Switch SOT-23-5 Power Distribution Switches, Load Drivers

SOT-23-5RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP44531GB235.TR
Store part #: C52260130
Package / case: SOT-23-5
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,985 in stock

#C52260130

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
5+	₹11.17	₹55.85
50+	₹8.86	₹443.00
150+	₹7.73	₹1,159.50
500+	₹6.87	₹3,435.00
3,000+	₹6.18	₹18,540.00
6,000+	₹5.83	₹34,980.00

Quantity (min 5, multiples of 5)

5 × ₹11.17

₹55.85

excl. GST

₹65.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP44531GB235.TR

₹55.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
number of channels: 1
Maximum Continuous Current: 500mA
Operating Voltage: 5V~18V
Type: Load Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.023 g

Overview

AiP44531 is a general-purpose power switch controller designed to replace discrete-component push-pull circuits, capable of directly driving power switching devices such as IGBTs, power MOSFETs, and relays.

Key features

Drives 1200V 25A IGBTs
High-current drive for power switches: source current -500mA (max), sink current 500mA (max)
Supply voltage range: 5V~18V
Compatible with various types of power switches
Non-inverting input-to-output signal
SOT23-5 package
