Wuxi I-core Elec

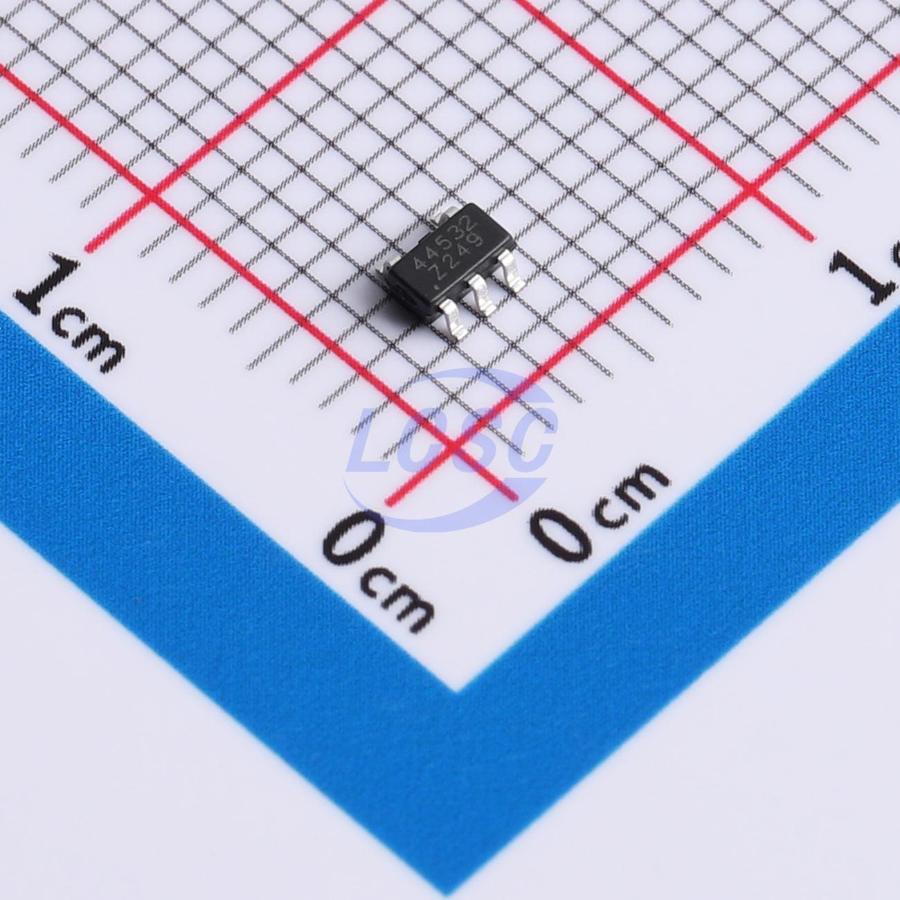

AiP44532GB235.TR

1 500mA Load Switch SOT-23-5 Power Distribution Switches, Load Drivers

SOT-23-5RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP44532GB235.TR
Store part #: C52260131
Package / case: SOT-23-5
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,925 in stock

#C52260131

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
5+	₹10.73	₹53.65
50+	₹8.45	₹422.50
150+	₹7.30	₹1,095.00
500+	₹6.46	₹3,230.00
3,000+	₹5.77	₹17,310.00
6,000+	₹5.42	₹32,520.00

Quantity (min 5, multiples of 5)

5 × ₹10.73

₹53.65

excl. GST

₹63.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AiP44532GB235.TR

₹53.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
number of channels: 1
Maximum Continuous Current: 500mA
Operating Voltage: 5V~15V
Type: Load Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.021 g

Overview

The AiP44532 reshapes the PWM signal output from the MCU to reduce switching losses. It also features an integrated voltage regulation circuit that clamps the MOSFET gate drive voltage at 16V, ensuring full turn-on and stable gate-source voltage without damaging the MOSFET. The device can also be used to drive relays and IGBTs.

Key features

Built-in 15V Zener diode, operating voltage range: 5V~15V
High-current drive for power switches, source current: -500mA (max), sink current: 500mA (max)
Bipolar process design for enhanced noise immunity
Input and output signals in phase
Package: SOT23-5
