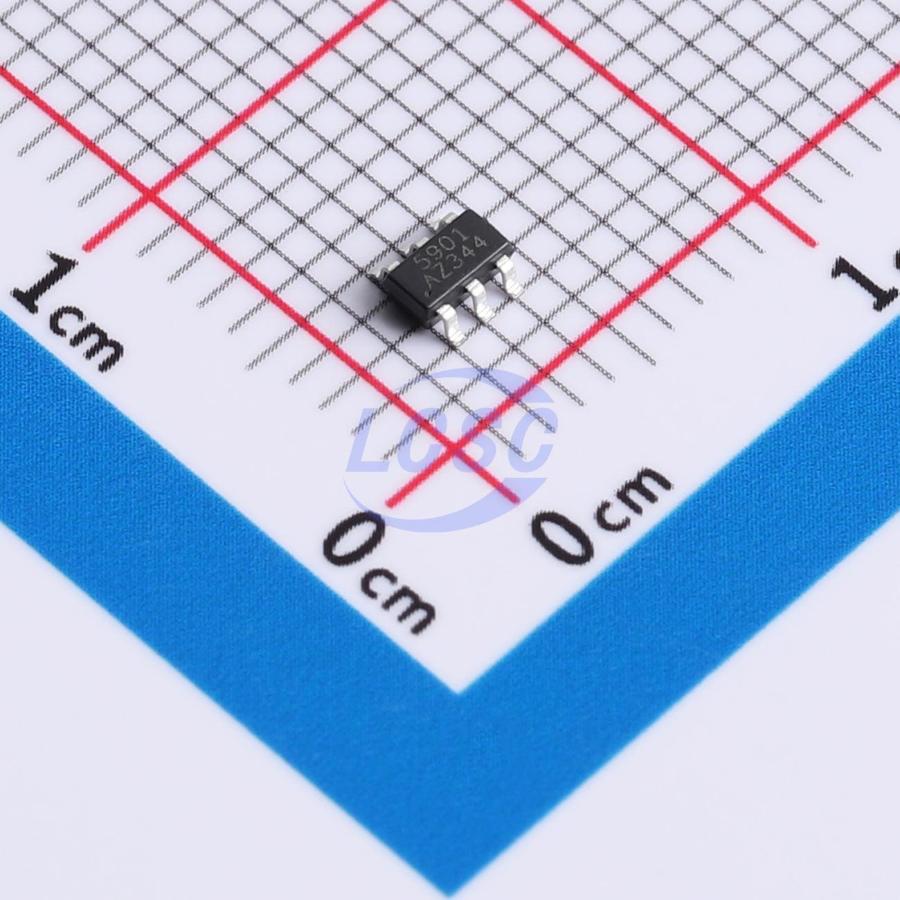

Wuxi I-core ElecDatasheet (PDF)
AiP5901GB236.TR
Capacitive Touch Yes 1 SOT-23-6 Sensor, Capacitive Touch
SOT-23-6RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP5901GB236.TR
- Store part #
- C52260244
- Package / case
- SOT-23-6
- Category
- Sensor, Capacitive Touch
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C52260244
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.10 | ₹61.00 |
| 100+ | ₹4.84 | ₹484.00 |
| 300+ | ₹4.22 | ₹1,266.00 |
| 3,000+ | ₹3.74 | ₹11,220.00 |
| 6,000+ | ₹3.37 | ₹20,220.00 |
| 9,000+ | ₹3.19 | ₹28,710.00 |
10 × ₹6.10
₹61.00
excl. GST
₹71.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP5901GB236.TR
₹61.00 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Features
- Capacitive Touch
- Whether the Lock
- Yes
- Number of Channels
- 1
- Voltage - Supply
- 3V~5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
AiP5901 is a single-channel touch key sensor IC designed primarily for capacitive touch key applications. It provides single-channel touch key driving capability, with output mode configurable via hardware.
Key features
- Single-channel capacitive touch key driver
- Operating voltage: 2.1V ~ 5.5V
- Operating current (VDD = 3V): normal mode 3.7uA, low-power mode 2.7uA
- Auto entry into low-power mode (no key press for 10 seconds)
- Key response time: normal mode 60ms, low-power mode 120ms
- Sensitivity adjustment via TK pin external capacitor
- Multiple output mode options
- Long-press reset function
- Low-voltage (2.0V) reset function
- Package: SOT23-6
