Wuxi I-core ElecDatasheet (PDF)

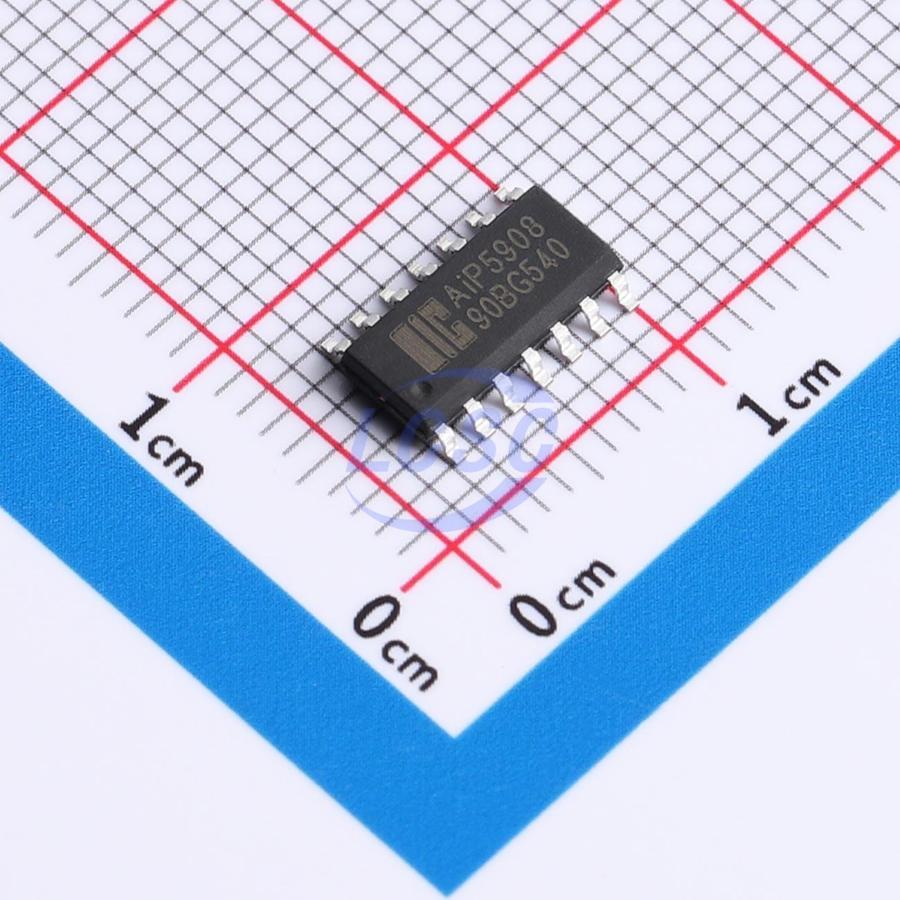

AiP5908SA14.TR
No 8 SOP-14 Sensor, Capacitive Touch
SOP-14RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP5908SA14.TR
- Store part #
- C52260246
- Package / case
- SOP-14
- Category
- Sensor, Capacitive Touch
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,585 in stock
#C52260246
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.04 | ₹145.20 |
| 50+ | ₹25.48 | ₹1,274.00 |
| 150+ | ₹23.95 | ₹3,592.50 |
| 500+ | ₹22.04 | ₹11,020.00 |
| 2,500+ | ₹21.19 | ₹52,975.00 |
| 4,000+ | ₹20.69 | ₹82,760.00 |
5 × ₹29.04
₹145.20
excl. GST
₹171.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AiP5908SA14.TR
₹145.20 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Features
- Capacitive Touch;Automatic sensitivity calibration
- Whether the Lock
- No
- Number of Channels
- 8
- Voltage - Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.278 g
Overview
Capacitive touch key circuit offering up to 8 touch key channels, with sensitivity adjustable via external capacitors and command configuration. Built-in I²C interface for direct connection to a controller. Features a key result indicator port usable as an MCU interrupt signal. Suitable for panel applications with thickness up to 15 mm.
Key features
- 8 independent touch key channels: configurable as single-key or multi-key mode
- Adjustable sensitivity: hardware adjustment via external capacitor on C0 port; software adjustment available globally or per individual key; compatible with various capacitive touch key designs
- Automatic adaptation to ambient temperature and humidity variations
- Communication interface: I²C
- Low power consumption: operating frequency 1 MHz, typical current: 70 μA @ 5 V; operating frequency 500 kHz, typical current: 43 μA @ 5 V; operating frequency 250 kHz, typical current: 30 μA @ 5 V; operating frequency 125 kHz, typical current: 23 μA @ 5 V; configuration mode static current: 1 μA @ 5 V
- Package: SOP14/QFN16
