Wuxi I-core Elec

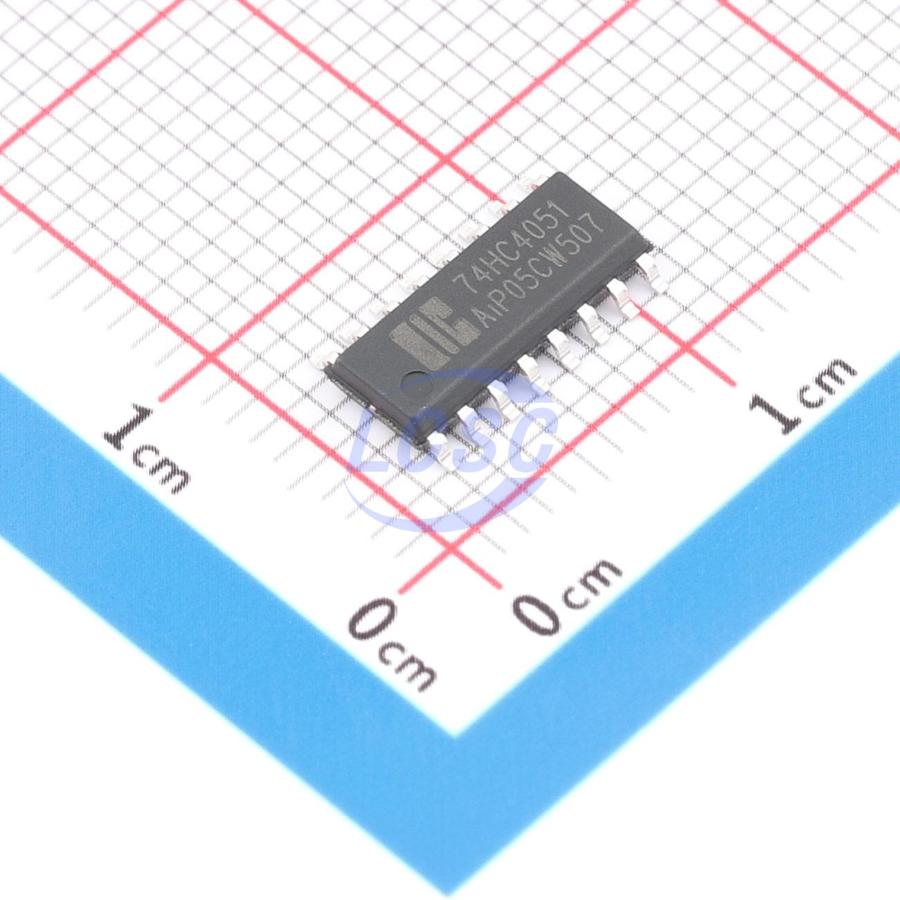

AiP74HC4051SA16.TR

1/8 3V~9V 16uA 12ns@4.5V,50pF SOP-16 Signal Switches, Multiplexers, Decoders

SOP-16RoHSActive

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AiP74HC4051SA16.TR
Store part #: C49075952
Package / case: SOP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,140 in stock

#C49075952

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
5+	₹15.98	₹79.90
50+	₹14.04	₹702.00
150+	₹13.20	₹1,980.00
500+	₹12.16	₹6,080.00
2,500+	₹11.70	₹29,250.00
4,000+	₹11.42	₹45,680.00

Quantity (min 5, multiples of 5)

5 × ₹15.98

₹79.90

excl. GST

₹94.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AiP74HC4051SA16.TR

₹79.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Series: 74HC
Number of Channels: 1/8
Voltage - Supply: 3V~9V
Operating Temperature: -40℃~+125℃
Quiescent Current: 16uA
Propagation Delay: 12ns@4.5V,50pF
Function: Level shifting;Break-before-make function

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.325 g

Overview

The AiP74HC/HCT4051 is an 8-to-1 analog switch designed for analog or digital 8:1 multiplexing applications. The device features three digital select inputs, eight independent input/output pins, one common input/output pin, and a digital enable input. When the enable input is high, the switch turns off. Inputs include clamping diodes, allowing the input interface to connect to voltages exceeding VCC through current-limiting resistors, enabling 5V logic to communicate with ±5V analog signals.

Applications

Analog multiplexer
Digital multiplexer
Signal gating

Key features

Analog input voltage range: -5V ~ +5V
Supply voltage range: AiP74HC4051: 3V ~ 9V; AiP74HCT4051: 4.5V ~ 5.5V
Low on-resistance: typical 80Ω at VCC - VEE = 4.5V; typical 70Ω at 6.0V; typical 60Ω at 9.0V
Built-in typical "break-before-make" function
Operating temperature range: -40℃ ~ +125℃
Package types: DIP16, SOP16, TSSOP16, DHVQFN16
