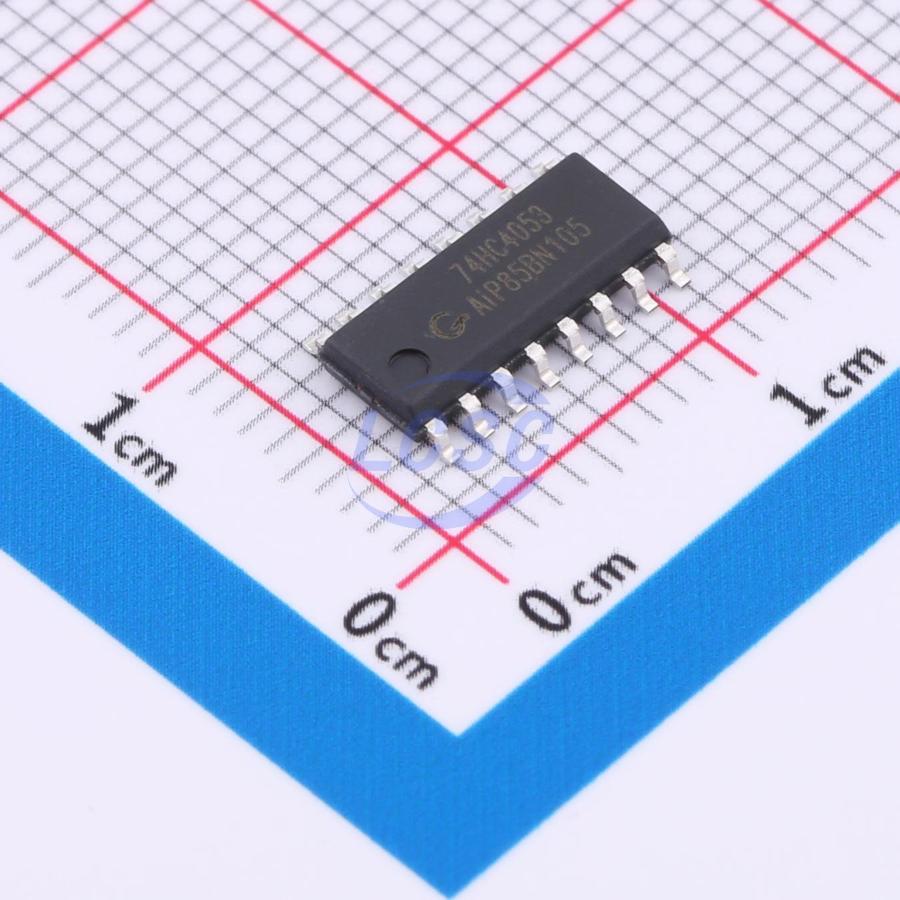

Wuxi I-core Elec

AIP74HC4053SA16.TR

3/6 3V~9V 8uA 5ns@4.5V,50pF SOP-16 Signal Switches, Multiplexers, Decoders

SOP-16RoHSActive

Triple 2-channel Analog Multiplexer/Demultiplexer

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74HC4053SA16.TR
Store part #: C6798243
Package / case: SOP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,515 in stock

#C6798243

Stock & price checked 30 h ago

Quantity	Unit price	Pack price
5+	₹25.35	₹126.75
50+	₹19.61	₹980.50
150+	₹16.72	₹2,508.00
500+	₹14.57	₹7,285.00
2,500+	₹12.85	₹32,125.00
4,000+	₹11.99	₹47,960.00

Quantity (min 5, multiples of 5)

5 × ₹25.35

₹126.75

excl. GST

₹149.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AIP74HC4053SA16.TR

₹126.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Series: 74HC
Number of Channels: 3/6
Voltage - Supply: 3V~9V
Operating Temperature: -40℃~+105℃
Quiescent Current: 8uA
Propagation Delay: 5ns@4.5V,50pF
Function: Level shifting;Break-before-make function

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.267 g

Overview

The AiP74HC/HCT4053 is a triple single-pole double-throw analog switch (3×SPDT) suitable for use in analog or digital 2:1 multiplexer/demultiplexer applications. Each switch features a digital select input (Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). A digital enable input (E) is common to all switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

Key features

Wide analog input voltage range from -5 V to +5 V
Wide supply voltage range AiP74HC4053: from 3V to 9V AiP74HCT4053: from 4.5V to 5.5V
Low ON resistance: -80 Ω (typical) at VCC - VEE = 4.5 V; -70 Ω (typical) at ΔVCC - VEE = 6.0 V; -60 Ω (typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical “break before make” built-in
Specified from -40 °C to +105 °C
Packaging information: DIP16/SOP16/TSSOP16
