Wuxi I-core Elec

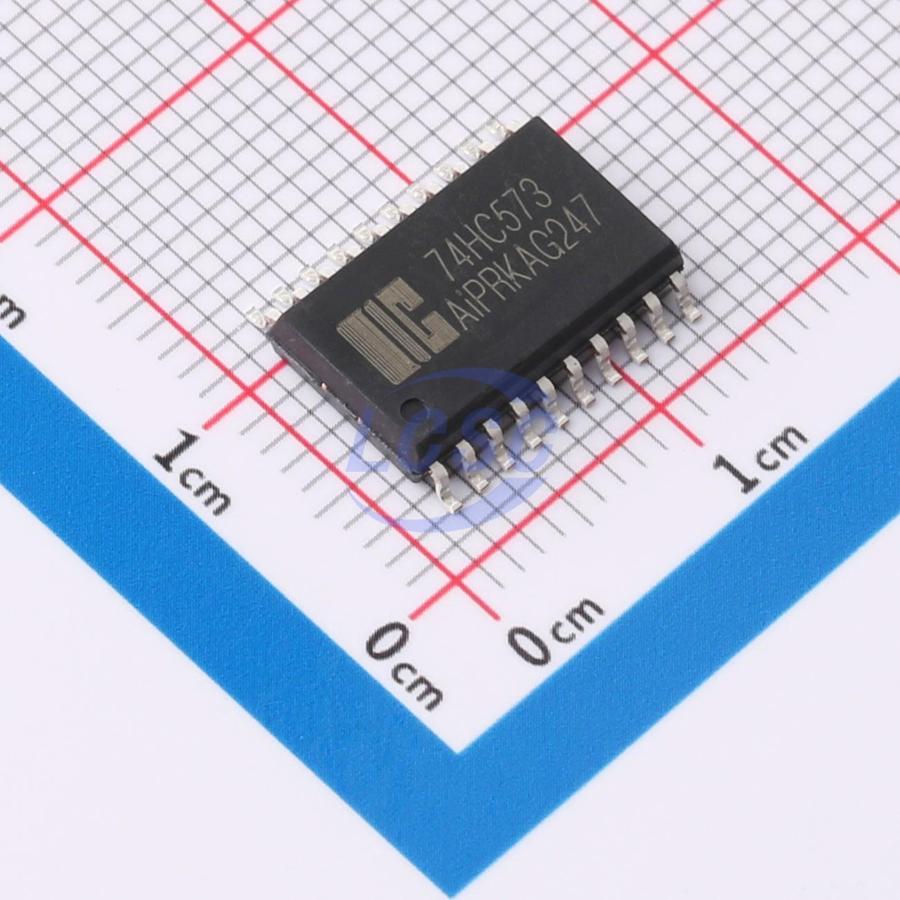

AIP74HC573SA20.TR

8/8 2V~6V 8uA 17ns@4.5V,15pF SOP20 Signal Switches, Multiplexers, Decoders

SOP20RoHSActive

Octal D-type transparent latch; 3-state

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74HC573SA20.TR
Store part #: C6798244
Package / case: SOP20
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,515 in stock

#C6798244

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
5+	₹32.00	₹160.00
50+	₹24.61	₹1,230.50
150+	₹21.45	₹3,217.50
500+	₹17.49	₹8,745.00
2,000+	₹15.73	₹31,460.00
4,000+	₹14.67	₹58,680.00

Quantity (min 5, multiples of 5)

5 × ₹32.00

₹160.00

excl. GST

₹188.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

AIP74HC573SA20.TR

₹160.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Series: 74HC
Number of Channels: 8/8
Voltage - Supply: 2V~6V
Operating Temperature: -40℃~+105℃
Quiescent Current: 8uA
Current - Output High(IOH): 6mA
Propagation Delay: 17ns@4.5V,15pF
Function: Output enable high-impedance;Tri-state output
Current - Output Low(IOL): 6mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.851 g

Overview

The AiP74HC/HCT573 is an 8-bit D-type transparent latch with 3-state outputs. The device features latch enable (LE) and output enable (OE) inputs. When LE is HIGH, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding D-input changes. When LE is LOW the latches store the information that was present at the inputs a set-up time preceding the HIGH-to-LOW transition of LE. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the latches. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of Vcc.

Key features

Input levels: For AiP74HC573: CMOS level For AiP74HCT573: TTL level
Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
Useful as input or output port for microprocessors and microcomputers
3-state non-inverting outputs for bus-oriented applications
Common 3-state output enable input
Specified from -40°C to +105°C
Packaging information: DIP20/SOP20/TSSOP20
