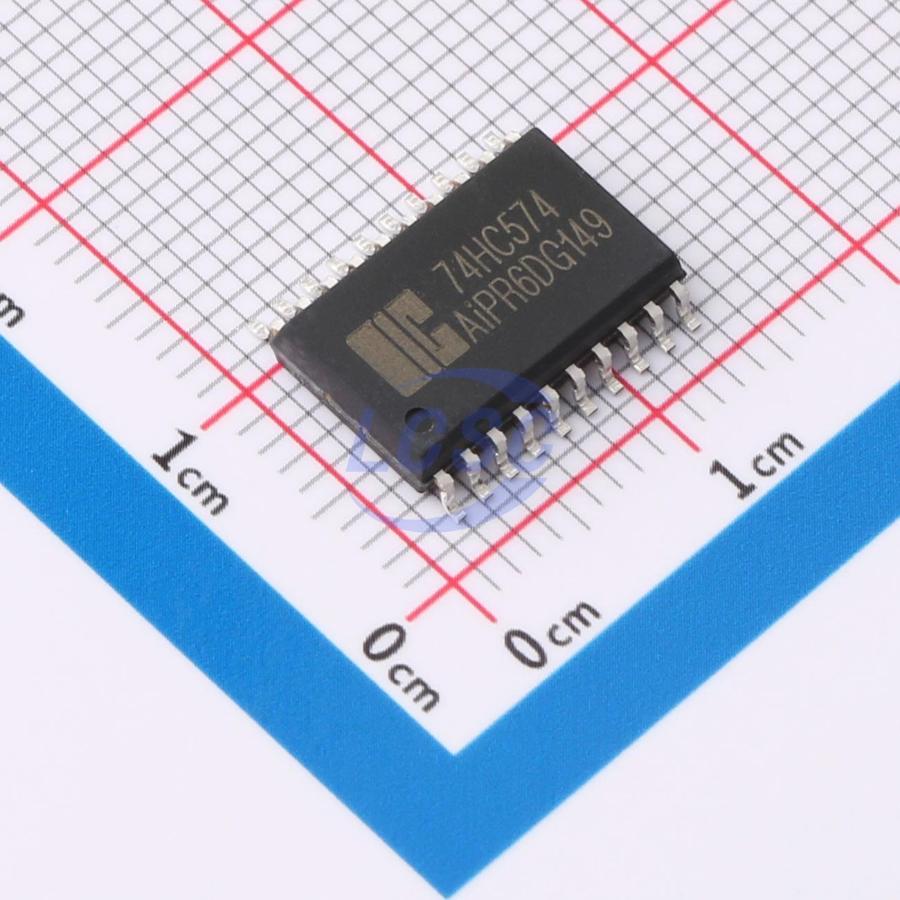

Wuxi I-core Elec

AIP74HC574SA20.TR

2V~6V 8 8 17ns@4.5V,50pF SOP20 Flip Flops

SOP20RoHSActive

Octal D-type flip-flop; positive edge-trigger; 3-state

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74HC574SA20.TR
Store part #: C6798245
Package / case: SOP20
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,240 in stock

#C6798245

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹29.40	₹147.00
50+	₹22.61	₹1,130.50
150+	₹19.70	₹2,955.00
500+	₹16.07	₹8,035.00
2,000+	₹14.45	₹28,900.00
4,000+	₹13.48	₹53,920.00

Quantity (min 5, multiples of 5)

5 × ₹29.40

₹147.00

excl. GST

₹173.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

AIP74HC574SA20.TR

₹147.00 for 5 + GST

Specifications

Voltage - Supply: 2V~6V
Number of Bits per Element: 8
Output Type: Tri-State
Operating Temperature: -40℃~+105℃
Series: 74HC Series
Synchronous/Asynchronous: Synchronous
Number of Elements: 8
Current - Output High(IOH): 6mA
Current - Output Low(IOL): 6mA
Quiescent Current: 8uA
Setup Time: 12ns
Hold Time: 5ns
Propagation Delay: 17ns@4.5V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.838 g

Overview

The AiP74HC/HCT574 is an octal positive-edge triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) and output enable (OE) inputs. The flip-flops will store the state of their individual D-inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
