Wuxi I-core ElecDatasheet (PDF)

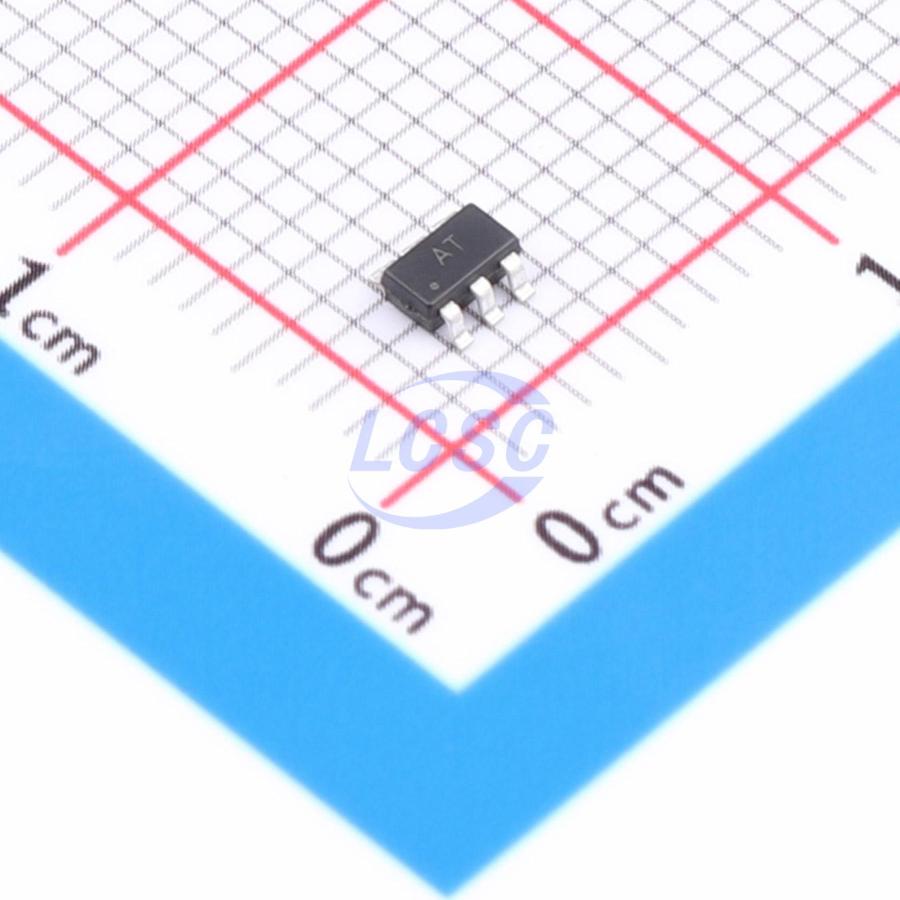

AiP74LVC1G157GB236.TR
1.65V~5.5V 2/1 4uA 9ns@5V,50pF SOT-23-6 Signal Switches, Multiplexers, Decoders
SOT-23-6RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74LVC1G157GB236.TR
- Store part #
- C52120895
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,470 in stock
#C52120895
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.00 | ₹60.00 |
| 50+ | ₹9.55 | ₹477.50 |
| 150+ | ₹8.32 | ₹1,248.00 |
| 500+ | ₹7.40 | ₹3,700.00 |
| 3,000+ | ₹6.67 | ₹20,010.00 |
| 6,000+ | ₹6.30 | ₹37,800.00 |
5 × ₹12.00
₹60.00
excl. GST
₹70.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP74LVC1G157GB236.TR
₹60.00 for 5 + GST
Specifications
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2/1
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 4uA
- Current - Output High(IOH)
- 24mA
- Propagation Delay
- 9ns@5V,50pF
- Function
- Level shifting;Power-off protection
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The AiP74LVC1G157 is a single 2-input multiplexer that selects data from two data inputs (I0 and I1) under the control of a common data select input (S). The state of the common data select input determines which specific register the data comes from. The output (Y) presents the selected data in true (non-inverted) form. The inputs can be driven by 3.3V or 5V devices, allowing these devices to be used as level translators in mixed 3.3V and 5V applications.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- ±24mA output drive capability (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Inputs accept voltages up to 5V
- Operating temperature range: -40°C to +125°C
- Package: SOT-23-6/SOT-363
