Wuxi I-core Elec

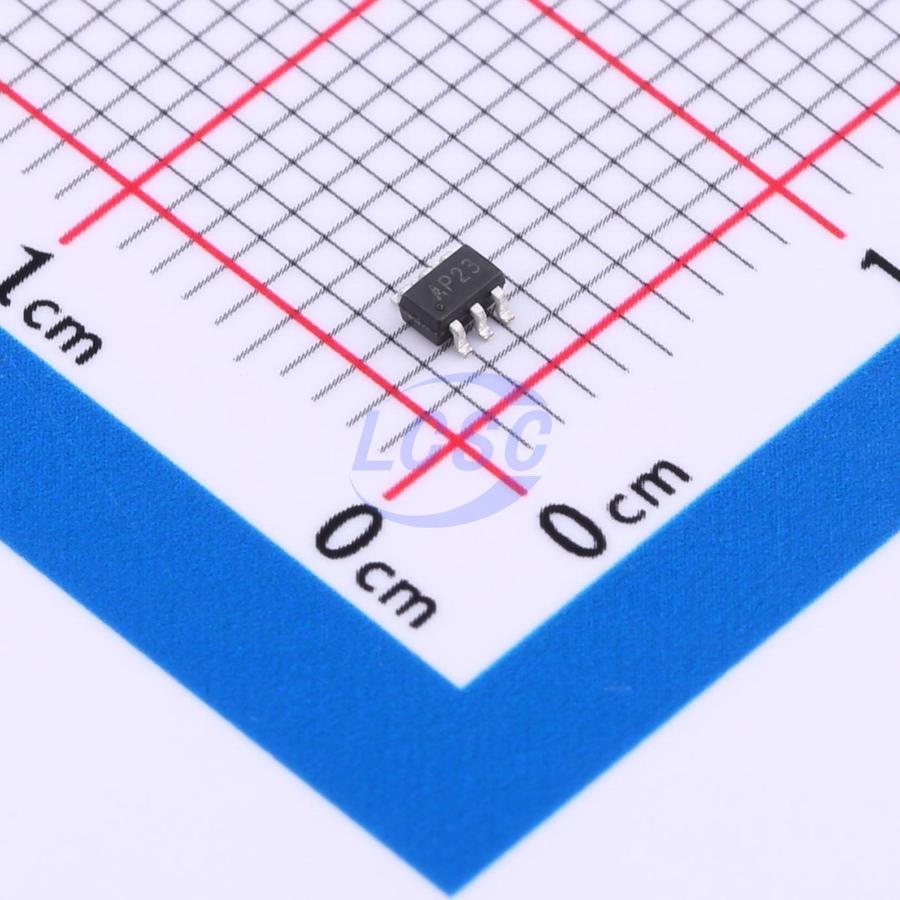

AIP74LVC2G14GC363.TR

1.65V~5.5V 1 2 3.9ns@3V,50pF SOT-363 Flip Flops

SOT-363RoHSActive

Dual Inverter Schmitt Trigger

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74LVC2G14GC363.TR
Store part #: C3294721
Package / case: SOT-363
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,555 in stock

#C3294721

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹12.71	₹63.55
50+	₹9.83	₹491.50
150+	₹8.39	₹1,258.50
500+	₹7.30	₹3,650.00
3,000+	₹6.44	₹19,320.00
6,000+	₹6.01	₹36,060.00

Quantity (min 5, multiples of 5)

5 × ₹12.71

₹63.55

excl. GST

₹74.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AIP74LVC2G14GC363.TR

₹63.55 for 5 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Number of Bits per Element: 1
Operating Temperature: -40℃~+105℃
Series: 74LVC Series
Number of Elements: 2
Current - Output High(IOH): 24mA
Current - Output Low(IOL): 24mA
Quiescent Current: 100nA
Propagation Delay: 3.9ns@3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The AiP74LVC2G14 provides two inverting buffers with Schmitt-trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. Schmitt-trigger action at the inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The I(OFF) circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
