Wuxi I-core ElecDatasheet (PDF)

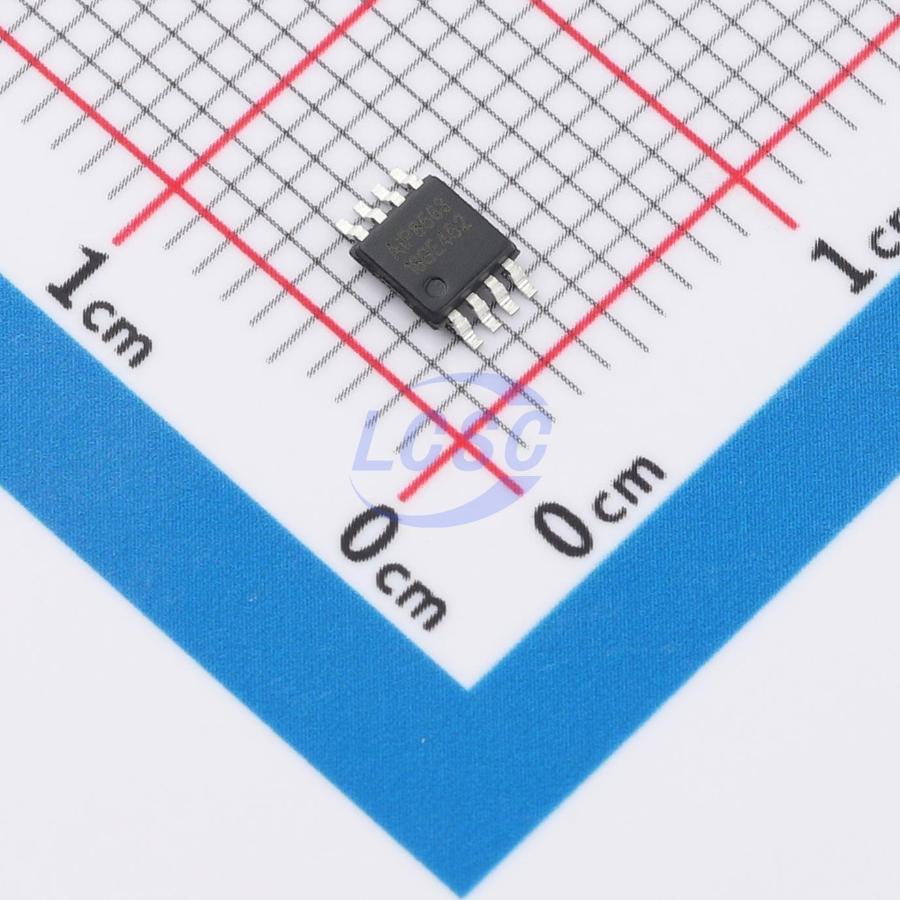

AiP8563MA8.TR
External Yes MSOP-8 Real Time Clocks
MSOP-8RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP8563MA8.TR
- Store part #
- C5295915
- Package / case
- MSOP-8
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,025 in stock
#C5295915
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.22 | ₹156.10 |
| 50+ | ₹24.46 | ₹1,223.00 |
| 150+ | ₹21.56 | ₹3,234.00 |
| 500+ | ₹17.95 | ₹8,975.00 |
| 2,500+ | ₹16.34 | ₹40,850.00 |
| 5,000+ | ₹15.37 | ₹76,850.00 |
5 × ₹31.22
₹156.10
excl. GST
₹184.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AiP8563MA8.TR
₹156.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.8V~5.5V
- Features
- Programmable clock output;Alarm function
- crystal oscillator
- External
- Alarm Output
- Yes
- Current - Supply
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
AiP8563 is a low-power CMOS real-time clock/calendar IC featuring a programmable clock output and an interrupt output. Address and data are transmitted serially via the I²C bus interface, with a maximum bus speed of 400 Kbits/s. The embedded word address register auto-increments after each read/write operation. Widely used in mobile phones, portable instruments, fax machines, and battery-powered products.
Applications
- Mobile phones
- Portable instruments
- Fax machines
- Battery-powered products
Key features
- Low sleep current
- Programmable clock output frequencies: 32.768KHz, 1024Hz, 32Hz, 1Hz
- Alarm and timer functions
- On-chip power-on reset
- I²C bus slave address: Read, 0A3H; Write, 0A2H
- Interrupt pin open-drain output
