ARK micro

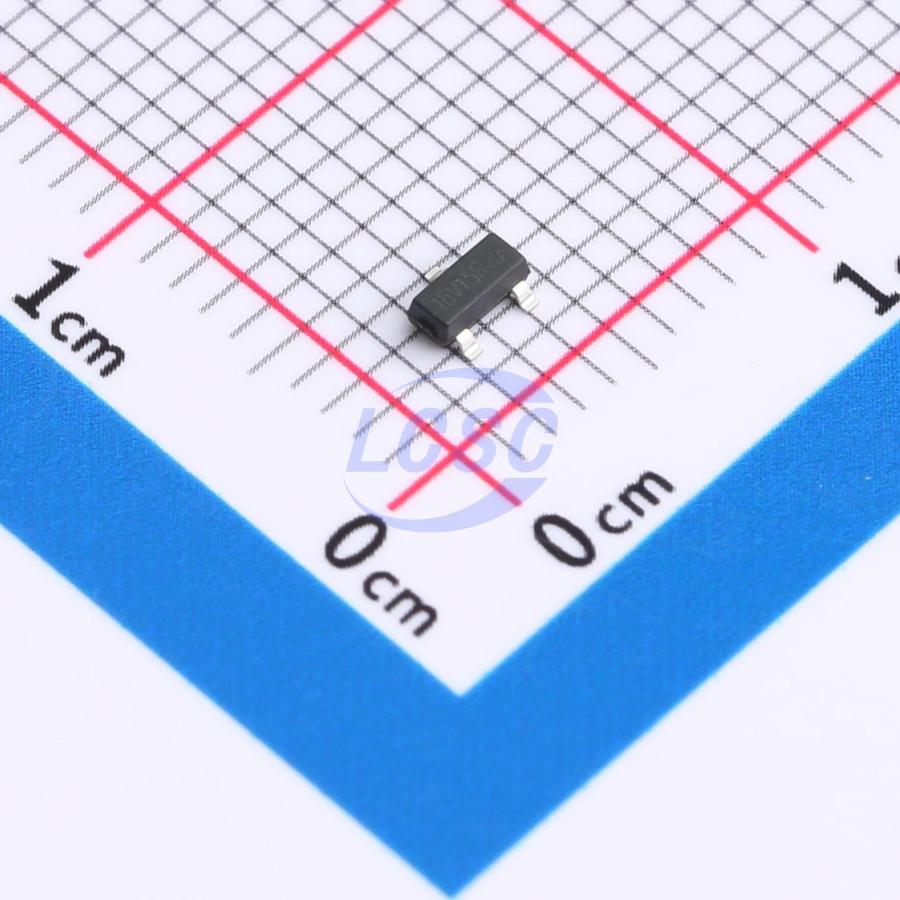

AKZ16V15R

Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-23

SOT-23ROHS CompliantActive

Performance such as output voltage, input voltage, output current, and overvoltage protection

Manufacturer: ARK micro
Manufacturer part #: AKZ16V15R
Store part #: C41432018
Package / case: SOT-23
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,102 in stock

#C41432018

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹69.27	₹69.27
10+	₹55.76	₹557.60
30+	₹49.09	₹1,472.70
100+	₹42.44	₹4,244.00
500+	₹38.40	₹19,200.00
1,000+	₹36.30	₹36,300.00

Quantity (min 1)

1 × ₹69.27

₹69.27

excl. GST

₹81.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AKZ16V15R

₹69.27 for 1 + GST

Specifications

Output Voltage: 16.5V
Number of Outputs: 1
Operating Temperature: -55℃~+125℃@(Ta)
Supply Current (Iq): 20uA
Output Configuration: Positive
Operating Voltage: 180V
Output Current: 30mA
Features: Input overvoltage protection;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.135 g

Overview

The AKZ16V15R/AKX16V15R/AKS16V15R series are High Voltage Integrated Regulators (HVIR) developed by ARK using MOSovp® technology. This series features integrated temperature compensation design with excellent temperature characteristics. The internally integrated N-channel depletion-mode MOSFET provides extremely fast response, effectively suppressing circuit surges and transient interference, reducing output voltage ripple, ensuring stable output voltage, and maintaining ultra-low quiescent current. The integrated depletion-mode MOSFET enables fast response, effectively suppressing circuit surges and transient interference to provide reliable overvoltage protection for load circuits. This series withstands voltages up to 180V, making it ideal for wide input voltage range power supply applications. It can be used directly as a regulator to convert high voltage to a stable low voltage for powering loads such as MCUs. In QC2.0/3.0 and Type-C/PD charger circuits, the AKZ16V15R/AKX16V15R/AKS16V15R serves as a high-voltage linear regulator to power PWM ICs, with an allowable input voltage up to 180V, effectively simplifying the circuit.
