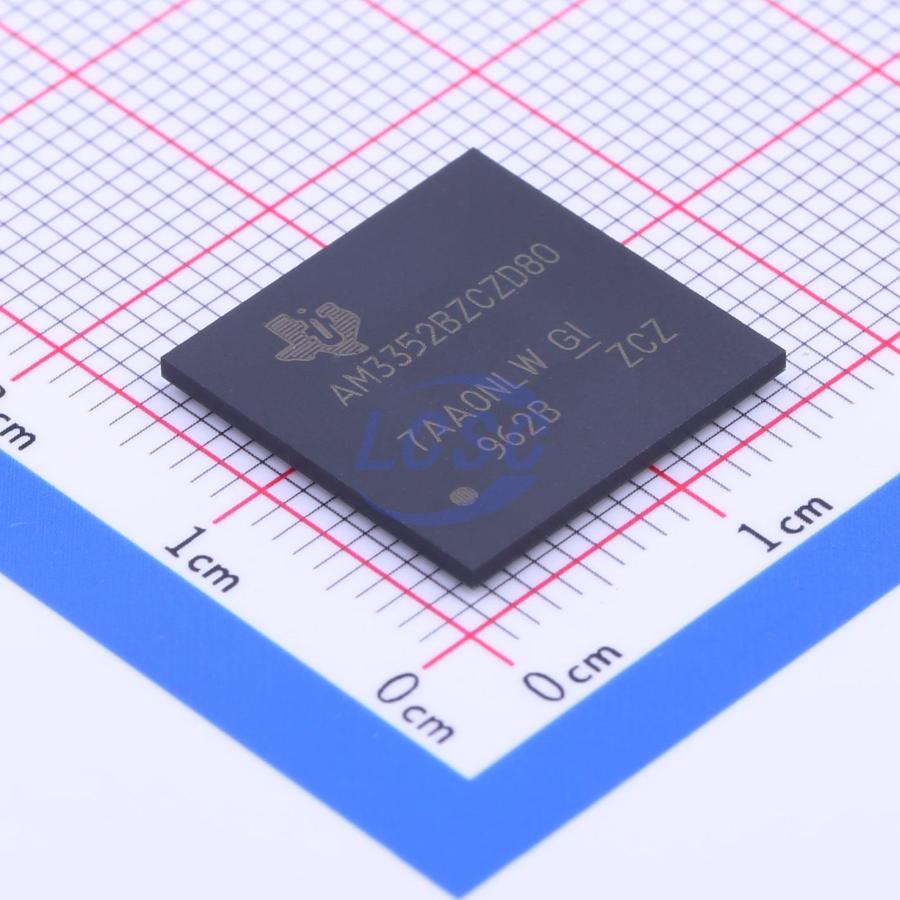

AM3352BZCZD80

ARM Cortex-ASeries 800MHz NFBGA-324 Microprocessors RoHS

NFBGA-324ROHS3 CompliantActive

Sitara ARM Cortex-A8 Microprocessors (MPUs)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,012 in stock

#C20916

Stock & price checked 5 days ago

Quantity (min 1)

1 × ₹1,360.31

₹1,360.31

excl. GST

₹1,605.17 incl. 18% GST

AM3352BZCZD80

₹1,360.31 for 1 + GST

Specifications

Up to 1-GHz Sitara ARM Cortex-A8 32‑Bit RISC Microprocessor
NEON SIMD Coprocessor
32KB of L1 Instruction and 32KB Data Cache with Single-Error Detection (parity)
256KB of L2 Cache with Error Correcting Code (ECC)
mDDR(LPDDR), DDR2, DDR3, DDR3L Support
General-Purpose Memory Support (NAND, NOR, SRAM) Supporting Up to 16-bit ECC
SGX530 3D Graphics Engine
LCD and Touchscreen Controller
Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS)
Real-Time Clock (RTC)
Up to Two USB 2.0 High-Speed OTG Ports with Integrated PHY
10, 100, 1000 Ethernet Switch Supporting Up to Two Ports
Serial Interfaces Including: Two Controller Area Network Ports (CAN), Six UARTs, Two McASPs, Two McSPI, and Three I2C Ports
12-Bit Successive Approximation Register (SAR) ADC
Up to Three 32-Bit Enhanced Capture Modules (eCAP)
Up to Three Enhanced High-Resolution PWM Modules (eHRPWM)
Crypto Hardware Accelerators (AES, SHA, PKA, RNG)
