Advanced Monolithic SystemsDatasheet (PDF)

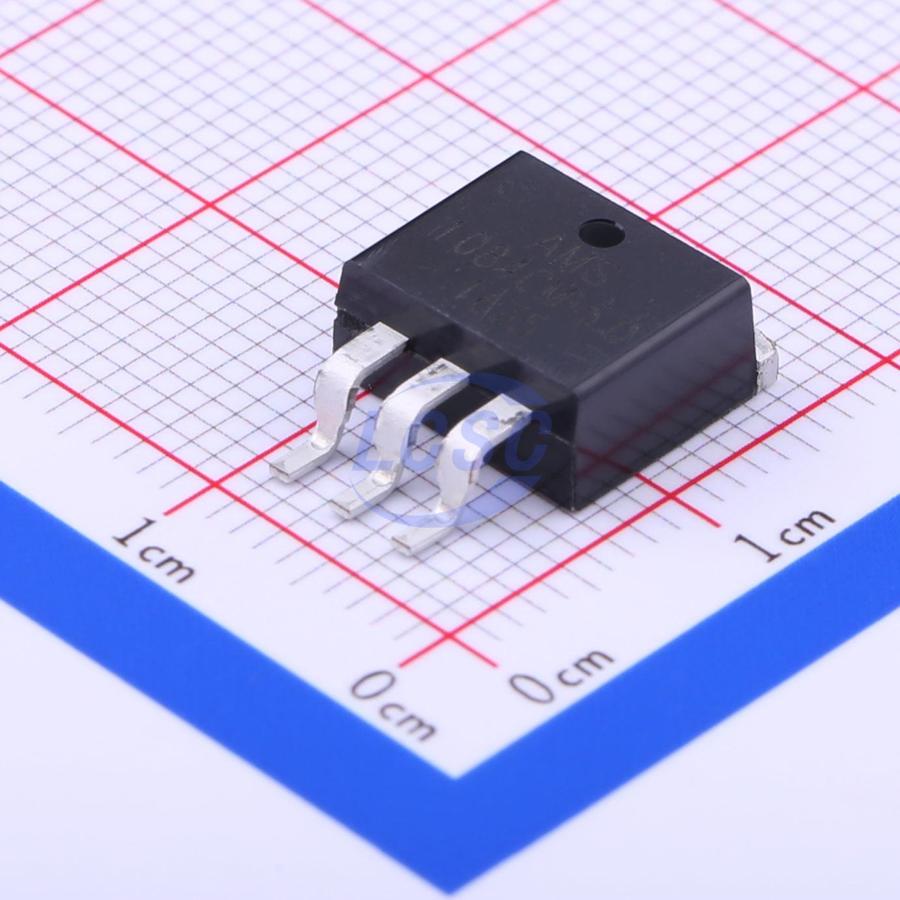

AMS1084CM-5.0
5V Positive Fixed TO-263-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-263-3LRoHSActive
5A Low Dropout Voltage Regulator
- Manufacturer
- Advanced Monolithic Systems
- Manufacturer part #
- AMS1084CM-5.0
- Store part #
- C56105
- Package / case
- TO-263-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,758 in stock
#C56105
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹234.20 | ₹234.20 |
| 10+ | ₹198.36 | ₹1,983.60 |
| 30+ | ₹178.59 | ₹5,357.70 |
| 100+ | ₹156.43 | ₹15,643.00 |
| 500+ | ₹146.65 | ₹73,325.00 |
| 1,000+ | ₹142.09 | ₹1,42,090.00 |
1 × ₹234.20
₹234.20
excl. GST
₹276.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per reel
AMS1084CM-5.0
₹234.20 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 5A
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.452 g
Overview
The AMS1084 series of adjustable and fixed voltage regulators are designed to provide 5A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry. The AMS1084 devices are pin compatible with older three-terminal regulators and are offered in 3 lead TO-220 package, 3 and 2 lead TO-263 (Plastic DD) and TO-252 (D PAK) package.
Applications
- High Efficiency Linear Regulators
- Post Regulators for Switching Supplies
- Microprocessor Supply
- Battery Chargers
- Constant Current Regulators
- Notebook/Personal Computer Supplies
- Portable Instrumentation
Key features
- Three Terminal Adjustable or Fixed 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V
- Output Current of 5A
- Operates Down to 1V Dropout
- Line Regulation: 0.015%
- Load Regulation: 0.1%
- TO-220, TO-263 and TO-252 packages available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1084ISX-5.0/NOPB#C2860176TI · TO-263-3 | TI | TO-263-3 | 46 | ₹442.42 · 46 in stock | View |
 | LM1084IS-5.0RG#C5145339HANSCHIP semiconductor · TO-263-3L | HANSCHIP semiconductor | TO-263-3L | 435 | ₹33.08 · 435 in stock | View |
 | LM1084ISX-5.0/NOPB-TUDI#C53285986Tudi · TO-263-3 | Tudi | TO-263-3 | 92 | ₹81.10 · 92 in stock | View |
 | LM1084S-5.0/TR-TUDI#C55214295Tudi · TO-263-3 | Tudi | TO-263-3 | 440 | ₹61.80 · 440 in stock | View |
 | LM1084S-5.0/TR#C259973HGSEMI · TO-263-3 | HGSEMI | TO-263-3 | 1,815 | ₹45.83 · 1,815 in stock | View |
