Advanced Monolithic SystemsDatasheet (PDF)

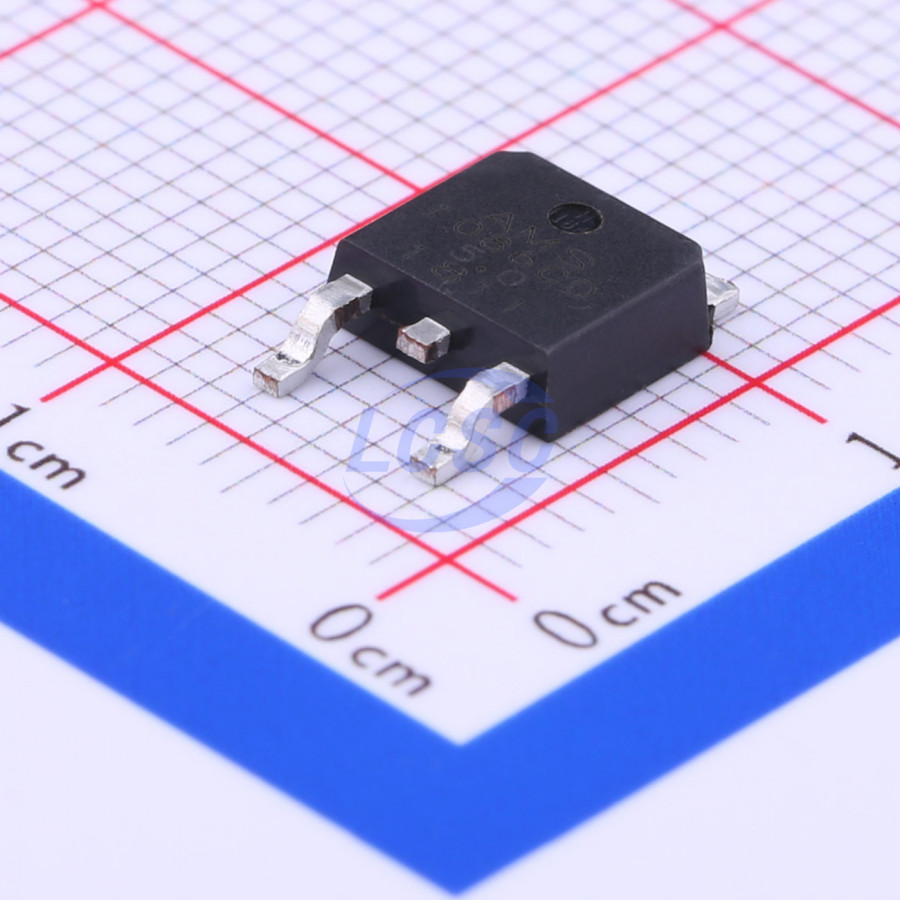

AMS1086CD-5.0
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-2(DPAK)RoHSActive
1.5A Low Dropout Voltage Regulator
- Manufacturer
- Advanced Monolithic Systems
- Manufacturer part #
- AMS1086CD-5.0
- Store part #
- C27630
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,378 in stock
#C27630
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.74 | ₹80.74 |
| 10+ | ₹65.77 | ₹657.70 |
| 30+ | ₹58.17 | ₹1,745.10 |
| 100+ | ₹50.58 | ₹5,058.00 |
| 500+ | ₹46.24 | ₹23,120.00 |
| 1,000+ | ₹43.84 | ₹43,840.00 |
1 × ₹80.74
₹80.74
excl. GST
₹95.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1086CD-5.0
₹80.74 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1.5A
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.475 g
Overview
The AMS1086 series of adjustable and fixed voltage regulators are designed to provide 1.5A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry. The AMS1086 devices are pin compatible with older three-terminal regulators and are offered in 3 lead TO-220 package, 3 lead TO-263 (Plastic DD), TO-252 (D PAK) and SOT-223 package.
Applications
- High Efficiency Linear Regulators
- Post Regulators for Switching Supplies
- Microprocessor Supply
- Battery Chargers
- Constant Current Regulators
- Notebook/Personal Computer Supplies
- Portable Instrumentation
Key features
- Three Terminal Adjustable or Fixed Voltages 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V
- Output Current of 1.5A
- Operates Down to 1V Dropout
- Line Regulation: 0.015%
- Load Regulation: 0.1%
- TO-220, TO-263, TO-252 and SOT-223 packages available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AZ1084CD-5.0TRG1-TUDI#C53286229Tudi · TO-252-2 | Tudi | TO-252-2 | 155 | ₹44.33 · 155 in stock | View |
 | AZ1084CD-5.0TRG1#C2980701DIODES · TO-252 | DIODES | TO-252 | 4,421 | ₹59.09 · 4,421 in stock | View |
 | L7805CDT(TOKMAS)#C7525451Tokmas · TO-252-2(DPAK) | Tokmas | TO-252-2(DPAK) | 5 | ₹19.67 · 5 in stock | View |
 | MC7805BDT(TOKMAS)#C7525419Tokmas · TO-252-2(DPAK) | Tokmas | TO-252-2(DPAK) | 1,460 | ₹21.71 · 1,460 in stock | View |
 | CJ7805 3%#C21706JSCJ · TO-252-2(DPAK) | JSCJ | TO-252-2(DPAK) | 75,855 | ₹27.72 · 75,855 in stock | View |
