JSMSEMIDatasheet (PDF)

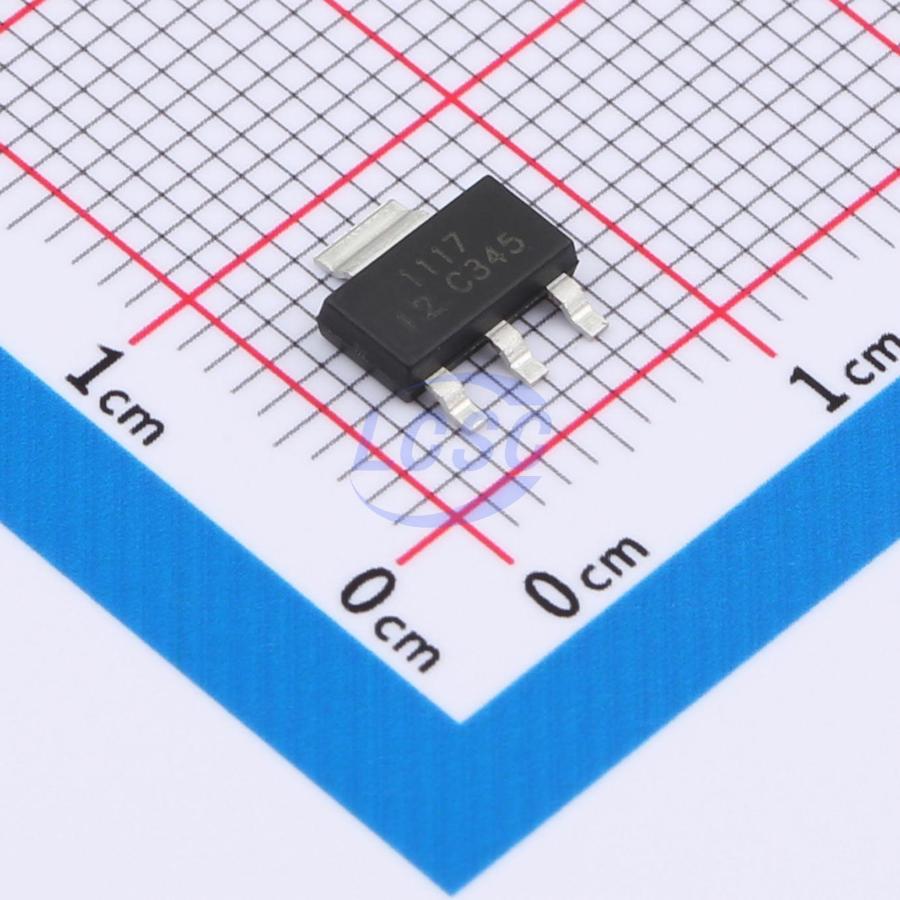

AMS1117-1.2V
1.2V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
800mA Bipolar Linear Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- AMS1117-1.2V
- Store part #
- C41361592
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C41361592
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.20 | ₹102.00 |
| 100+ | ₹8.12 | ₹812.00 |
| 300+ | ₹7.09 | ₹2,127.00 |
| 2,500+ | ₹6.52 | ₹16,300.00 |
| 5,000+ | ₹5.90 | ₹29,500.00 |
| 10,000+ | ₹5.60 | ₹56,000.00 |
10 × ₹10.20
₹102.00
excl. GST
₹120.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AMS1117-1.2V
₹102.00 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Ta)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Output Current
- 1.2A
- Operating Voltage
- 15V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.243 g
Overview
AMS1117-1.2V is a series of low dropout three-terminal regulators with a dropout of 13V at 800mA load current. AMS1117 features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. AMS1117 offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%. AMS1117 is available in SOT-223, TO-252, SOT-89 power package.
Applications
- Power Management for Computer Mother Board, Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL, Modern
- Post Regulators For Switching Supplies
Key features
- Maximum output current is 1.2A
- Range of operation input voltage: Max 15V
- Line regulation: 0.03% /V (typ.)
- Standby current: 2mA (typ.)
- Load regulation: 0.2% /A (typ.)
- Environment Temperature: -20℃ - 85℃
